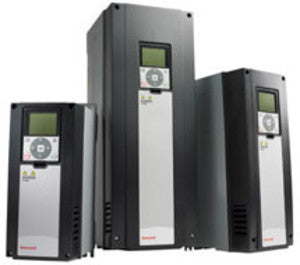

HONEYWELL HVFD3D3A0600G100C Variable Frequency Drive 60 hp 208-230 VAC NEMA 1

Product Description

The HONEYWELL HVFD3D3A0600G100C is a variable frequency drive designed to control electric motor speed. It supports both constant-torque and variable-torque loads. This drive operates on a nominal supply voltage of 208 to 230 VAC, delivering a power output of sixty horsepower. It is compliant with NEMA 1 standards for indoor use.

• Suitable for low to high horsepower pumps and fans.
• Features Ethernet and RS485 connectivity.
• Supports BACnet, Modbus, and JCI N2 protocols.

Product Highlights

The HONEYWELL HVFD3D3A0600G100C is ideal for various applications, providing reliable motor control in diverse settings.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: HVFD3D3A0600G100C

Technical Specifications

• Phase: Three Phase
• Type: Stand Alone
• Horsepower: 60 hp
• Supply Voltage: 208 VAC, 230 VAC
• Motor Rating: 0.75 to 250 hp
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs: 6 configurable D.I., 24 VDC= on, 0 VDC= off
• Analog Input: Two; 0-10V or 4-20 mA
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC
• Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485, Ethernet (RJ45)
• Operating Temperature: 14 to 104°F
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed, CE, RoHS
