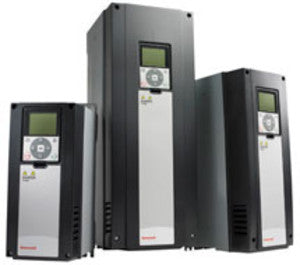

Honeywell HVFD3D3A0250G100C Variable Frequency Drive 25 hp

Product Description

The Honeywell HVFD3D3A0250G100C is a variable frequency drive (VFD) suitable for HVAC applications. This drive can handle both constant-torque and variable-torque loads, making it versatile for different setups.

• Supports Ethernet and RS485 connections.
• Compatible with BACnet, Modbus, and JCI N2 protocols.
• Offers adjustable acceleration and deceleration times.

Product Highlights

This drive is suitable for low to high horsepower pumps and fans, providing flexibility in system design.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: HVFD3D3A0250G100C
• Horsepower: 25 hp
• Input Voltage: 208 VAC, 230 VAC
• Phase: Three Phase
• Enclosure Rating: Nema 1
• Mounting Type: Stand Alone
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Digital Inputs: 6 configurable D.I., 24 VDC = on, 0 VDC = off
• Analog Input: Two; 0-10V or 4-20 mA voltage, input impedance 200 k, current impedance 250 k
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA @ 500 m max.
• Relay Outputs: Two SPDT
• Relay Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC
• Relay Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485 (Terminals), JCI N2, MODBUS, BACnet MS/TP, Ethernet (RJ45), BACnet/IP, Modbus/TCP, LON (Terminals): LonWorks with optional board
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Approvals: UL Listed File E190898, CE, RoHS
• Item Weight: 88.85 lbs
