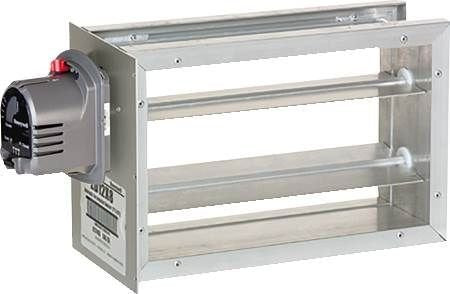

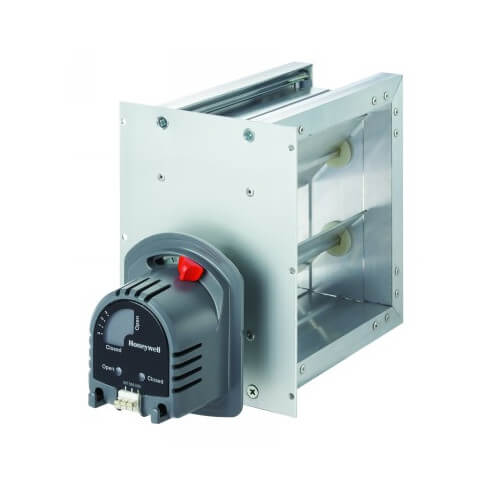

Honeywell Home ZD24X6TZ 24 in x 6 in TrueZONE Rectangular Parallel Blade Damper

Product Description

The Honeywell Home ZD24X6TZ damper aids in regulating air flow within HVAC systems, employing a 24-volt motor to manage air circulation optimally.

• Supports both heating and cooling systems.
• Incorporates fail-safe, normally open operation.
• Equipped with Kevlar gearing for enhanced durability.

Product Highlights

This rectangular parallel blade damper offers low leakage performance and durability thanks to its extruded aluminum frame and blades.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD24X6TZ

Technical Specifications

• Dimensions: 24 inches by 6 inches
• Motor: Spring return, 24-volt
• Application: Ideal for TrueZONE and other electronic zoning systems
• Features: Adjustable Range Stops, Mechanical visual position indicator, Compatible with conventional and networked zoning
• Installation Orientation: Flexible, can be mounted on either the bottom or the side of the duct
