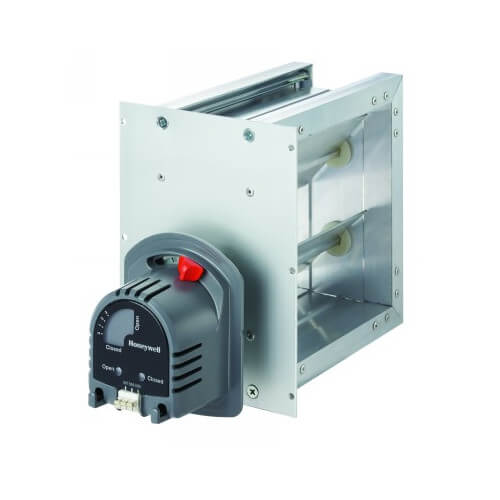

Honeywell Home ZD20X22TZ 20x22 TrueZONE Rectangular Parallel Blade Damper

Product Description

The Honeywell Home ZD20X22TZ is designed to optimize air control in heating, cooling, and ventilating systems. Ideal for applications requiring a power close and spring-open damper, it integrates seamlessly with TrueZONE and other electronic zoning systems.

• Robust construction with extruded aluminum frame and blades for low leakage.
• Kevlar gearing enhances durability, doubling the damper life.
• Simple, two-wire installation with fail-safe, normally open operation.

Product Highlights

The ZD20X22TZ features adjustable range stops and a mechanical visual indicator, ensuring reliable damper status at a glance. Compatible with both conventional and networked zoning systems, it supports various setups.

Product Information

Standard Information

• Motor: 24-volt spring-return configuration.
• Size: 20 inches by 22 inches.

Technical Specifications

• Brand: Honeywell Home
• MPN: ZD20X22TZ
• Material: Aluminum
• Motor side: 22 inches
• Installation: Can be mounted on either side or bottom of the duct.
