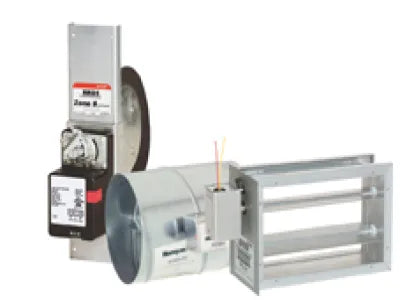

Honeywell Home ZD16X8TZ/U Rectangular Zone Damper 16 in H x 8 in W Replacement ZD168TZ

Product Description

The Honeywell Home ZD16X8TZ/U is a rectangular zone damper designed for effective air flow control in HVAC systems. This damper features a power close and spring open mechanism, primarily used when a normally-open damper is needed. It includes a 24-volt motor that handles circulating air with ease, typically utilized in TrueZONE and other electronic zoning systems.

• Power close and spring open operation.
• Mechanical visual position indicator for damper status.
• Easy two-wire installation with third wire option for LED indicator.

Product Highlights

This damper is built from solid extruded aluminum, ensuring durability and low leakage performance.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD16X8TZ/U

Technical Specifications

• Size: 16 inches H x 8 inches W
• Shape: Rectangle
• Material: Aluminum
• Voltage Rating: 24 VAC
• Amperage Rating: 0.32 A
• Domestic/Import: Import
• Temperature Rating: 32 to 120 degrees F
• Position Indicator Included: Yes
