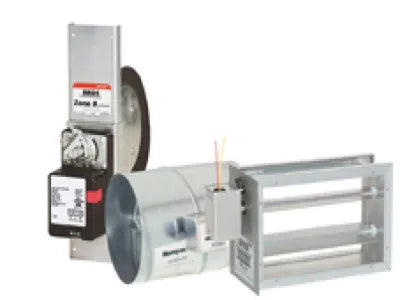

Honeywell Home ZD14X14TZ/U Rectangular Zone Dampers Power 14 x 14 in

Product Description

The Honeywell Home ZD14X14TZ/U is a rectangular zone damper designed for effective airflow control in HVAC systems. It measures fourteen inches by fourteen inches and operates on twenty-four volts. This damper features a reliable spring-return motor with a power-open function, making it ideal for TrueZONE and other electronic zoning systems.

• Easy-to-install with a two-wire setup
• Mechanical visual position indicator assists in setup and diagnostics
• Constructed with extruded aluminum for durability

Product Highlights

Efficient airflow control with adjustable range stops for consistent settings.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD14X14TZ/U

Technical Specifications

• Voltage Rating: 24 VAC
• Amperage Rating: 0.32 A
• Rotation Angle: 90 deg
• Material: Aluminum
• Timing: 30 sec power open / 10 sec spring return
• Blade Action: Parallel
• Leakage: Less than 1% at 0.5 in WC
• Temperature Rating: 40 to 140 deg F
