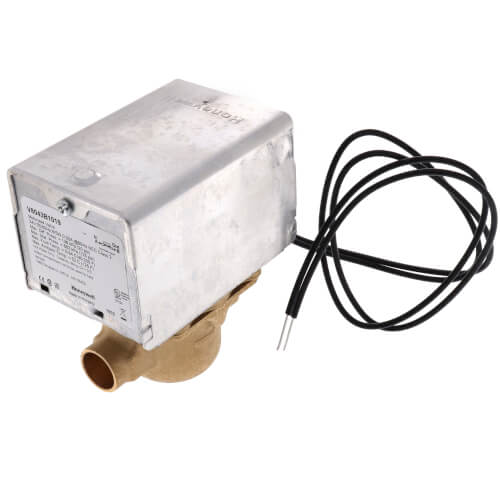

Honeywell Home V8043B1019 Zone Valve N.O. 24V 1/2 Inch Sweat 3.5 Cv

Product Description

The Honeywell Home V8043B1019 Zone Valve is a key component for controlling the flow of hot water in hydronic heating systems. Built with 24V low voltage operation, this valve features a 1/2 inch sweat connection suitable for numerous HVAC setups.

• 24V low voltage motorized valve
• 1/2 inch sweat connection
• 3.5 Cv flow capacity

Product Highlights

This zone valve is designed for easy installation and maintenance. It includes a spring return to close feature and operates without a manual opener, ensuring efficient functionality in heating systems.

Product Information

Standard Information

• Application: Zoning
• Connection Type: Sweat

Technical Specifications

• Voltage: 24V
• Pipe Size: 1/2 inch
• Body Pattern: Two-way, straight-through
• De-Energized Position: Normally Open
• Maximum Close-off Pressure: 20 psi
• Fluid Temperature Range: 40°F - 200°F
• Power Consumption: 7.7 VA
• Nominal Timing: 15 seconds
• Static Pressure: 125 psi
• Maximum Ambient Temperature: 125°F
• Valve Action: Spring return to close
• Electrical Connections: 18 inch leads
