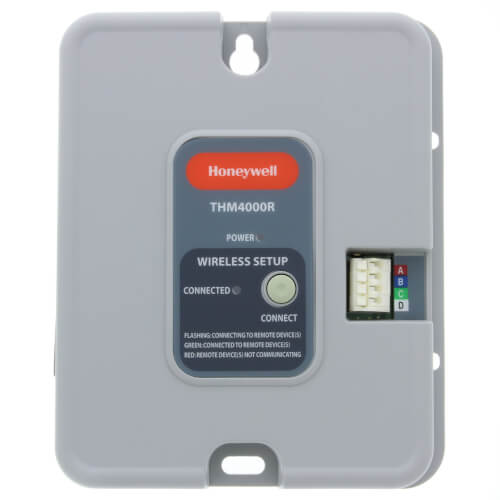

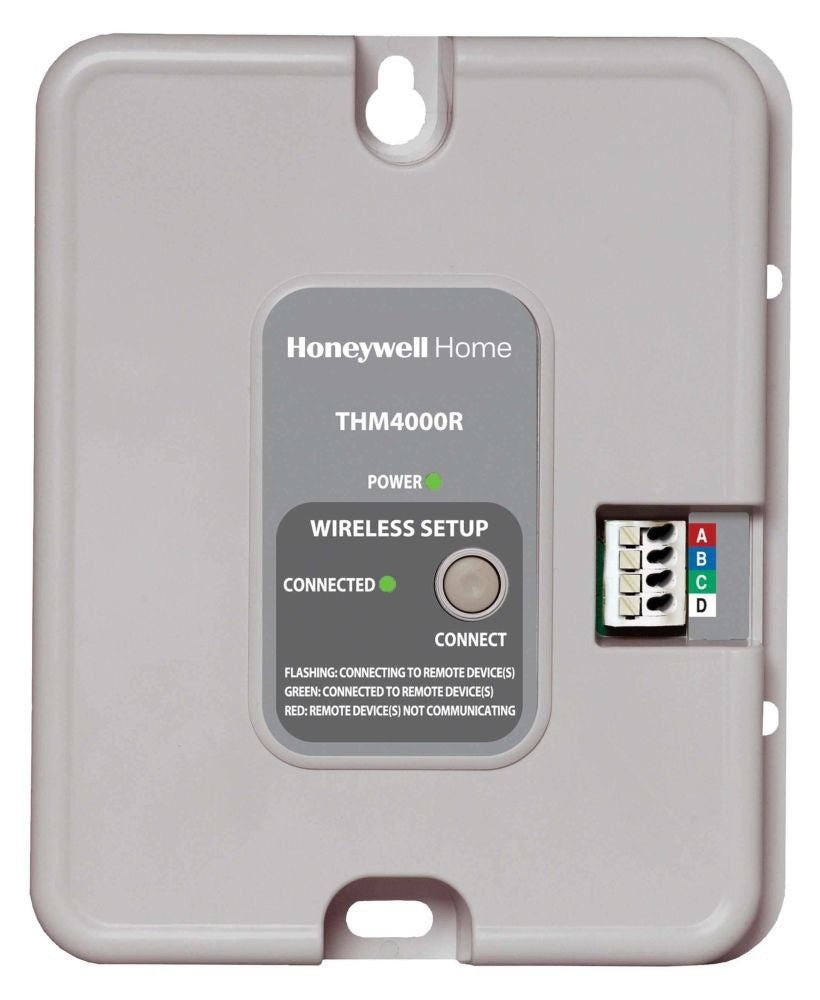

Resideo THM4000R1000 Thermostat Wireless Adapter Module (4-3/8 x 1-1/4 x 5-9/16 in)

Product Description

Resideo THM4000R1000 is a thermostat wireless adapter module that provides RedLINK wireless connectivity for RedLINK-enabled thermostats and TrueZONE systems. It interfaces with TrueSTEAM humidification systems and dehumidifiers such as the Honeywell TrueDRY. The adapter installs with four wires to HZ432 or HZ322 zone panels, supports up to 3 wireless zones on HZ322 and up to 4 on HZ432, and operates from -40 to 165 F.

• Provides RedLINK wireless connectivity for RedLINK-enabled thermostats and TrueZONE HZ322/HZ432 Series 2 panels (date code 0840 or greater).
• Supports up to 3 wireless zones on HZ322 and up to 4 wireless zones on HZ432; one adapter per zone control panel; install with four wires.
• Environmental ratings: operating temperature -40 to 165 F; humidity 5 to 95% RH (non-condensing); dimensions 4-3/8 in W x 1-1/4 in D x 5-9/16 in H.

Product Highlights

Adds RedLINK wireless thermostats to TrueZONE systems; supports up to four wireless zones; installs with four wires.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: THM4000R1000
