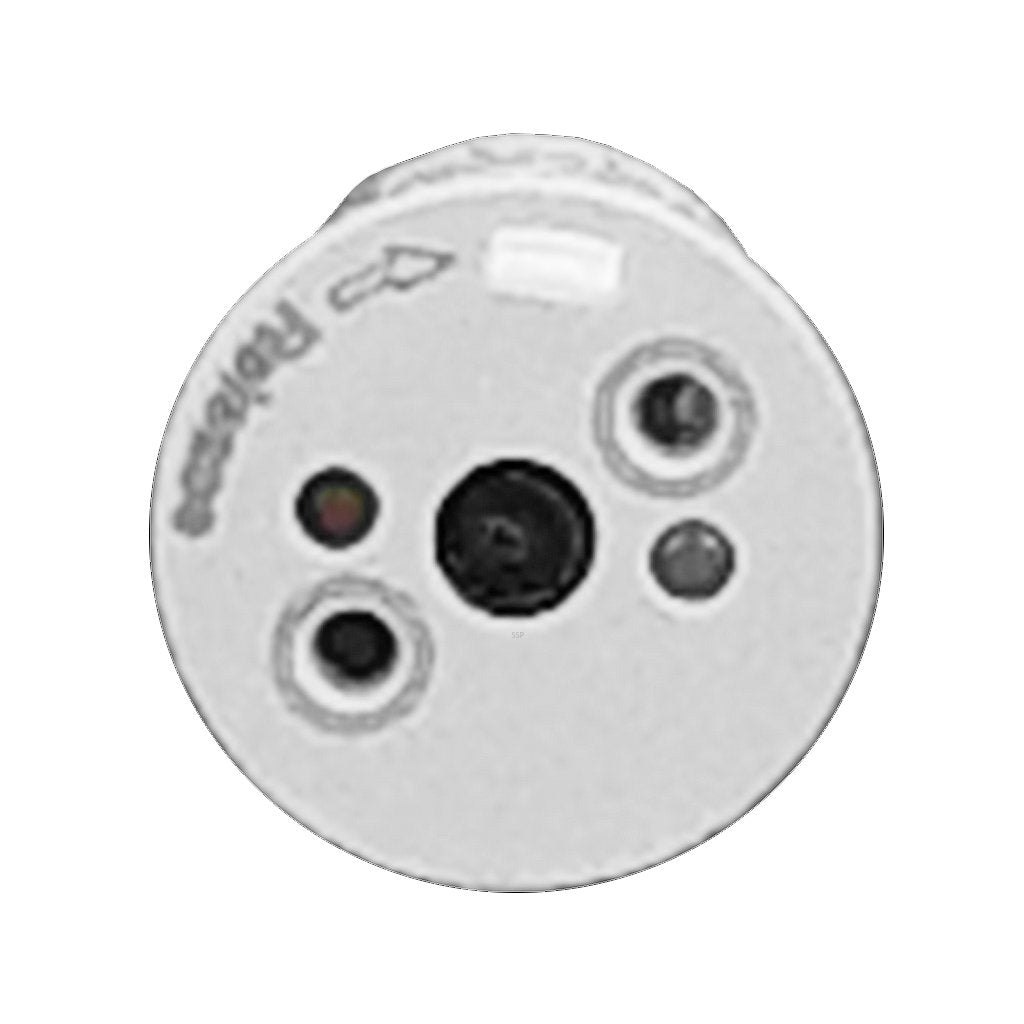

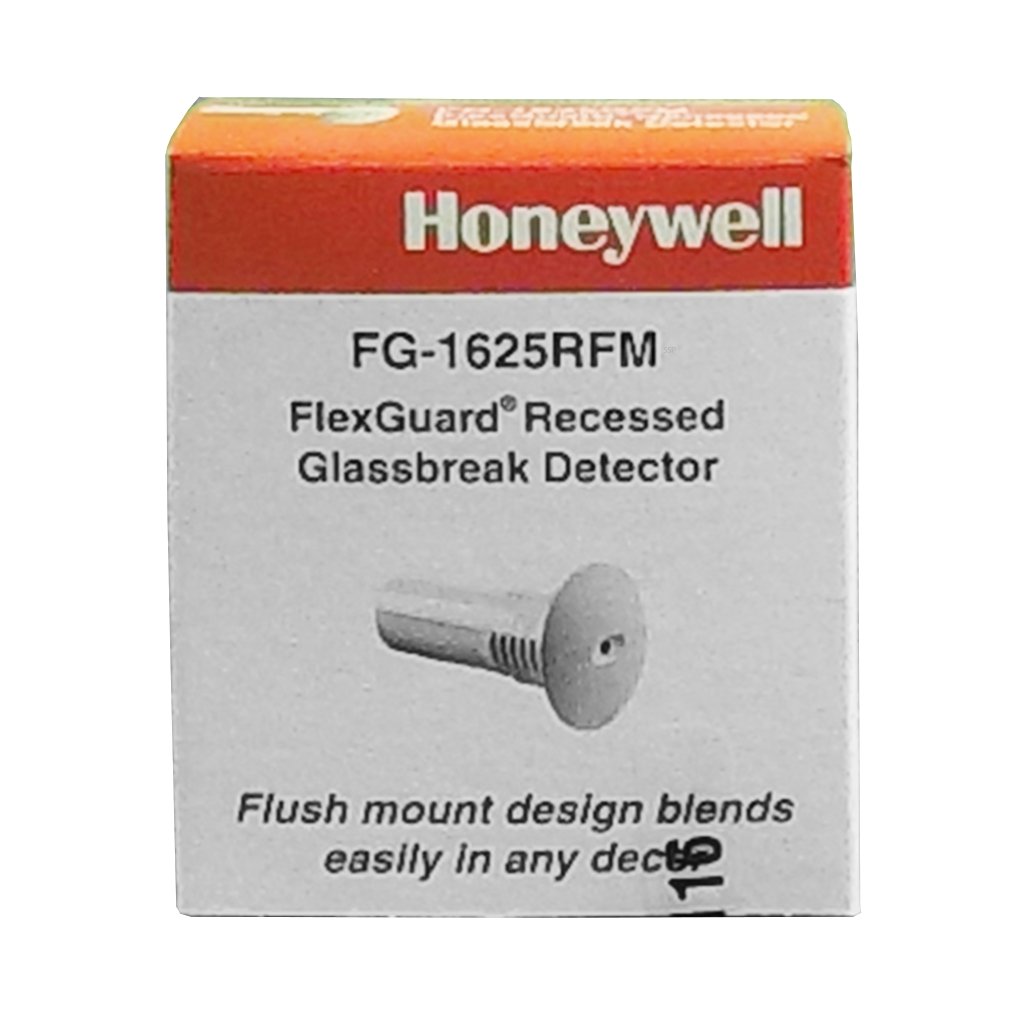

Honeywell Home FG1625RFM FlexGuard Round Flush-Mount Glassbreak Detector, 25 feet Range

Product Description

The Honeywell Home FG1625RFM Glassbreak Detector uses field proven FlexGuard technology to provide faster response and increased false alarm immunity. Designed for fast, easy installation, the adjustable sensitivity settings compensate for room acoustics. Optimum operation can be quickly verified using the FG701 Glassbreak Simulator.

• Sensitive to ultra low frequencies
• Selectable Sensitivity: Two DIP switches make it easy to set the sensitivity to match the acoustics of the room.
• Mount the Detector Anywhere: Flush mounts in any wall, or in the ceiling, with no minimum range and a maximum range of 25' (7.6 m) to the glass.

Product Highlights

The FG1625RFM glassbreak detector offers FlexGuard technology, adjustable sensitivity, and easy installation for comprehensive glass break detection.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer Part Number: FG1625RFM
• Country of Origin: Mexico

Technical Specifications

• Brand Name: Honeywell Home
• Manufacturer: Resideo
• Product Line: FlexGuard
• Product Name: FG1625RFM Audio Detector
• Product Type: Glass Break Detector
• Product Model: FG1625RFM
• ADI Part Number: CK-FG1625RFM
• Application/Usage: Security System Sensors
• Manufacturer Part Number: FG1625RFM
• Form Factor: Ceiling Mount,Flush MOunt,Wall Mount
• Small Front Cover: 1.8" (45mm) diameter
• Large Front Cover: 2.5" (63.5mm) diameter
• Wall Sleeve: For installation in 1.0" (25mm) hole. Maximum depth, without wire 2.6" (66mm)
• Power Requirements: 8 - 16VDC, 5mA typical at 12VDC; 12mA max (Latched LED) AC ripple: 4V peak to peak at the normal 12VDC RFI Immunity 30V/m, 10 MHz -1000 MHz
• Range: 25' (7.6 m) maximum, omnidirectional. Range is adjustable; no minimum range
• Alarm Relay: FG-1625: Form A, 90mA max, 16VDC max
• Alarm Duration: Five seconds (unaffected by alarm LED latching)
• ESD Immunity: 10kV discharges of either polarity to exposed surfaces
• Operating Temperature: 14° to 122° F (-10° to 50° C)
• Storage Temperature: -4° to 122° F (-20° to 50° C)
