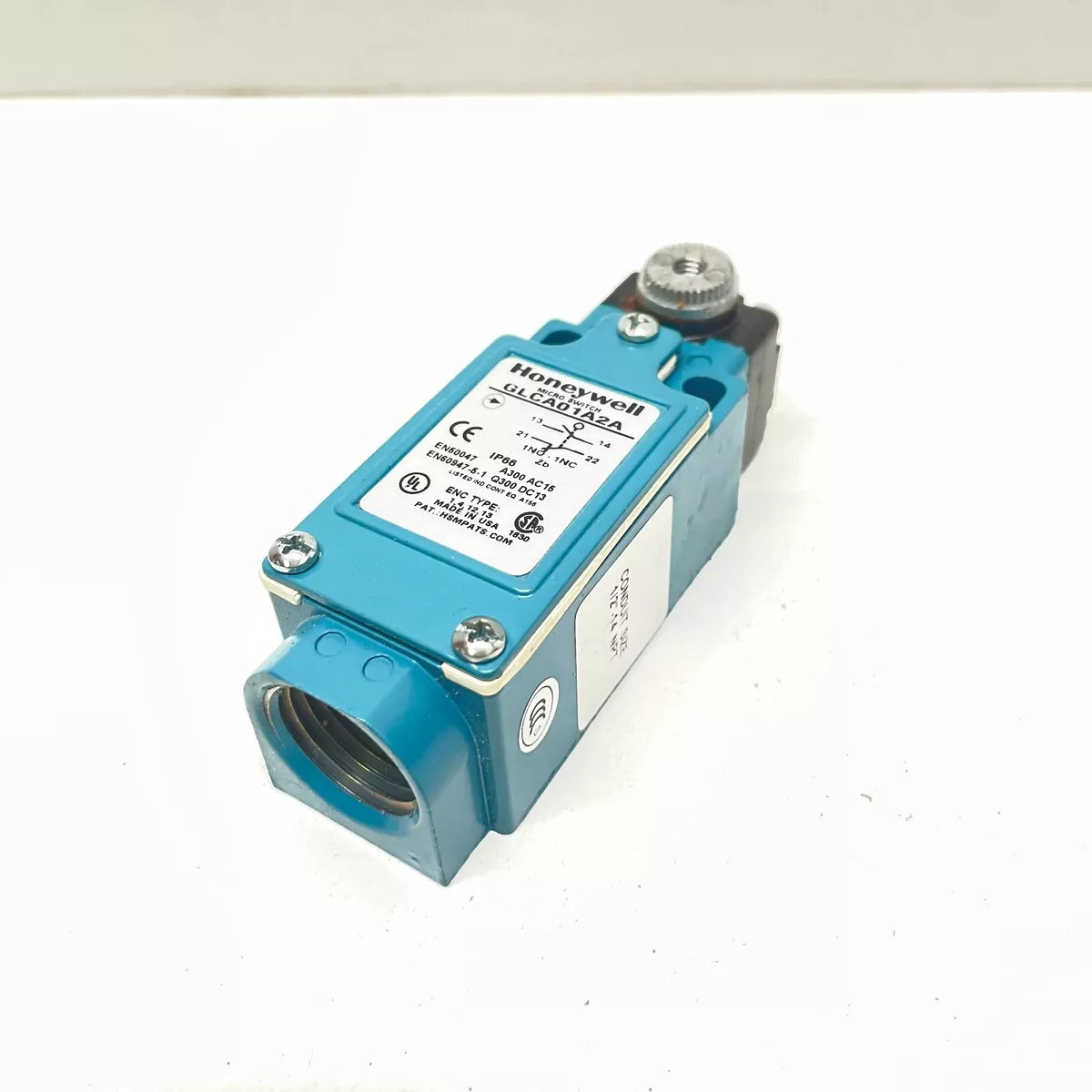

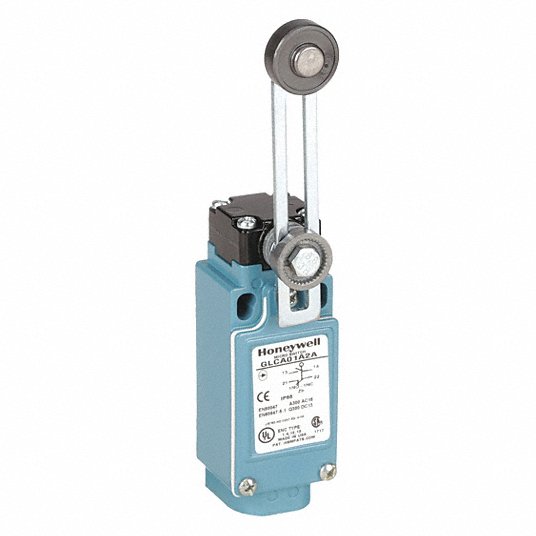

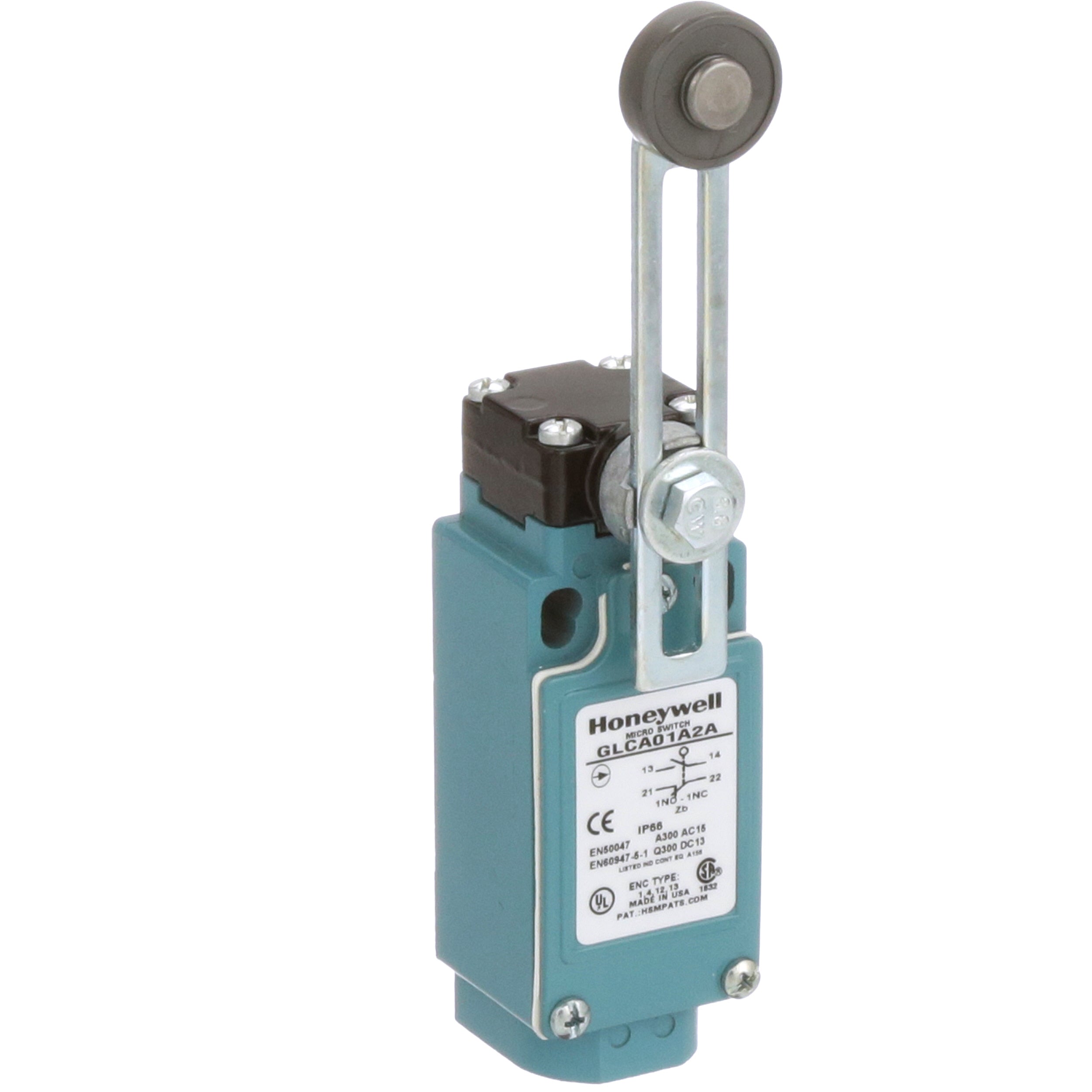

HONEYWELL GLCA01A2A Limit Switch

Product Description

The HONEYWELL GLCA01A2A is a limit switch designed for global applications. It conforms to IEC standards, making it suitable for use in multiple countries. This switch supports various conduit sizes and features modular construction, which helps in lowering maintenance costs.

This limit switch finds its utility in machine tools, material handling systems, packaging machines, and other equipment. Installation is straightforward, and it offers a range of basic switch options along with different actuators.

• Compliant with IEC standards for global use
• Modular design for reduced maintenance costs
• Compatible with direct PLC interfaces

Product Highlights

The HONEYWELL GLCA01A2A limit switch is a reliable choice for industrial applications, ensuring ease of installation and versatility.

Product Information

Standard Information

• Country of Origin: US
• UPC: 6.61191E+11

Technical Specifications

• Series: GLC
• Contact Configuration: 1NO-1NC SPDT
• Actuator: Adjustable side rotary with nylon roller
• Voltage Rating: 300 VAC, 250 VDC
• Current Rating: 10 A
• Enclosure: NEMA 1/4/12/13/IP67
• Operating Temperature: -40 to 85 degrees C
• Operating Cycles: 10000000 cycles
• Connection Type: 1/2-14 NPT
• Operating Force: 0.12 N-m (1.10 in-lb)
• Pretravel: 26 degrees
• Overtravel: 49 degrees
• Differential Travel: 11.5 degrees
• Housing Style: EN50047
