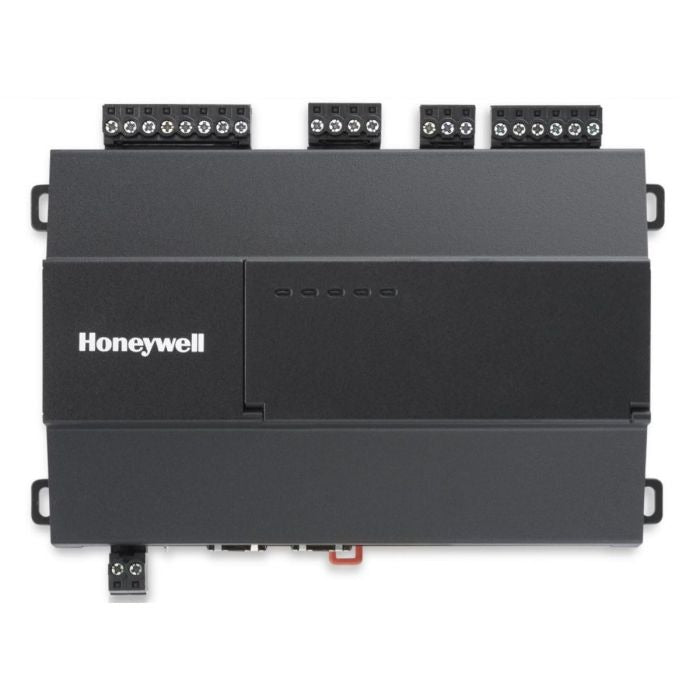

Honeywell EDGE-10 CIPer10 controller 24 VAC/DC (10 IO)

Product Description

Honeywell EDGE-10 is a CIPer10 field equipment controller that provides 10 I/O and includes 5 universal inputs, 2 analog outputs, and 3 digital outputs for HVAC applications. It includes one RS-485 serial port, two 10/100 Ethernet ports, and USB connectivity and supports BACnet IP, BACnet MS/TP, Modbus, and SNMP over an IP network. The controller is programmable, DIN rail mountable, and operates on 24 VAC/DC power.

• Provides 10 I/O: 5 universal inputs, 2 analog outputs, and 3 digital outputs; programmable controller for HVAC zoning and equipment control
• Network and ports: 1 RS-485 serial port, 2 10/100 Ethernet ports, USB; supports BACnet IP, BACnet MS/TP, Modbus, and SNMP
• Mounting and power: DIN rail mountable; power supply 24 VAC/DC; integrates with WEBs-N4 software and supports daisy-chaining

Product Highlights

Programmable 10-point HVAC field controller with dual 10/100 Ethernet, RS-485, BACnet/Modbus/SNMP support, DIN rail mount, and 24 VAC/DC power

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: EDGE-10
