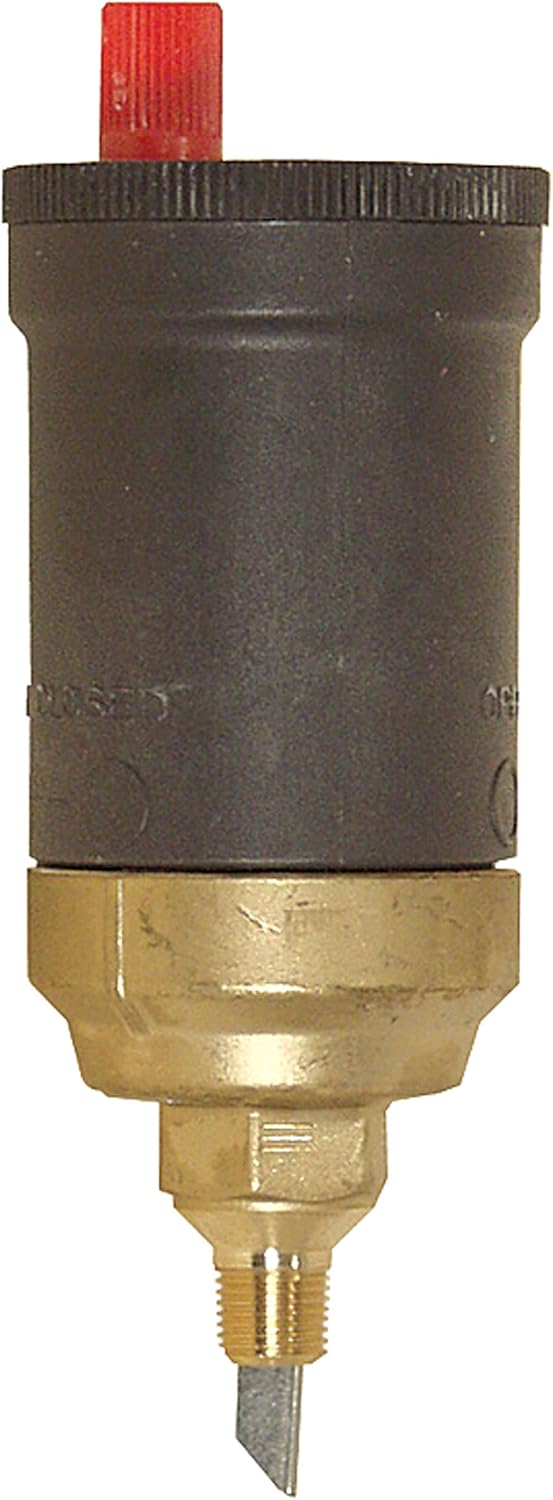

Honeywell EA122A1002 Automatic Air Vent 115 Volts 1/8 Inch MNPT 90 psi

Product Description

The Honeywell EA122A1002 Automatic Air Vent is designed to purge air from high pressure mains and equipment in hot or cold closed water systems. This air vent is suitable for numerous heating system applications.

• Automatic air vent
• Thermoplastic body and internal components
• Easy to service with removable float and valve assembly

Product Highlights

This air vent helps maintain efficient operation by removing trapped air, preventing noise and system inefficiency. It features a built-in vacuum breaker and is suitable for water systems with light concentrations of propylene glycol, mineral oils, or petroleum-based oils. Not for use in steam systems.

Product Information

Standard Information

• Brand: Honeywell
• Model: EA122A1002

Technical Specifications

• Connection Type: MNPT
• Dimensions: 1-7/8 inches Diameter x 5-1/4 inches Length
• Material: Thermoplastic
• Nominal Size: 1/8 inches
• Temperature Rating: 212 degrees Fahrenheit
• Working Pressure: 90 psi
• Voltage: 115 Volts
• Capacity: 117 Cubic Feet
