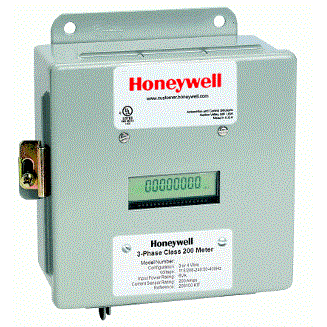

Honeywell E50-480800-R01KIT Class 5000 Advanced kWh Demand Meter

Product Description

The Honeywell E50-480800-R01KIT is a Class 5000 advanced kWh demand meter designed for three-phase systems with a voltage rating of 480V and a maximum current of 800A. This device is built for durability and functionality, featuring dual-protocol communication with RS-485 and Ethernet, along with optional telephone modem support for enhanced connectivity. Its NEMA 4X enclosure allows for outdoor installation, ensuring protection against harsh conditions. The device also includes two pulse outputs and two external meter inputs, enabling comprehensive monitoring of water, gas, BTU, and steam consumption.

• Designed for three-phase systems with a maximum of 800A at 480V.
• Enhanced communication options with RS-485 and Ethernet support.
• Includes pulse outputs and external meter inputs for versatile monitoring.

Product Highlights

The Honeywell E50-480800-R01KIT is optimized for accurate energy demand measurement in industrial applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: E50-480800-R01KIT

Technical Specifications

• Model: P1904474
• Voltage: 480 VAC
• Current: 800 A
• Phases: Three Phase
• Enclosure: NEMA 4X
• Communication Protocols: EZ-7, EZ-7 Ethernet, Modbus RTU, Modbus TCP/IP, BACnet MS/TP, BACnet IP, LonWorks TP/FT-10
• Current Sensor Type: Split-Core
• Application: 3-Phase kWh/Demand Meter
