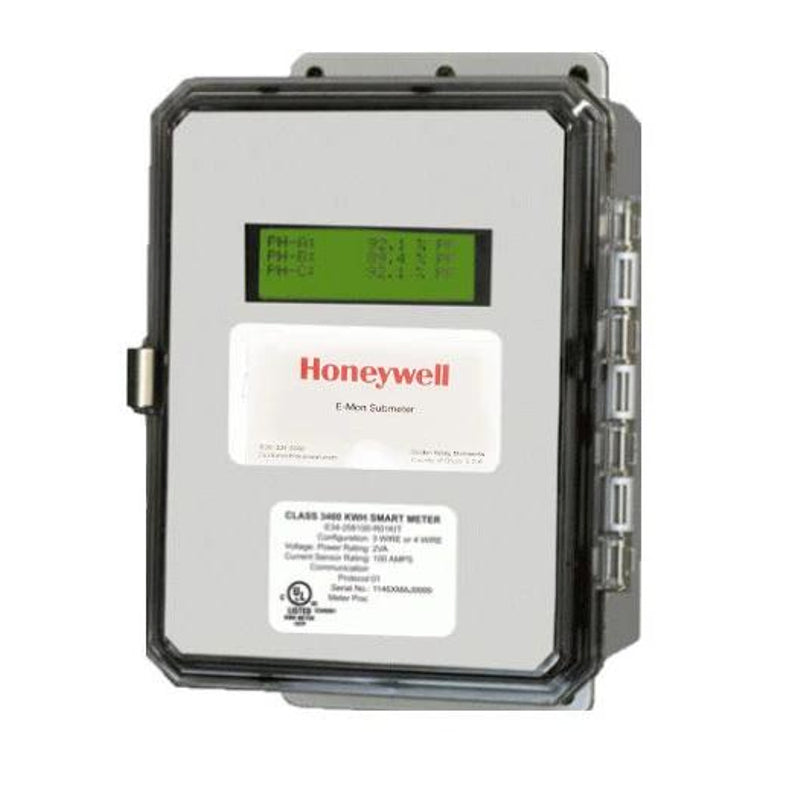

Honeywell E32-2081600JBACKIT E-Mon Class 3200 Smart Meter

Product Description

The Honeywell E-Mon Class 3200 Smart Meter E322081600JBACKIT is designed for three-phase applications with a voltage of two hundred eight VAC. It has a current rating of sixteen hundred Amps and is ideal for energy monitoring. The meter features a robust industrial-grade JIC steel enclosure for durability and long-lasting performance. Utilizing the BACnet MSTP communication protocol, it provides comprehensive energy data, including kWh, power factor, demand, volts, and amps per phase.

• Three-phase kWh/demand meter
• Advanced 4-line display for easy data reading
• Includes three split-core current sensors with two-volt output

Product Highlights

The Honeywell E-Mon Class 3200 is suitable for monitoring energy usage in commercial settings. It can handle a significant load while delivering precise energy measurement data.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand/Series: E-Mon Class 3200

Technical Specifications

• MPN: E322081600JBACKIT
• Amp Rating: 1600 A
• Application: 3-Phase kWh/Demand Meter
• Enclosure Type: Industrial Grade JIC Steel
• Included Options: 3 Split-Core Current Sensor with 2 V Output
• Type: RS485 Smart Meter
• Input Voltage: 208 VAC
