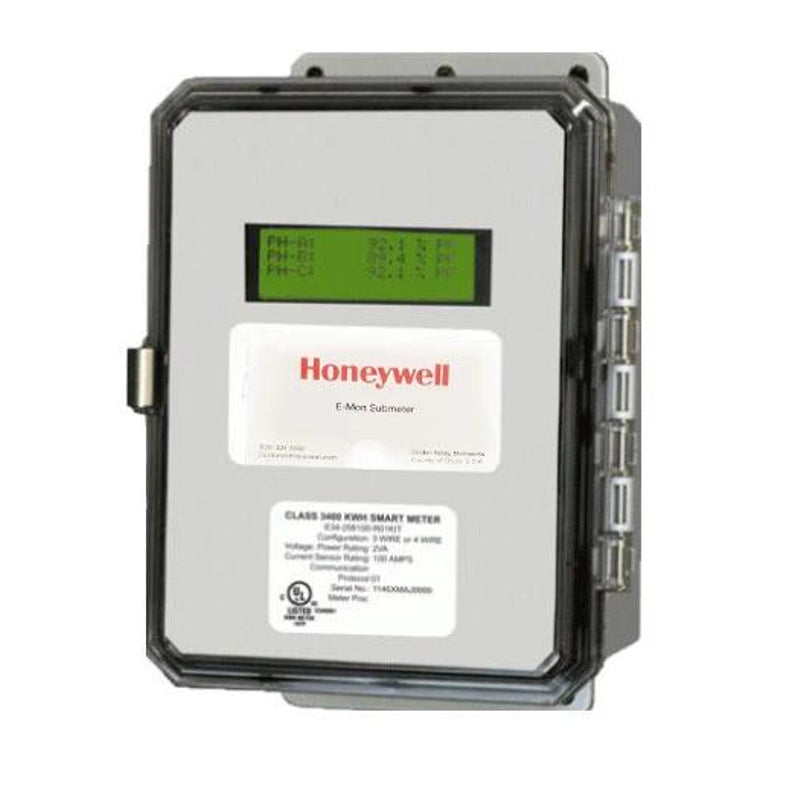

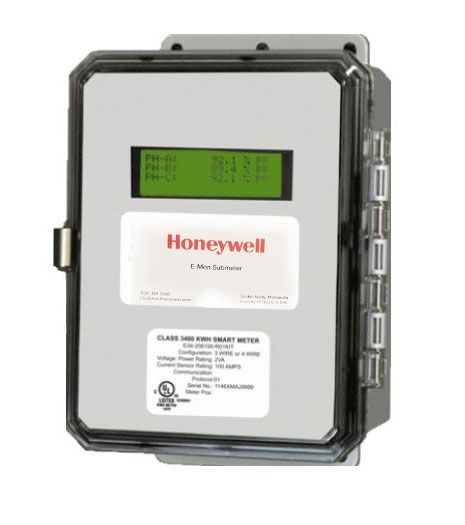

Honeywell E32-208100-REZ7KIT Class 3200 Smart Meter

Product Description

The Honeywell E32-208100-REZ7KIT is a Class 3200 smart meter designed for precise energy monitoring. This device works with voltages of one hundred twenty to two hundred eight and two hundred forty volts and handles a current of one hundred amps. The product showcases a four-line display for real-time energy analysis, displaying metrics such as kWh, kWh/Demand, power factor, and load levels. It supports the EZ-7 protocol and comes with three split-core current sensors for accurate data collection.

• Designed for 120/208-240V voltage ranges.
• Features RS-485 communication for integration.
• NEMA 4X enclosure suitable for outdoor conditions.

Product Highlights

This smart meter is ideal for applications where energy management is essential, especially in industrial and commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: E32-208100-REZ7KIT
• Model: P1904478
• Voltage: 208 VAC
• Amp Rating: 100 A
• Application: 3-Phase kWh/Demand Meter
• Enclosure Type: NEMA 4X Polycarbonate Raintight Outdoor
• Included Options: 3 Split-Core Current Sensor with 2 V Output
• Type: RS485 Smart Meter
