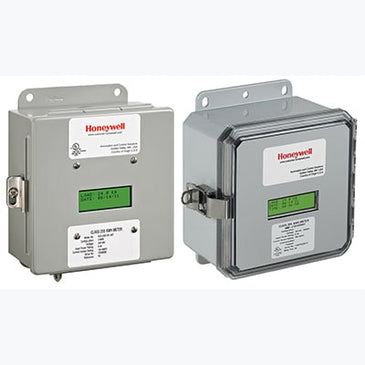

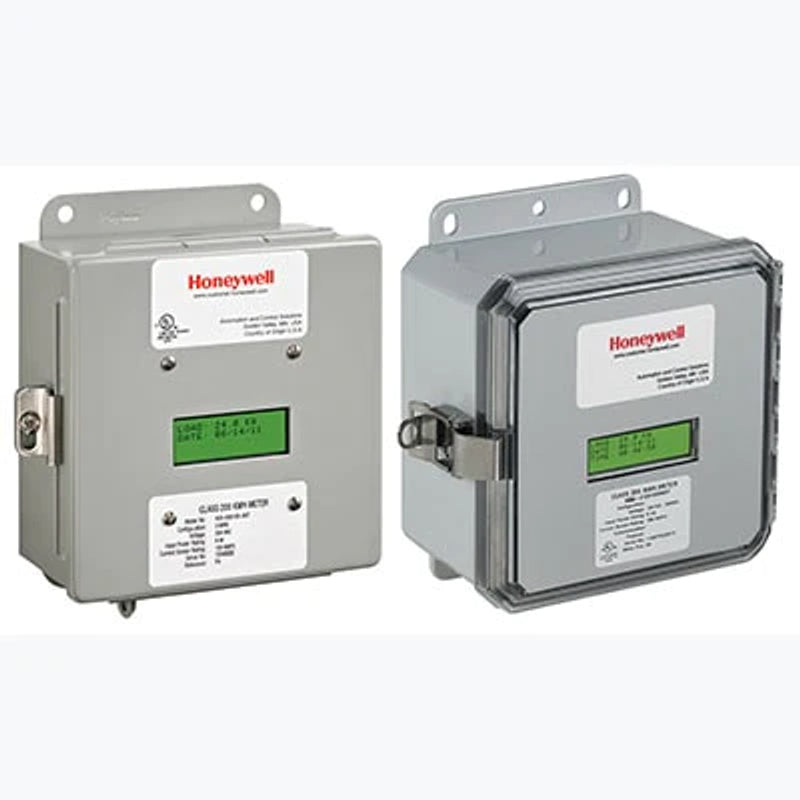

HONEYWELL E20-480100-MKIT Class 2000 kWh Meter

Product Description

The Honeywell E20-480100-MKIT is a Class 2000 kWh meter. It is designed for monitoring energy consumption in three-phase systems. It operates at 480 VAC and has a rating of one hundred amps. The unit includes an MMU enclosure and three split-core current sensors for precise measurement.

• Designed for three-phase systems with a 480 VAC voltage rating.
• Includes three split-core current sensors for accurate measurement.
• Features a pulse output for remote energy monitoring.

Product Highlights

This meter is suitable for energy management applications. It has a direct-read LCD display showing cumulative kWh and real-time kW load.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: E-Mon Class 2000

Technical Specifications

• MPN: E20-480100-MKIT
• Amp Rating: 100 A
• Application: 3-Phase kWh Meter
• Enclosure Type: MMU
• Included Options: 3 Split-Core Current Sensors
• Type: Pulse Meter
• Voltage: 480 VAC
• Weight: 2.54 lbs
