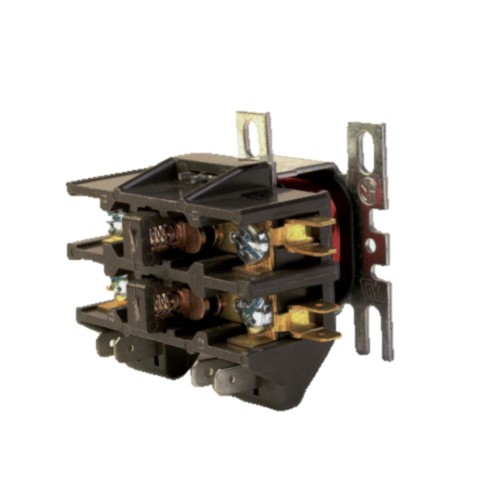

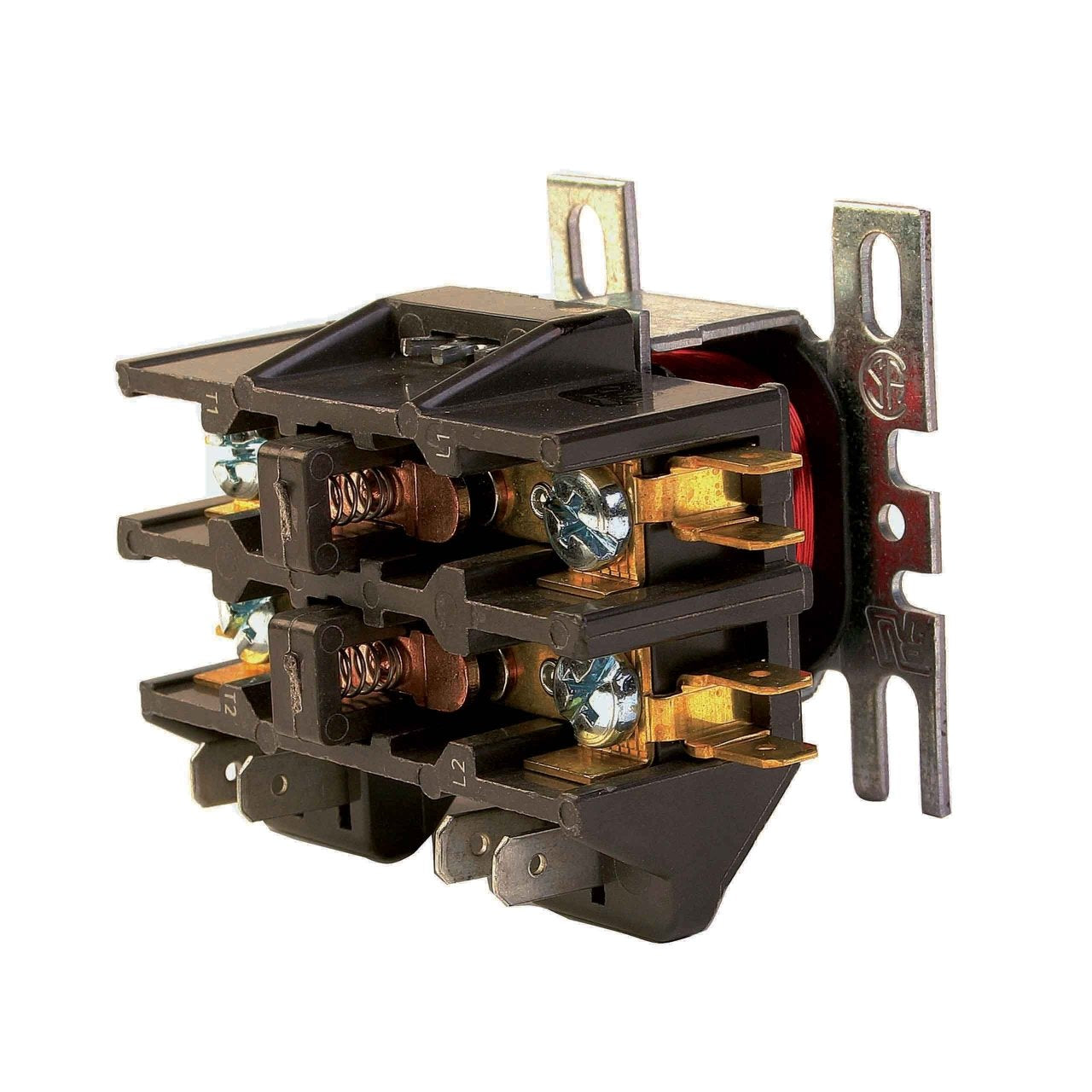

Honeywell DPL2030B1003 Definite Purpose Contactor

Product Description

The Honeywell DPL2030B1003 is a 2-pole definite purpose contactor designed to switch induction motors in HVAC and electrical control systems. This unit is electromagnetically operated and features silver cadmium oxide contacts, making it suitable for A2L refrigerants. It is engineered to withstand both vibration and temperature variations.

• 2-pole, DPST switch action
• Compliant with A2L refrigerants
• Designed for starting induction motors

Product Highlights

This contactor is ideal for HVAC applications where reliability and performance are essential. Its robust construction ensures efficient operation in various conditions.

Product Information

Standard Information

• Application: Economy Definite Purpose Contactor
• Number of Poles: 2 Poles

Technical Specifications

• Coil Rating Voltage: 110-120VAC 50/60Hz
• Operating Frequency: 50 Hz, 60 Hz
• Switch Action: DPST
• Electrical Connection Type: Slotted & hex head screw w/ quad .250'' quick connect terminals
• Coil Connection Type: Quick Connect
• Coil Connection Size: 1/4 in
• Ambient Operating Temperature (Min): -13 °F, -25 °C
• Ambient Operating Temperature (Max): 158 °F, 70 °C
• Product Height: 2.3 in
• Product Width: 3.2 in
