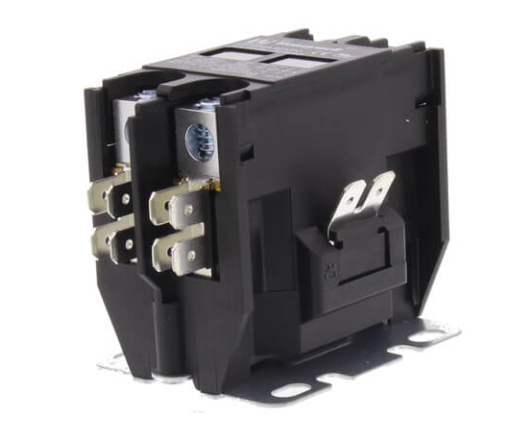

Honeywell DPL2030A5013 PowerPro Definite Purpose Contactor 24 Vac

Product Description

The Honeywell DPL2030A5013 is an electromagnetically-operated definite purpose contactor. It is used for starting induction motors. This device has two poles and works with a twenty-four volt AC power supply. It meets the standards for A2L refrigerants and is compliant with ARI-780 for high-performance operation.

• Compliant with A2L refrigerants
• Meets ARI-780 standards for operational reliability
• Silver cadmium oxide contacts for durability

Product Highlights

This contactor is built for durability and ease of use. It offers multiple mounting options and a compact design for better wiring management.

Product Information

Standard Information

• Application: PowerPro Definite Purpose Contactor
• Coil Rating Voltage: 24 V ac

Technical Specifications

• Number of Poles: 2 Poles
• Operating Frequency: 50 Hz, 60 Hz
• Switch Action: DPST
• Minimum Operating Temperature: -13 °F, -25 °C
• Maximum Operating Temperature: 158 °F, 70 °C
• Product Height: 2.3 inches
• Product Width: 3.2 inches
• Electrical Connection Type: Box lug with quick connect terminals
