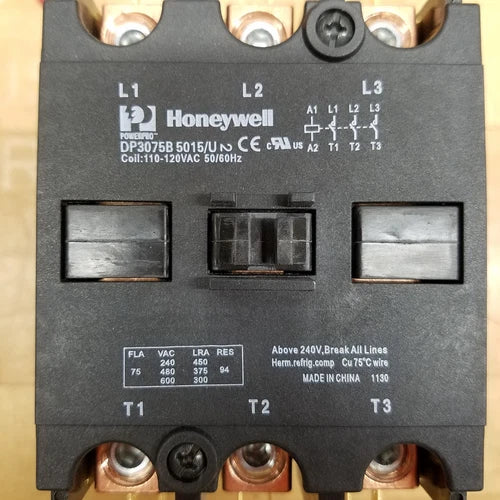

HONEYWELL DP3075B5015/U Definite Purpose Contactor

Product Description

The HONEYWELL DP3075B5015/U is a definite purpose contactor designed for switching induction motors. This contactor effectively meets the needs of various applications requiring reliable switching mechanisms.

• 3-pole configuration
• Coil voltage rating of 120V
• Maximum load of 75A (AFL) and 95A (Resistive)

Product Highlights

The HONEYWELL DP3075B5015/U is built for performance and reliability in a variety of industrial applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: DP3075B5015/U

Technical Specifications

• Product Line: Deluxe PowerPro DP Series
• Number of Poles: 3
• Maximum Load - AFL: 75 Amps
• Maximum Load - Resistive: 95 Amps
• Coil Voltage: 120 V
• Product Height: 4 19/48 Inches
• Product Width: 5 Inches
• Product Length: 3 17/24 Inches
• Product Weight: 3.55 Pounds
• UL Listed: Yes
• CSA Listed: Yes
• Parts Warranty: 1 Year
• Current Type: AC
• Mounting Style: Bracket Mount
• Current Rating: 75 A
• Contact Configuration: 3PST-NO
• Depth: 3.7 Inches
