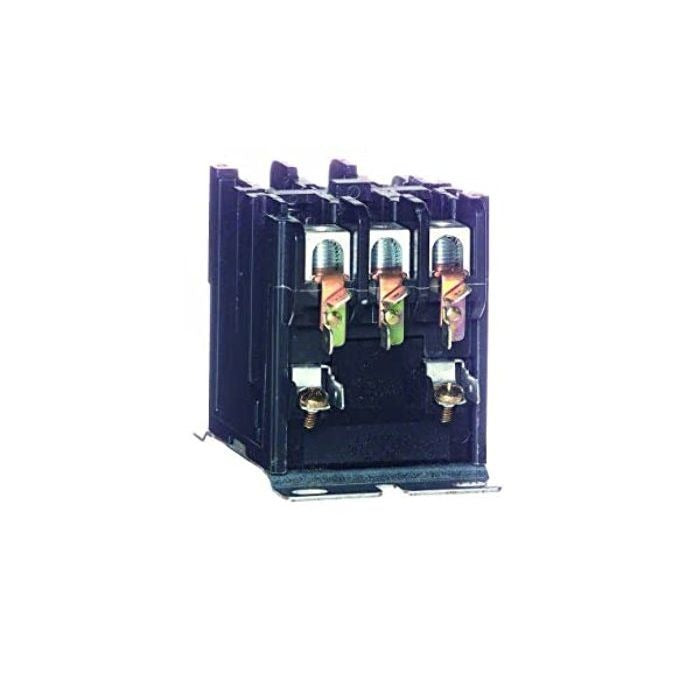

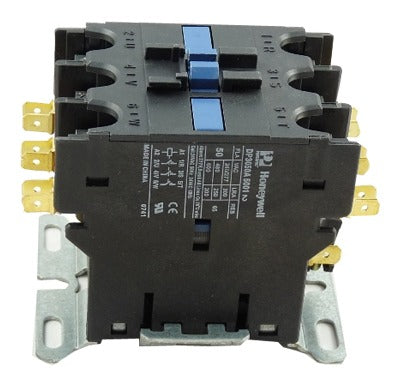

Honeywell DP3060C5008 Definite purpose contactor 60A (3 Pole) DP3060C5008

Product Description

The Honeywell DP3060C5008 is a definite purpose 3-pole contactor rated 60 A with a 208/240 VAC coil. It provides electromagnetic switching for motor starting and HVAC loads, features shrouded coils for environmental protection, and uses lug main connections with 1/4 in. quick-connects and #6 screw coil contacts. The unit measures 3.1 in x 3.62 in x 2.4 in and operates from -4 F to 149 F.

• Rated 60 A across three poles with coil voltage 208/240 VAC and coil frequency 60 Hz
• Contact electrical ratings: 60 A at 240/277 VAC, 480 VAC, and 600 VAC (AFL); main connections use lug connectors
• Compact dimensions (3.1 in x 3.62 in x 2.4 in), multiple mounting holes/slots, and shrouded coil construction on 3-pole models

Product Highlights

Three-pole definite purpose contactor, 60 A rating, 208/240 VAC coil, lug main connections, shrouded coil protection

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DP3060C5008
