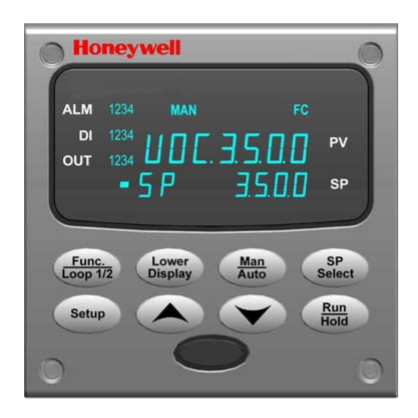

Honeywell DC3500CE2A00211100 Universal Digital Controller

Product Description

The Honeywell DC3500CE2A00211100 is a microprocessor-based digital controller that supports the monitoring and control of process variables. It features a dual-line LCD that displays the process variable and setpoint simultaneously. This controller accepts signals from various sensors, including thermocouples and RTDs, through its universal analog inputs.

• Features universal analog inputs for accepting various sensor signals.
• Equipped with alarm outputs for indicating abnormal conditions.
• Communicates via Modbus RTU protocol over RS-485 or Ethernet.

Product Highlights

The Honeywell DC3500CE2A00211100 is ideal for applications requiring precise control and monitoring. Its robust alarm system alerts users to abnormal conditions, ensuring safety and efficiency in operations.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: DC3500CE2A00211100

Technical Specifications

• Input Voltage: 24 VAC/VDC
• Accuracy: 0.10%
• Scanning Rate: 166ms
• Analog Outputs: Up to 3
• Digital Outputs: Up to 5
• Digital Inputs: 4
• Communication Protocol: Ethernet or RS-485 Modbus RTU
• Enclosure Rating: NEMA4X and IP66
