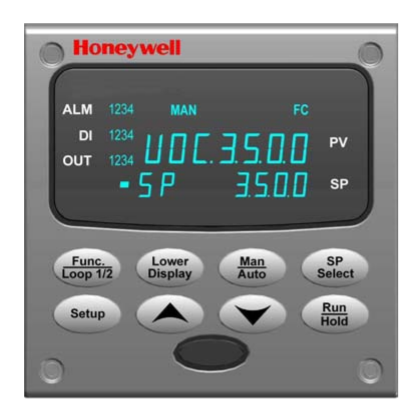

Honeywell DC3500001000220000 Universal Digital Controller

Product Description

The Honeywell DC3500001000220000 Universal Digital Controller is a versatile device designed for control applications. It features a 1/4 DIN size and an infrared configuration interface. Key functionalities include three universal analog inputs and support for two control loops. The controller is equipped with Accutune III tuning technology, which employs fuzzy logic for effective overshoot suppression.

• Three universal analog inputs, configurable for flexibility.
• Communication options via Ethernet or RS-485.
• Front face protection compliant with NEMA4X and IP66 standards.

Product Highlights

Engineered for trade professionals, this device provides efficient control for various systems. Its robust communication interfaces and customizable inputs ensure adaptability in diverse applications.

Product Information

Standard Information

• MPN: DC3500001000220000
• Brand: Honeywell

Technical Specifications

• Analog Inputs: 3 Universal (configurable to 1 Universal and 4 High Level Inputs)
• Accuracy: 0.10%
• Scanning Rate: 166 ms
• Analog Outputs: Up to 3
• Digital Outputs: Up to 5
• Digital Inputs: 4
• Communication: Ethernet or RS-485
• Control Loops: Cascade or 2 Loops
• Configuration: Infrared PC & Pocket PC
• Front Face Protection: NEMA4X and IP66
• Size: 1/4 DIN
