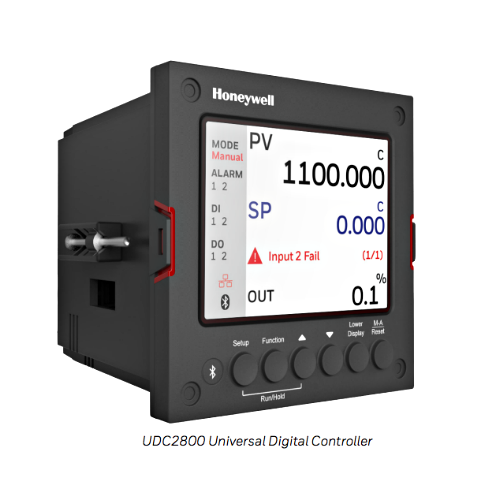

HONEYWELL DC2800TE0S02001000 Universal Digital Controller

Product Description

The Honeywell DC2800TE0S02001000 is a digital controller designed for process control applications. It supports a universal input that accepts thermocouple (TC), resistance temperature detector (RTD), millivolt (mV), and direct current (DC) signals. This includes inputs ranging from 0 to 5 volts, 1 to 5 volts, 0 to 10 volts, 0 to 20 milliamps, and 4 to 20 milliamps. The controller features an open collector transistor output along with an E-M relay output rated at five amps. Additionally, it includes an alarm with a five amp form C relay. This device comes equipped with standard software and has received approvals from CE, UL, and CSA.

• Accepts TC, RTD, mV, 0-5V, 1-5V, 0-10V, 0-20mA, and 4-20mA inputs.
• Features open collector transistor and E-M relay outputs.
• Approved by CE, UL, and CSA.

Product Highlights

The Honeywell DC2800TE0S02001000 controller provides versatile input options, suitable for various control applications.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: DC2800TE0S02001000

Technical Specifications

• Input Types: TC, RTD, mV, 0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA
• Output #1: Open Collector Transistor Output
• Output #2: E-M Relay (5 Amp Form C)
• Alarm: 5 Amp Form C Relay
• Software: Standard Software
• Approvals: CE, UL, and CSA
