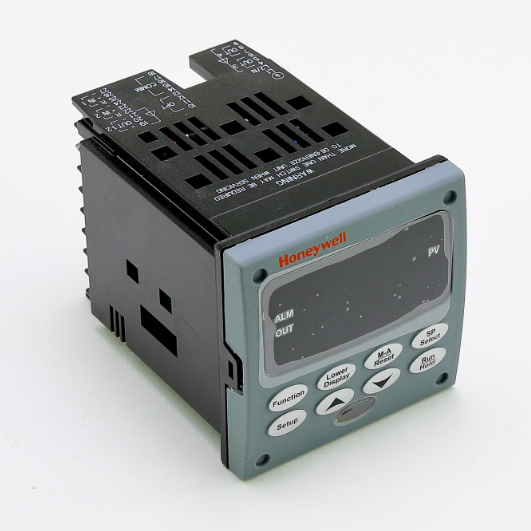

HONEYWELL DC2500C00A00110000 Universal Digital Controller

Product Description

The Honeywell DC2500C00A00110000 is a universal digital controller that effectively manages and monitors temperature and various other parameters. This controller incorporates microprocessor technology and features a dual-line LCD for easy setup and operation. It supports a wide variety of thermocouple types, including J, K, T, E, R, S, B, C, N, and L (JIS), along with RTD inputs. The operating voltage ranges from one hundred to two hundred forty VAC, making it suitable for multiple applications such as furnaces, ovens, environmental chambers, packaging machinery, and plastic processing machines.

• Features one universal input and one high-level input.
• Includes two analog outputs and four relay contact outputs.
• Provides NEMA4X and IP66 front face protection.

Product Highlights

This controller is designed for reliable performance in demanding environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: DC2500C00A00110000

Technical Specifications

• Input Voltage: 100-240 VAC
• Operating Temperature: -10 to 55 degrees Celsius
• Dimensions: 96mm x 96mm x 150mm
• Accuracy: 0.25%
• Scanning Rate: Fast scanning rate (166ms)
