Honeywell DB9X71 Single Cylinder Deadbolt Oil Rubbed Bronze

Product Description

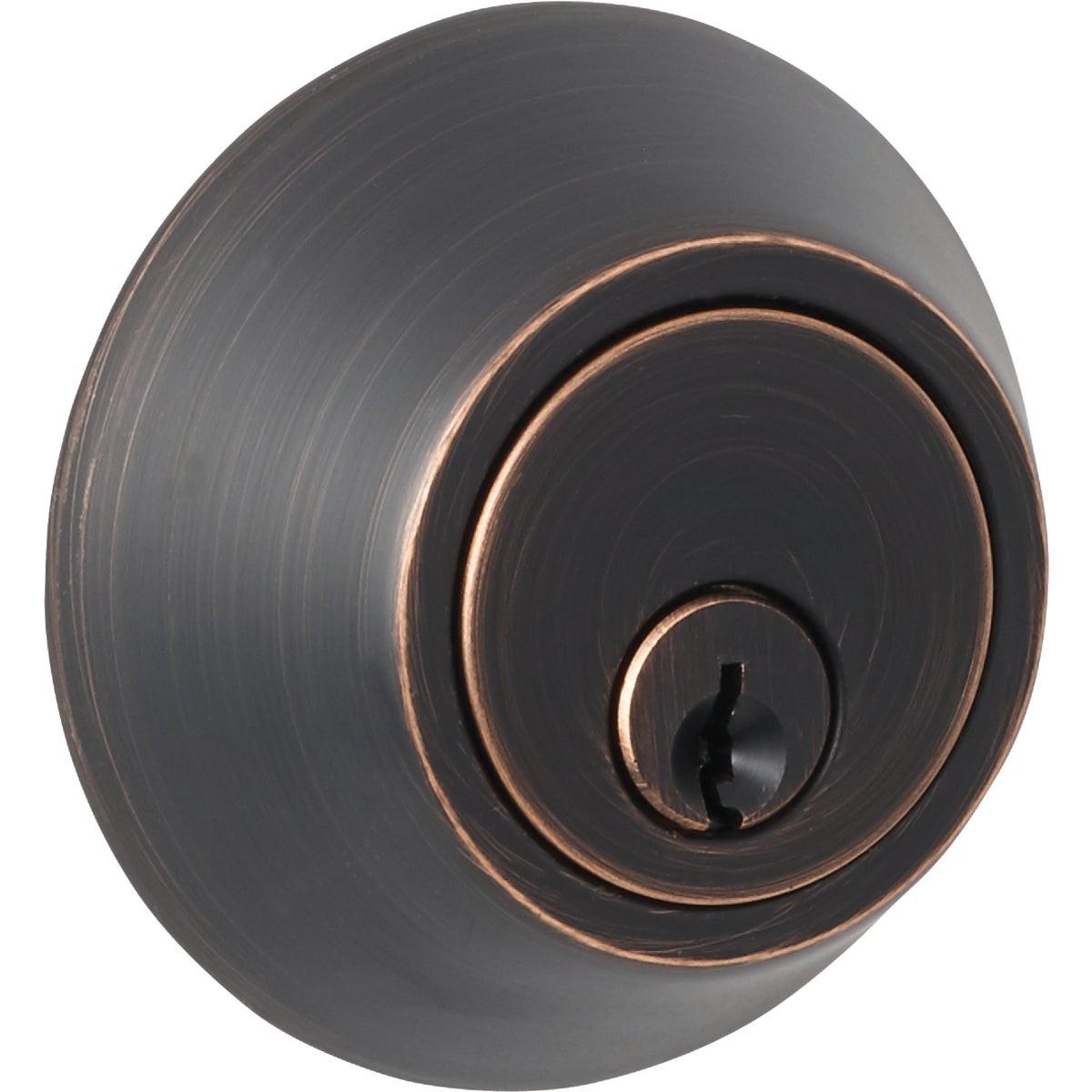

The HONEYWELL DB9X71 is a single cylinder deadbolt finished in oil rubbed bronze, built for residential door security applications. The unit features a 1-inch hardened steel throw bolt that resists forced entry, a square face latch plate, and an adjustable latch body that accommodates either a 2-3/8-inch or 2-3/4-inch backset without replacing the hardware. The key cylinder on the exterior retracts the bolt from outside, while a thumb turn on the interior operates the bolt from inside. This deadbolt is compatible with the Kwikset keyway, making it straightforward to integrate into existing keying systems on job sites.

The DB9X71 is suited for residential entry doors in new construction and remodel applications. The adjustable backset design reduces the need to stock multiple SKUs for different door preparations. Locksmiths, general contractors, and finish carpenters regularly install this hardware during door hardware rough-in and trim-out phases. The oil rubbed bronze finish coordinates with matching lever and knob hardware on standard residential door configurations. When ordering in case quantities of 24 units, the product ships with 4 sets of 6 keyed-alike cylinders, which simplifies master-key or keyed-alike projects on multi-door residential installs.

Key Features

• 1-inch hardened steel throw bolt for forced-entry resistance
• Adjustable latch fits 2-3/8-inch or 2-3/4-inch backset door preparations
• Square face deadbolt latch plate for clean, standard door edge fit
• Key-operated exterior cylinder with interior thumb turn
• Kwikset keyway compatibility for easy integration with existing key systems
• Case quantity of 24 includes 4 sets of 6 keyed-alike cylinders

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for standard residential doors prepared for single cylinder deadbolt hardware with a 2-3/8-inch or 2-3/4-inch backset and a Kwikset keyway cylinder.

Installation Notes

Installation is typically performed by a locksmith, finish carpenter, or general contractor using standard door hardware tools including a hole saw set and a chisel for the latch mortise. Verify the door edge preparation matches either the 2-3/8-inch or 2-3/4-inch backset before installation. Ensure the door is fully closed and the strike plate is aligned before final fastener tightening to confirm smooth bolt throw and retraction. Refer to local building codes for any egress or security requirements applicable to the door being serviced.

Technical Specifications

• Finish: Oil Rubbed Bronze
• Material: Steel
• Bolt Throw: 1 inch hardened
• Backset: Adjustable 2-3/8 inches or 2-3/4 inches
• Cylinder Type: Single cylinder with interior thumb turn
• Keyway: Kwikset
• Latch Face: Square
• Weight: 1.259 pounds
• Sold As: Each
• UPC: 00009326206011

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DB9X71
