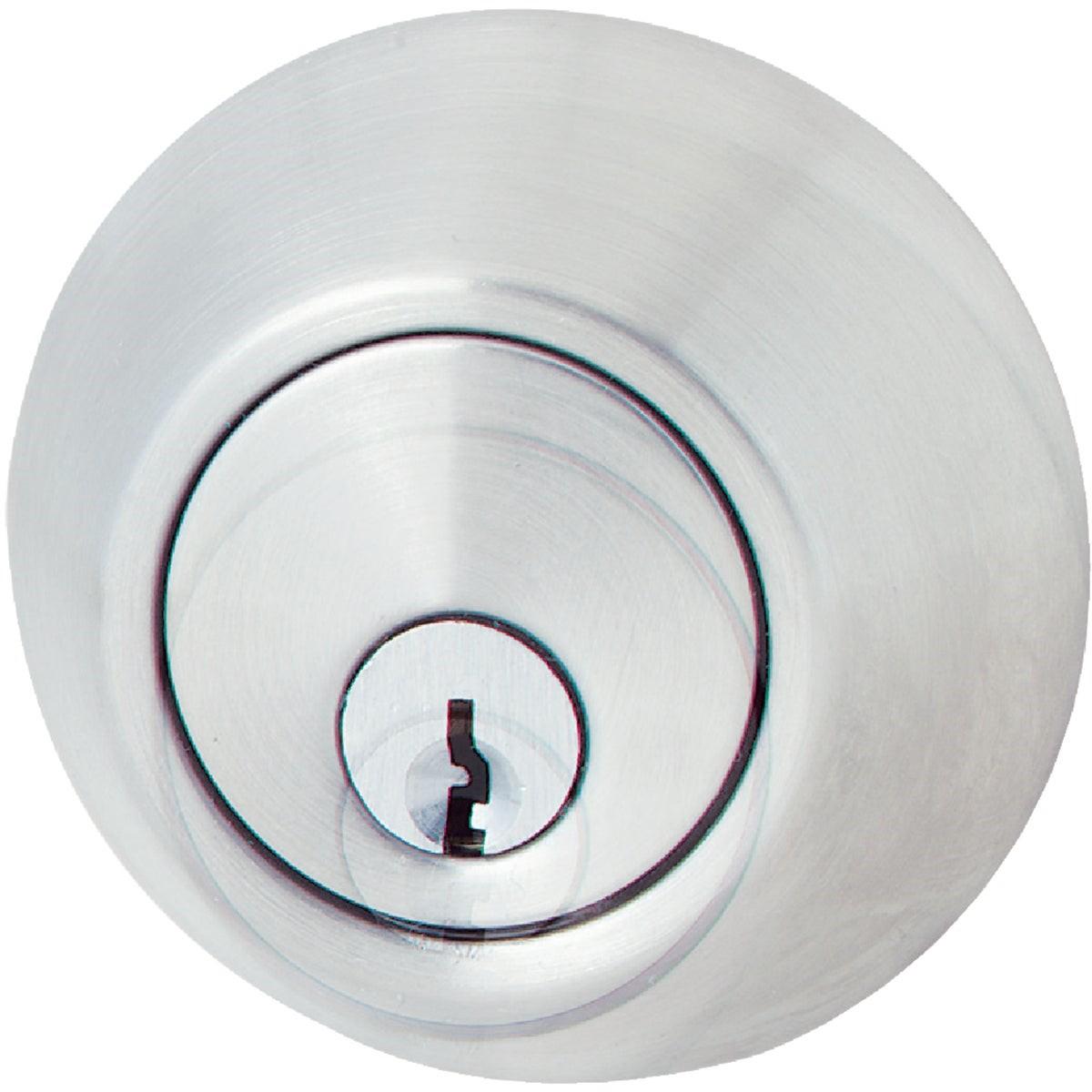

Honeywell DB962 Double Cylinder Deadbolt Satin Chrome

Product Description

The HONEYWELL DB962 is a double cylinder deadbolt designed for residential door security applications. Constructed with a steel pro body and finished in satin chrome, this deadbolt features a 1 inch hardened throw bolt that is keyed on both the exterior and interior cylinders. The latch is adjustable and interchangeable to fit either 2-3/8 inch or 2-3/4 inch backsets, accommodating the most common residential door prep configurations. A square face deadbolt latch is included. The DB962 uses the Kwikset keyway, making it compatible with existing Kwikset-keyed hardware on the same door or property.

This deadbolt is suited for residential entry doors where double cylinder operation is required, such as doors with glass panels near the lock where a single cylinder unit would pose a security risk. The adjustable backset latch simplifies installation across a variety of door preparations without requiring separate hardware. Locksmiths, general contractors, and experienced maintenance technicians are the typical installers. Ordered by the case of 24 units, the DB962 is available in sets of 6 keyed alike, supporting multi-unit residential properties or rekeying programs.

Key Features

• Double cylinder operation: key retracts bolt from both exterior and interior
• 1 inch hardened steel throw bolt for increased resistance to forced entry
• Adjustable latch fits 2-3/8 inch or 2-3/4 inch backsets
• Square face deadbolt latch included
• Uses Kwikset keyway for compatibility with existing Kwikset hardware
• Case quantity of 24 includes 4 sets of 6 keyed alike

Compatibility

The DB962 uses the Kwikset keyway and fits standard residential door preparations with 2-3/8 inch or 2-3/4 inch backsets. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation is typically performed by a licensed locksmith, carpenter, or qualified maintenance technician. Ensure the door is closed and stable before drilling or chiseling the mortise for the latch face. Double cylinder deadbolts require a key to retract the bolt from the interior, which has life-safety implications in emergency egress situations — verify compliance with local building codes before installation. Use a standard door lock installation kit with a hole saw and chisel for proper fitment.

Technical Specifications

• Throw Length: 1 inch hardened bolt
• Backset: 2-3/8 inches or 2-3/4 inches (adjustable)
• Face Type: Square face
• Cylinder Type: Double cylinder (keyed both sides)
• Keyway: Kwikset
• Finish: Satin Chrome
• Material: Steel
• Weight: 1.412 pounds
• Sold As: Each
• UPC: 00009326205373

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DB962
