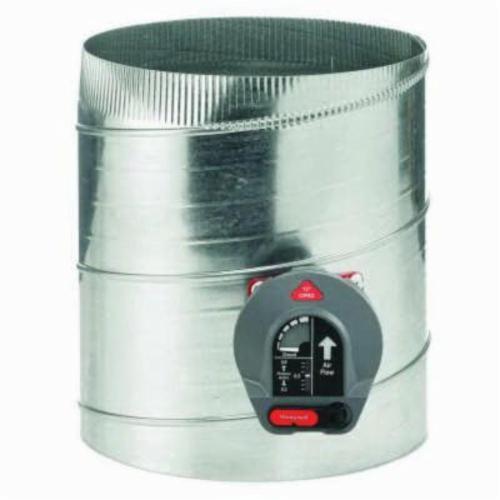

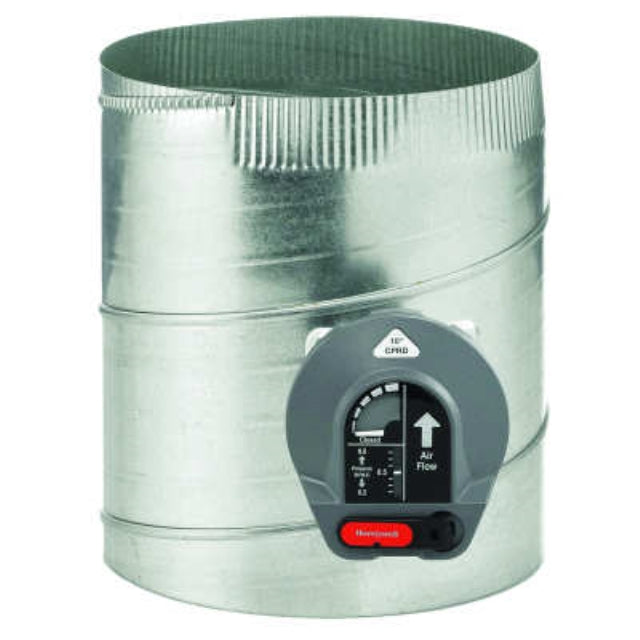

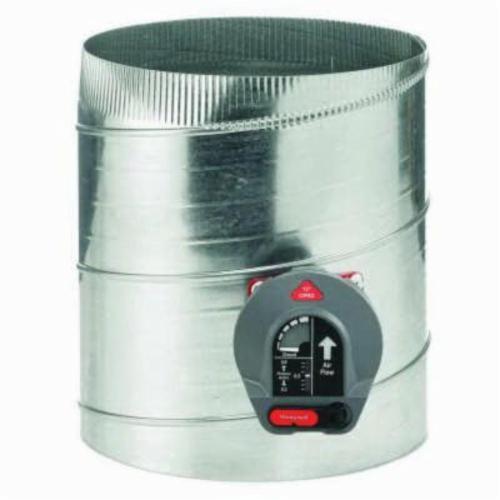

Honeywell CPRD12/U Constant Pressure Regulating Damper, 12 in, Round

Product Description

The Honeywell CPRD12/U TrueZONE bypass constant pressure regulating damper (CPRD) is a round static pressure relief damper used in forced-air bypass applications to relieve excess static pressure when some zone dampers are closed. It features quick installation and setup and can be installed in any orientation. It is engineered to provide constant system pressure regardless of changes in zones or blower speed.

• Quick installation and setup
• No weight to adjusts
• Can be installed in any orientation

Product Highlights

The Honeywell CPRD12/U damper provides constant system pressure and bypasses up to 1400 cfm. It features a quick connect regulator for motor or actuator mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: CPRD12/U
• Country of Origin: MX

Technical Specifications

• Size: 12 in
• Type: Constant Pressure
• Shape: Round
• Finish: Galvanized
• Series: CPRD
• Material: Steel
• Motor Type: Calibrated Spring Tension Regulator
• Country of Origin: MX
• Manufacturer Name: Honeywell
• Temperature Rating: 0 to 165 deg F
• Airflow Rating: 1400 CFM
• Material Thickness: 24 Gauge
• Blade Material: Galvanized Steel
• Inclusions/Features: Calibrated Spring Tension Regulator Motor
• Motor Mounting Type: Quick-Connect Regulator
• Replacement for: SPRD12 - 12" Round Static Pressure Relief Damper
• Brand: Honeywell
• Actuator Location: Bottom Mount
• Style: New Construction
• Static Pressure Control: True
• Gauge: 24 ga
• Motor Specifications: 24 VA
