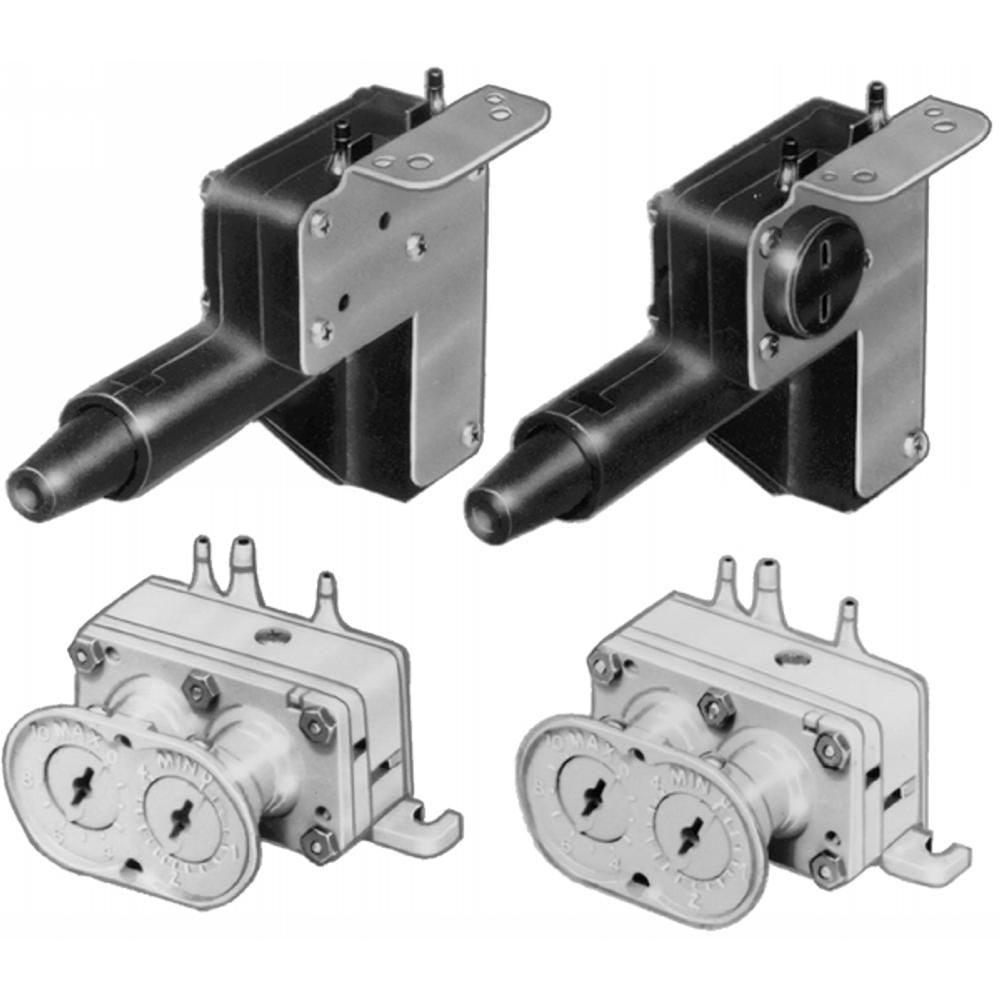

Honeywell CP980E1060/U Pneumatic Velocitrol Sensor

Product Description

The Honeywell CP980E1060/U is a pneumatic velocitrol sensor designed for precise air velocity control in HVAC systems. This direct-acting, normally closed device integrates with pneumatic damper actuators to ensure consistent airflow, regardless of static pressure variations.

• Broad range of applications for various HVAC systems
• Reliable operation with no frictional or wear parts
• Easy adjustability without special tools or equipment

Product Highlights

This sensor provides effective control across a full range of velocities. It features graduated scales for easy adjustments and can reset based on thermostat demand.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: CP980E1060/U

Technical Specifications

• Control Range: 500 fpm up to 3500 fpm by changing orifice
• Operating Conditions: 40 F to 130 F
• Pressure Ratings: Reset at 9 to 15 psi
• Mainline Pressure Range: 18 psi minimum, 20 psi nominal
• Humidity Range: 5 to 95% RH
• Airflow Usage: 0.029 scfm (13.7 mL/s)
• Dimensions: Controller - 1.75 inches high x 3.25 inches wide x 2.375 inches deep
• Maximum Safe Operating Pressure: 30 psi
