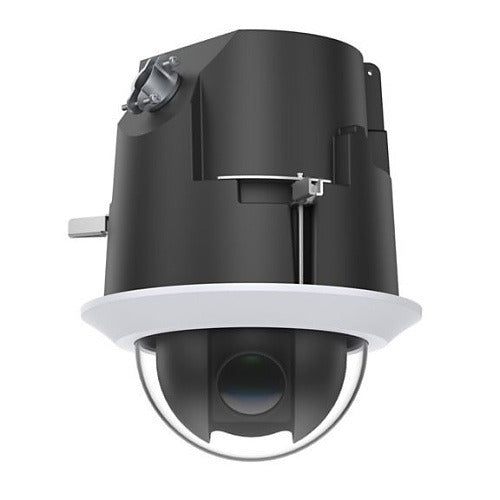

Honeywell Commercial Security HC70WZ5I30 Ptz Camera 5MP

Product Description

The HONEYWELL COMMERCIAL SECURITY HC70WZ5I30 is a 5-megapixel in-ceiling PTZ (pan-tilt-zoom) IP camera designed for commercial surveillance applications. It delivers high-resolution video with a 30x optical zoom range and supports both PoE+ (Power over Ethernet Plus) and 24VAC power input, giving installers flexible deployment options without requiring a separate power run in many installations. This camera mounts flush into a ceiling, making it well suited for lobbies, retail floors, casinos, and other large interior spaces where discrete overhead coverage is required. Security integrators and licensed low-voltage technicians are the primary installers.

The HC70WZ5I30 is intended for commercial indoor ceiling installations where wide-area PTZ coverage is needed. Its in-ceiling form factor keeps the camera profile low and aesthetically unobtrusive in finished commercial interiors. The dual-power capability — PoE+ via network infrastructure or 24VAC via a traditional transformer — makes it compatible with both modern IP-centric security systems and legacy hybrid installations. It is sold as a single unit and categorized as an IP PTZ camera.

Key Features

• 5-megapixel resolution for high-detail PTZ video capture
• 30x optical zoom for long-range identification in large spaces
• PoE+ input eliminates the need for a separate power supply when network infrastructure supports it
• 24VAC input option supports legacy or hybrid power installations
• In-ceiling mount design provides a low-profile, discreet appearance in commercial environments

Compatibility

Designed as an OEM in-ceiling PTZ IP camera for commercial security systems that support 5MP IP camera inputs with PoE+ or 24VAC power delivery.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with applicable local codes and NEC requirements for low-voltage wiring. Before mounting, verify that the network switch port supplying power meets PoE+ (802.3at) output requirements if using network power, or that the 24VAC transformer is correctly rated for the load. Ceiling structural backing adequate for the camera weight must be confirmed prior to cutting the ceiling opening. Power down the network port or transformer before making final wiring connections.
