Honeywell C7089U1006/U Pro 8000 Outdoor Sensor

Product Description

The HONEYWELL C7089U1006/U Pro 8000 outdoor sensor has a temperature range of -40 to 120 deg F. When installed, the current outdoor temperature is displayed and can be used to manage dual fuel and lock-out expensive auxiliary heat in heat pump applications. It is compatible with certain Honeywell thermostats and controllers.

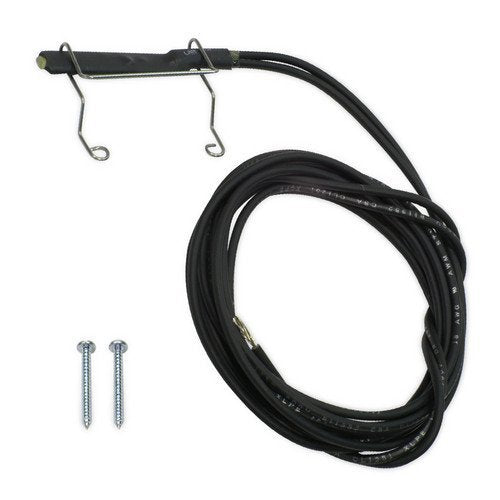

• Mounting clip allows easy sensor positioning on siding or soffit
• Factory calibrated; no field calibration required
• Maximum wire run of 200 ft.

Product Highlights

The Honeywell C7089U1006/U outdoor sensor measures outdoor temperature for VisionPRO and VisionPRO IAQ and can be used for dual fuel balance point temperature operation in heat pump applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: C7089U1006/U
• Country of Origin: MX

Technical Specifications

• Power Source: Corded Electric
• Mounting: Mounting Clip provided and screws provided
• Configuration: Outdoor
• Sensors Application: Temperature
• Communication Network: RedLINK
• Series: C7089
• Humidity Range: 5 to 95 %
• Country of Origin: MX
• Manufacturer Name: Honeywell
• Temperature Rating: -40 to 120 deg F
• Temperature Range: -40 Degree - 120 Degree F
• Accuracy: Plus/Minus 1.5 deg F at 70 deg F
• Humidity Rating: 5 - 95% Relative Humidity, Non-Condensing
• Item Name: Remote Sensor
• Type: Outdoor
• Used With: VisionPRO+ Series Thermostats
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
• Application: Sensor for VisionPRO Thermostats
• Ambient Temperature Range (C): -40 C to +49 C
• Ambient Temperature Range (F): -40 F to +120 F
• MPN: C7089U1006
• Manufacturer: Honeywell
• Operating Humidity Range ( RH): 5 to 95 RH, noncondensing
• Temperature Range, Ambient (F): 40 F to +120 F
• Temperature Range, Ambient (C): 40 C to +49 C
