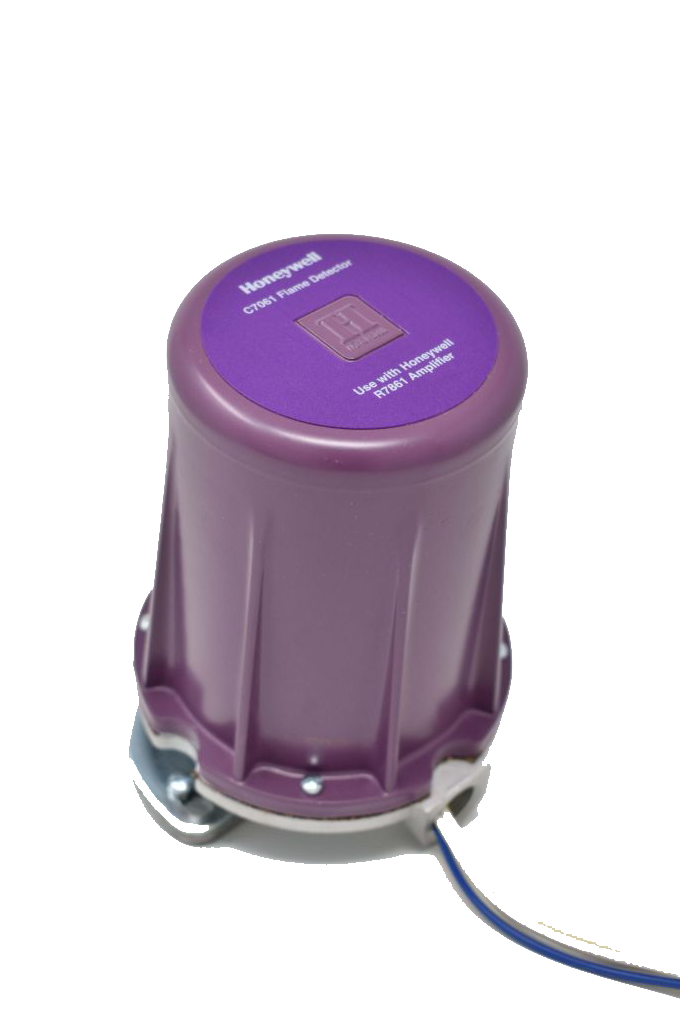

Honeywell C7061A1053/U Dynamic Self-Check UV Flame Detector

Product Description

The Honeywell C7061A1053/U Dynamic Self-Check UV Flame Detector is designed for reliable flame detection in various settings. This detector operates on 120 VAC and is suitable for temperatures ranging from negative forty degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit. It features a one inch NPT mounting type and is built to meet NEMA 4 standards.

• Oscillating shutter provides UV sensor checking function.
• Mountable in various orientations for flexibility.
• Field-replaceable UV sensing tube enhances serviceability.

Product Highlights

This flame detector includes a protective heat block in the mounting flange for added durability. The UV sensing tube is supplied and rated for negative forty degrees Fahrenheit. With IP66 rating, it can withstand harsh environments.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: C7061A1053/U

Technical Specifications

• Operating Voltage: 120 VAC
• Temperature Range: -40 F to 175 F
• Mounting Type: 1 in. NPT
• NEMA Rating: NEMA 4
• Leads Length: 96 in.
• IP Rating: IP66
• Weight: 2 lbs
• Dimensions: 6 in. x 4 in. x 4 in.
