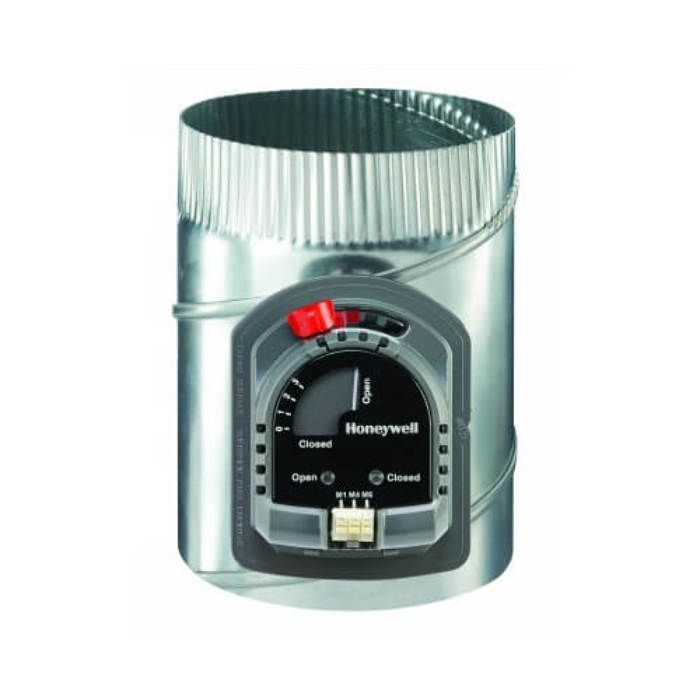

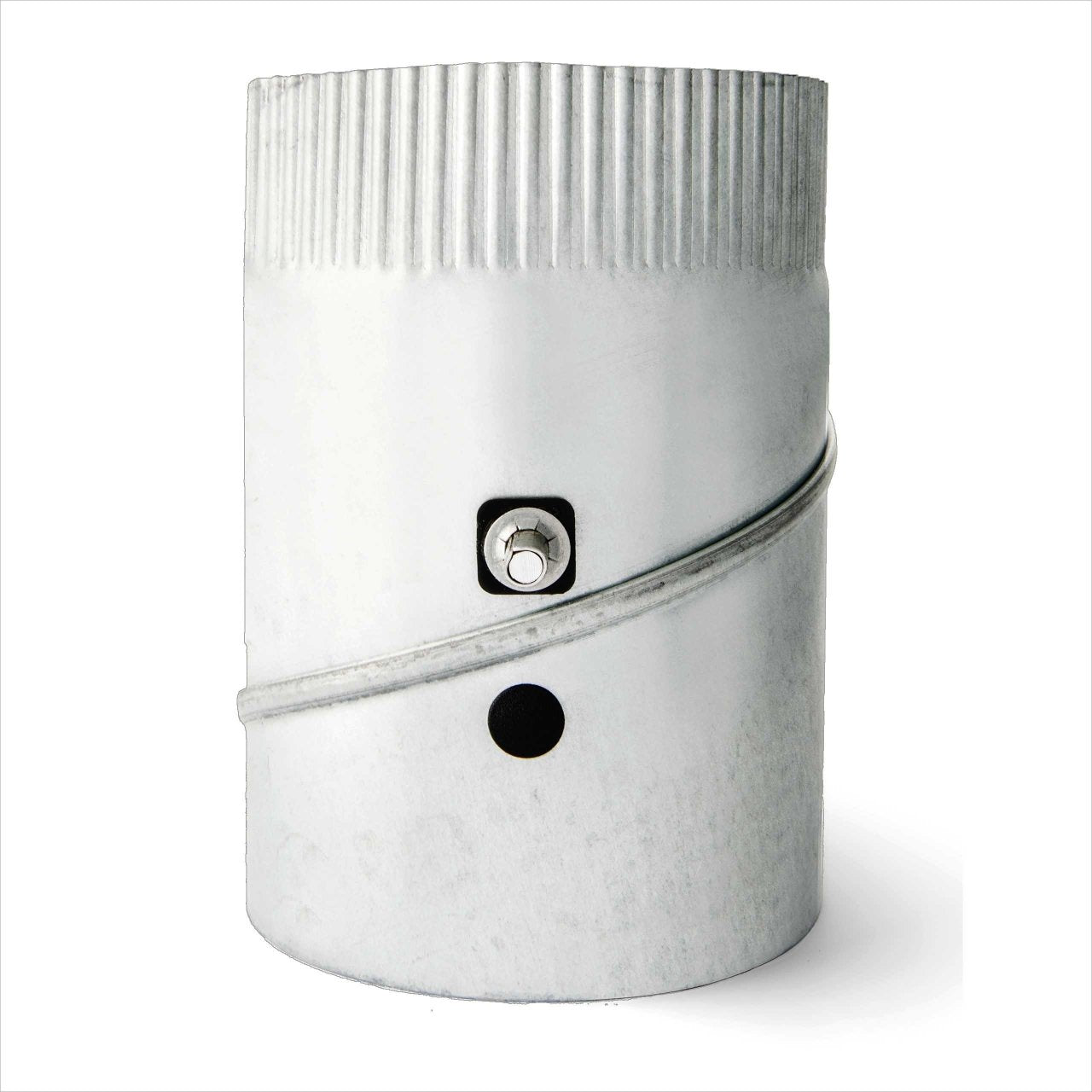

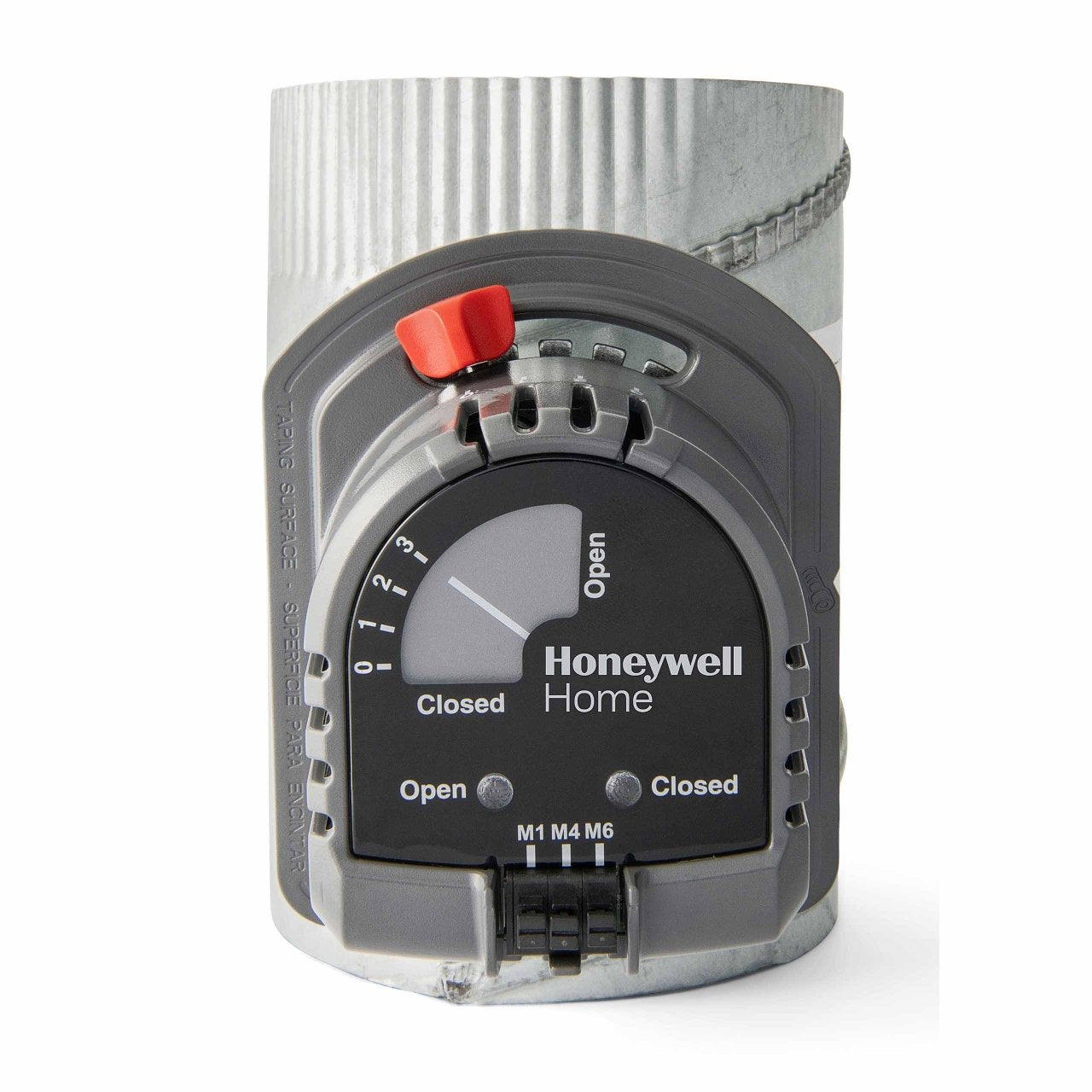

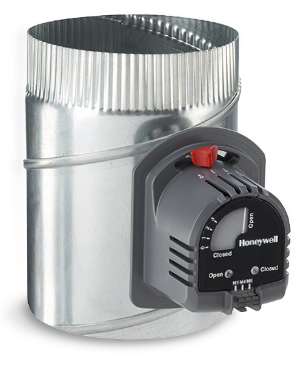

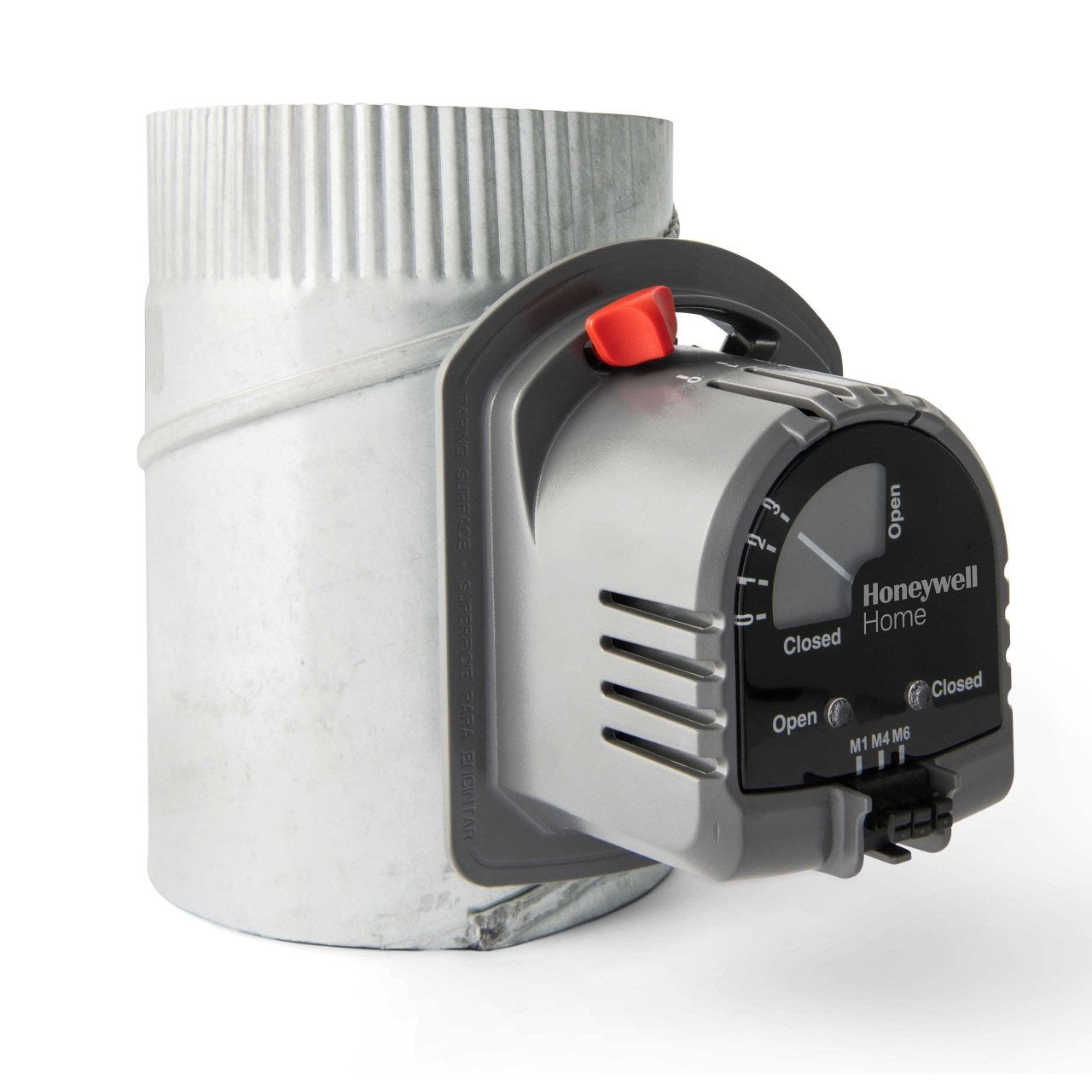

Honeywell ARD6TZ/U Automatic Damper, Round, 6 inches Diameter

Product Description

The Honeywell ARD6TZ/U automatic damper is a 6" diameter round damper designed for zoning systems. Constructed of galvanized steel with a single-blade, it ensures minimal leakage while controlling air in heating, cooling, and ventilation systems. It operates at 24 VAC and has a 90-degree rotation.

• Features galvanized steel with single blade damper for minimal leakage.
• Designated as power closed or spring return open damper for zoning systems.
• Can be field-converted for independent zone or fresh air intake use.

Product Highlights

This automatic round damper ensures low leakage and controls circulating air in HVAC systems. It is power-close, spring-open, and made in the United States.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ARD6TZ/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• Item Model Number: ARD6TZ/U
• Size: 6 in
• Country of Origin: MX
• Domestic/Import: Import
• Electrical Connections: M1-Power/M6-Common/M4 Terminal
• Finish: Galvanized
• Material: Steel
• Motor Type: Power Closed, Spring Open
• Rotation Angle: 90 deg
• Series: ARD
• Shape: Round
• Temperature Rating: 40 to 140 deg F
• Timing: 30 sec
• Type: Single Blade
• Voltage Rating: 24 V
• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Zone Damper
• Damper Material: Galvanized Steel
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Gauge: 22 ga, 24 ga
