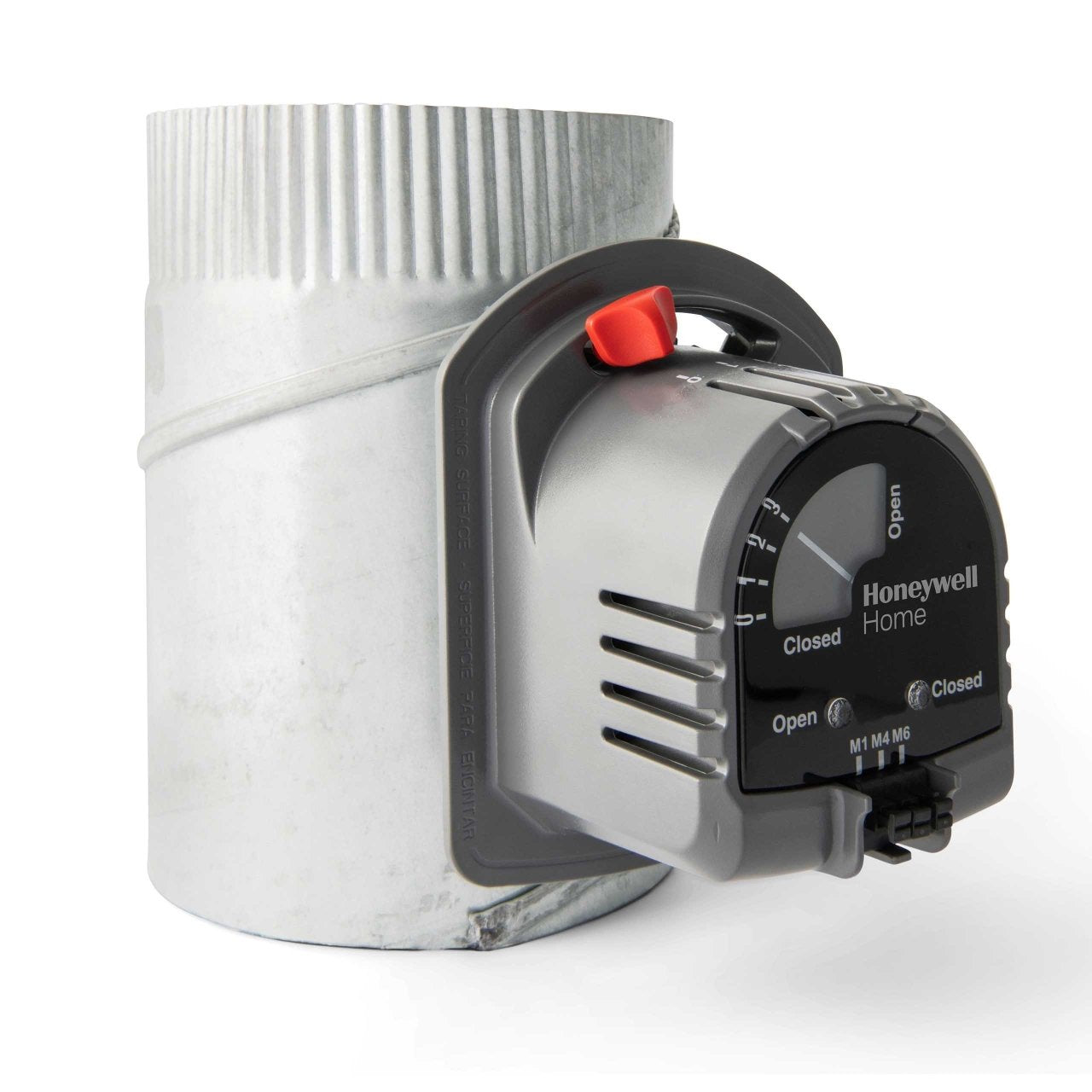

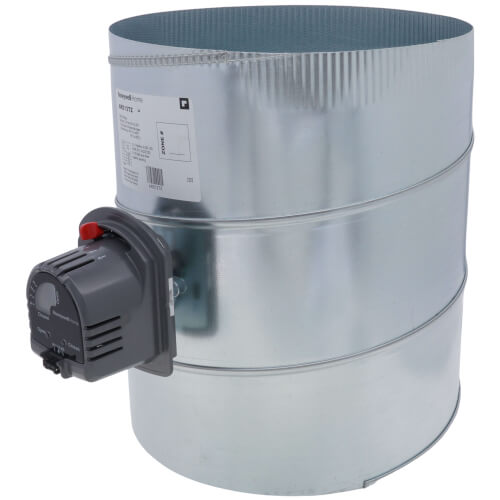

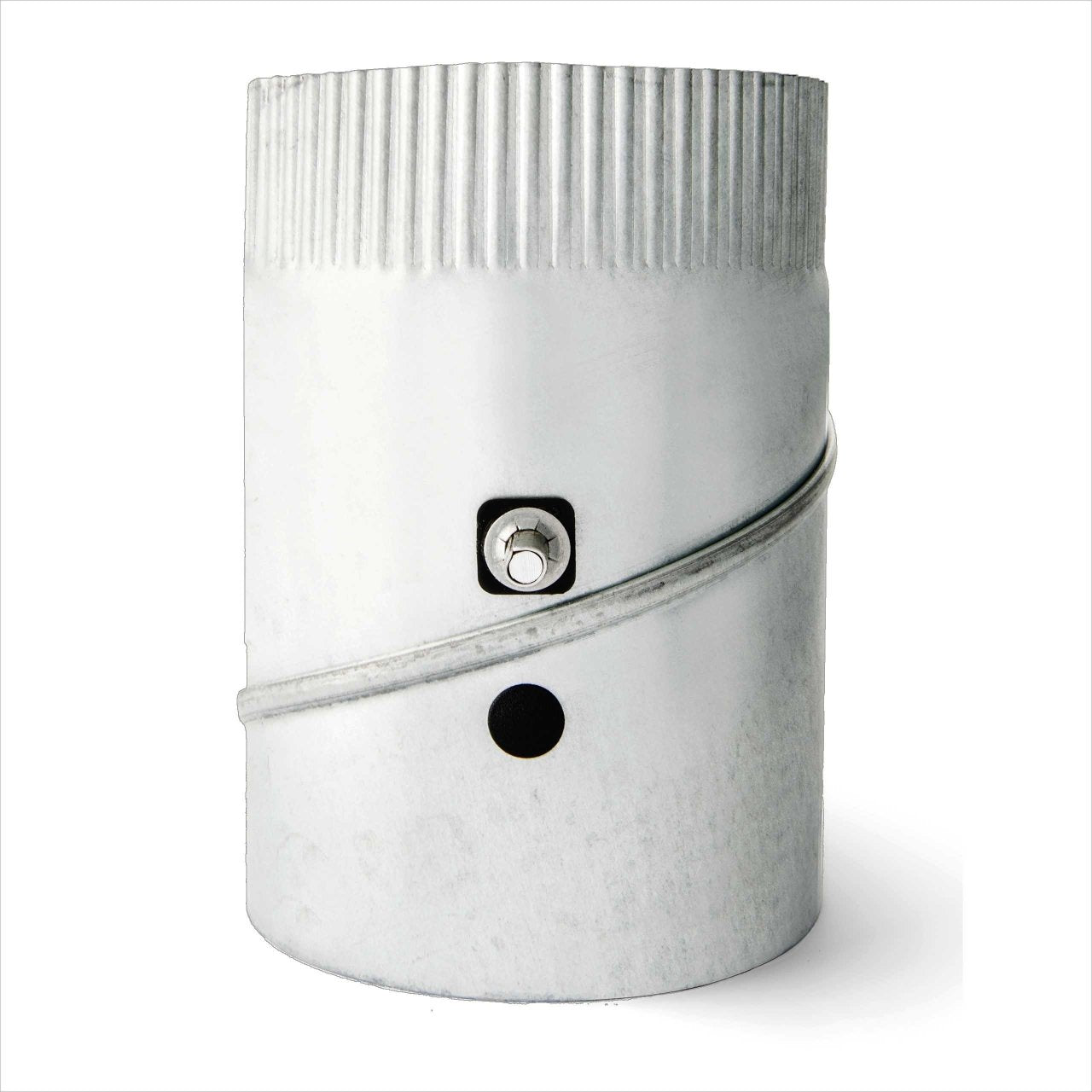

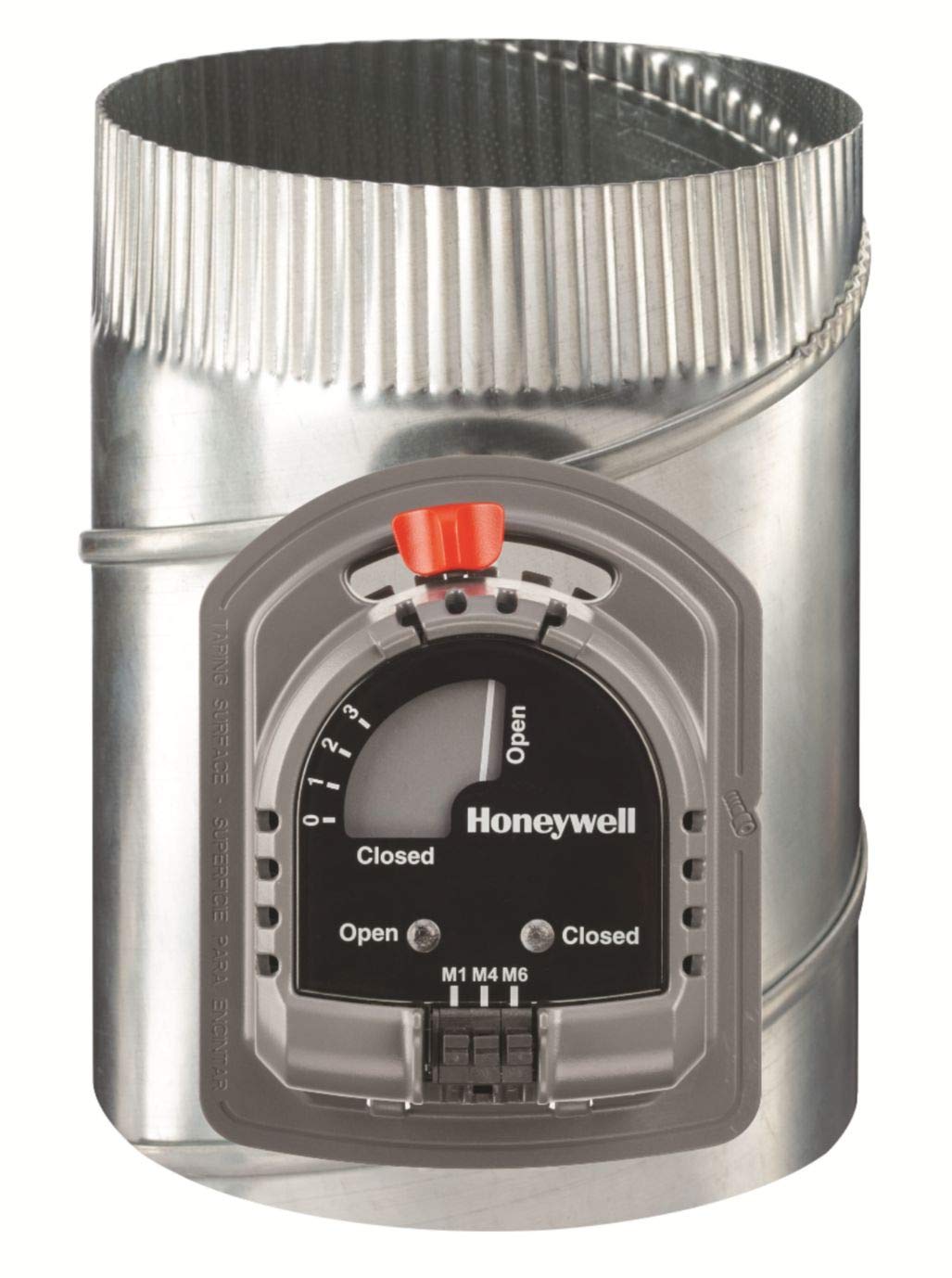

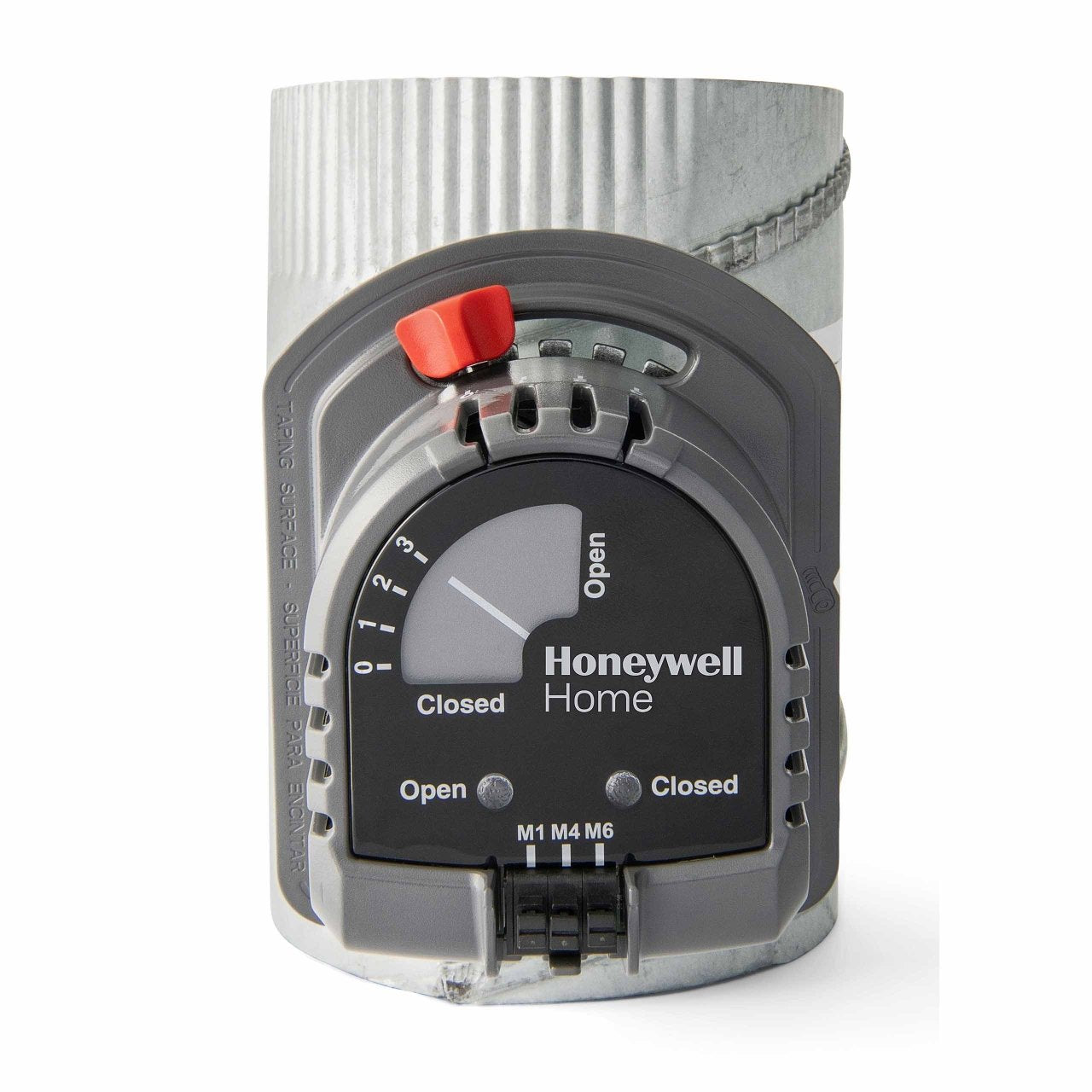

The Honeywell ARD12TZ is a round automatic damper with a 12-inch diameter. These power-close, spring-open models ensure low leakage while controlling circulating air in heating, cooling and ventilation systems. Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage.
Power Closed
Spring Return Open
Low Leakage
Product Highlights
The Honeywell ARD12TZ automatic round damper is power-close, spring-open and ensures low leakage while controlling circulating air.
Product Information
Standard Information
Brand: HONEYWELL
Manufacturer Part Number: ARD12TZ
Country of Origin: United States
Technical Specifications
Voltage
24 Volts
Material
Metal
Connector Type
Quick Connect
Insulation Resistance
100 Megaohms
Size
12"
Manufacturer
Honeywell
Model / MPN
ARD12TZ
Type
Automatic, Single Blade
Shape
Round
Finish
Galvanized
Series
ARD, TrueZONE
Timing
30 sec Power Open/10 sec Spring Return
Motor Type
Power Closed, Reversible, Spring Open
Rotation Angle
90 deg
Voltage Rating
24 V
Temperature Rating
40 - 140 deg F
Electrical Connection
2-Wire
Brand Name
Honeywell
Length
12"
Width
12"
Damper Duct Shape Type
Round
Damper Type
Zone
Application
Zone Damper
Damper Material
Galvanized Steel
Activation
Electric
Actuator Housing Material
Molded Plastic
Actuator Power Consumption
8 VA
Actuator Torque
71 in-oz
Blade Material
Galvanized Steel
Leakage
Less than 1% at 0.5 in WC
Position Indicator Included
Yes
Position Indicator Type
Damper Position Range Stops, LED indication light for open and close
