HONEYWELL AM1-TEMPGAUGE Temperature Gauge

Product Description

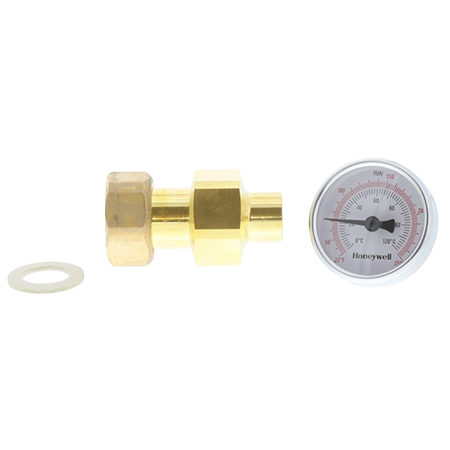

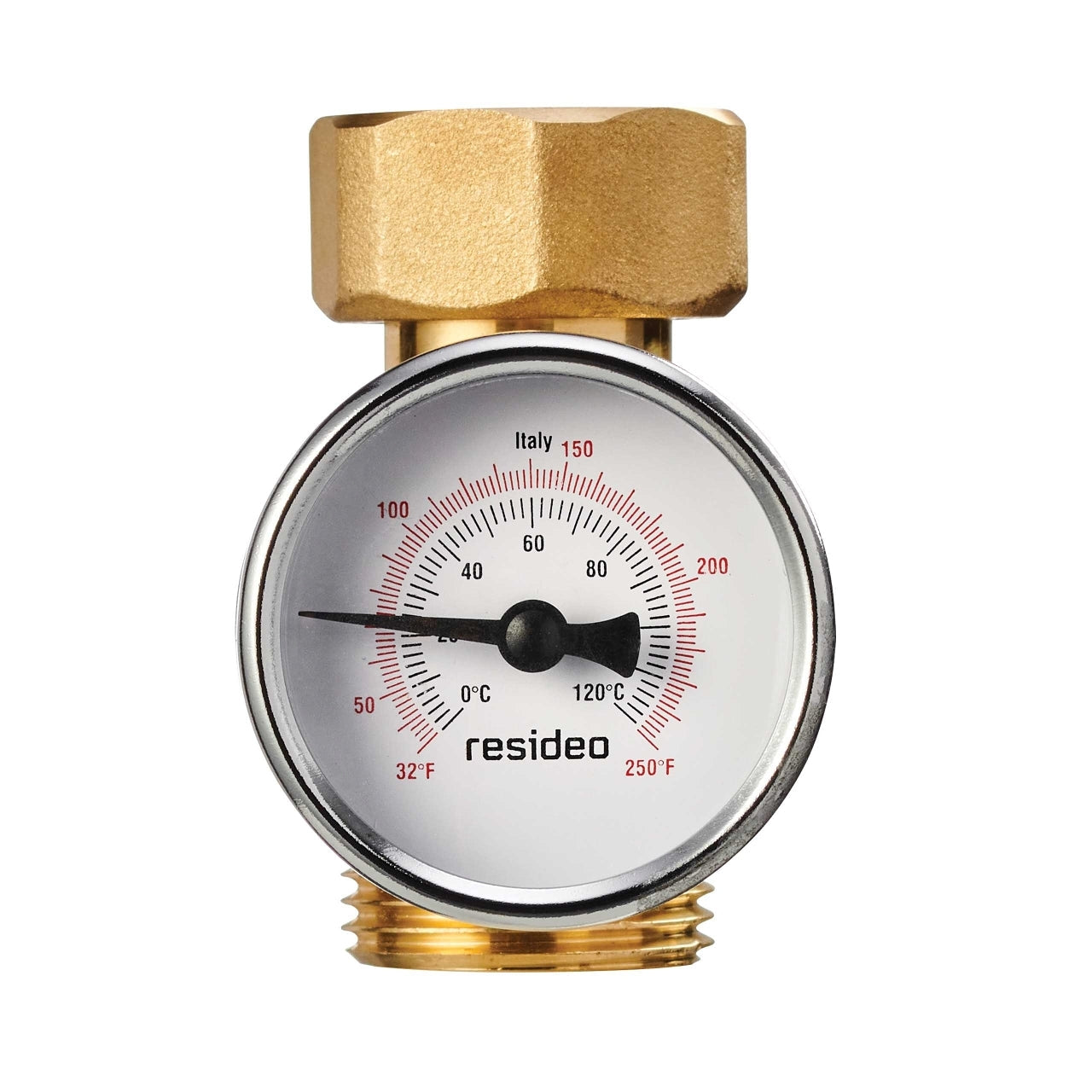

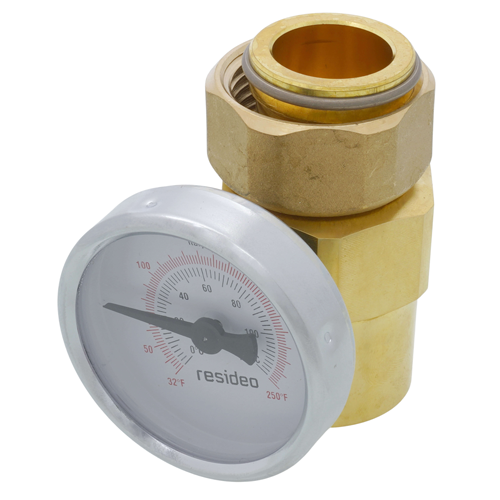

The Honeywell AM1-TEMPGAUGE is a temperature gauge used for measuring media temperature in various systems such as potable water and mixing valves. This gauge has a union sweat connection and is made from lead-free brass, ensuring safety and compliance with drinking water standards. It provides precise temperature readings for HVAC and plumbing applications.

• Union sweat connection for easy installation.
• Made from lead-free brass.
• Compatible with potable water systems.

Product Highlights

The gauge is ideal for monitoring hot water temperature effectively.

Product Information

Standard Information

• Brand: HONEYWELL RESIDENTIAL
• Manufacturer Part Number: AM1-TEMPGAUGE

Technical Specifications

• Type: Temperature Gauge
• Connection Size: 1/2 inches or DN15
• Connection Type: Union Sweat
• Flow Coefficient: 3.9 Cv
• Media Temperature Range: 70 to 180°F (21 to 49°C)
• Media Temperature Max: 212°F (100°C)
• Maximum Pressure: 150 psi (1034 kPa)
• O-Ring Material: EPDM

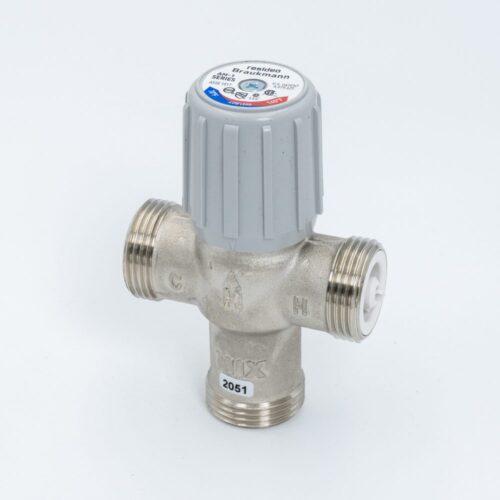

• Application: Mixing Valves
• Hot Inlet Temperature: 120°F (49°C) Min, 180°F (82°C) Max
• Cold Inlet Temperature: 39°F (4°C) Min, 80°F (27°C) Max
• Operating Temperature: 70°F (21°C) Min, 145°F (63°C) Max
