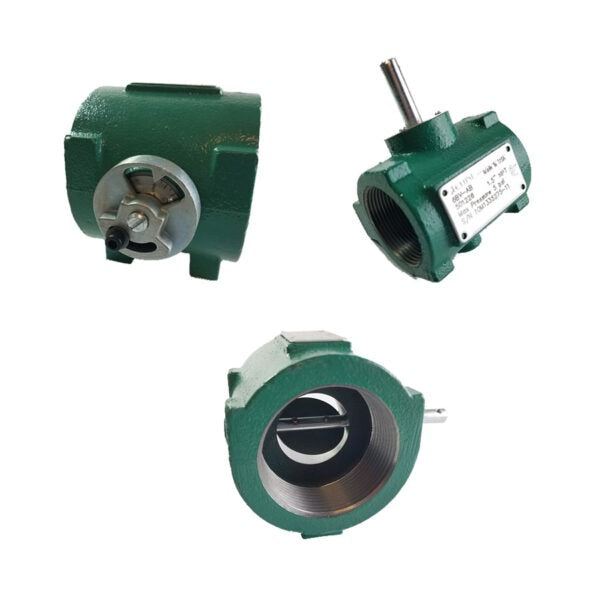

HONEYWELL 501222 Eclipse Manual Full Port Butterfly Valve

Product Description

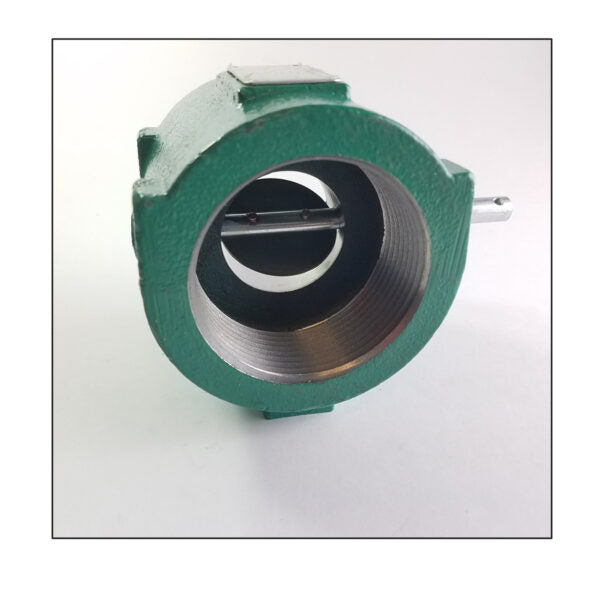

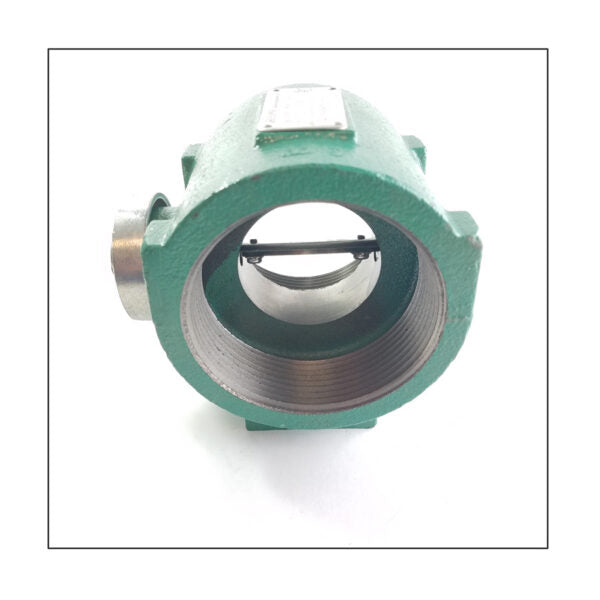

The HONEYWELL Eclipse 501222 is a manually operated butterfly valve designed specifically for controlling air and gas flow in combustion systems. This valve features a full port design, ensuring optimal flow. It is not intended for applications requiring tight shut-off. The valve is built with a durable cast iron body and can be equipped with an optional control arm for integration with position control devices. The position of the valve shutter is easily indicated by a slot located on the shaft.

• Designed for air and gas flow control in combustion systems
• Features a full port design

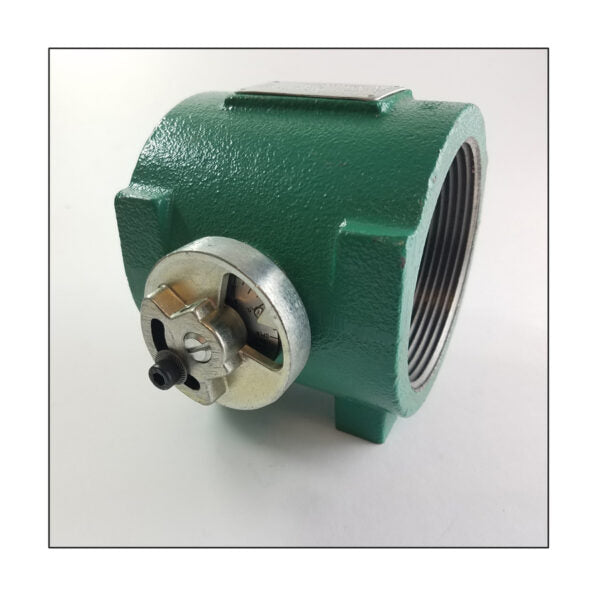

• Manual butterfly valves four inches and smaller include an adjusting cover for setting disk position

Product Highlights

This valve is suitable for HVAC professionals needing reliable control of airflow in gas and air applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Country of Origin: United States

Technical Specifications

• MPN: 501222
• Gas Valve Type: Full Port
• Process Connection Size: four inches NPT
• Connection Type: NPT
• Valve Operation: Manual
• Nominal Size: four inches
• Flow Coefficient (Cv): 819
• Disc Type: Beveled Disc 75-degree Rotation
• Process Temperature Limits: -40 to 140 F
• Operating Temperature: up to 600 F
• Maximum Pressure: 5 PSI
• Approvals: UL
