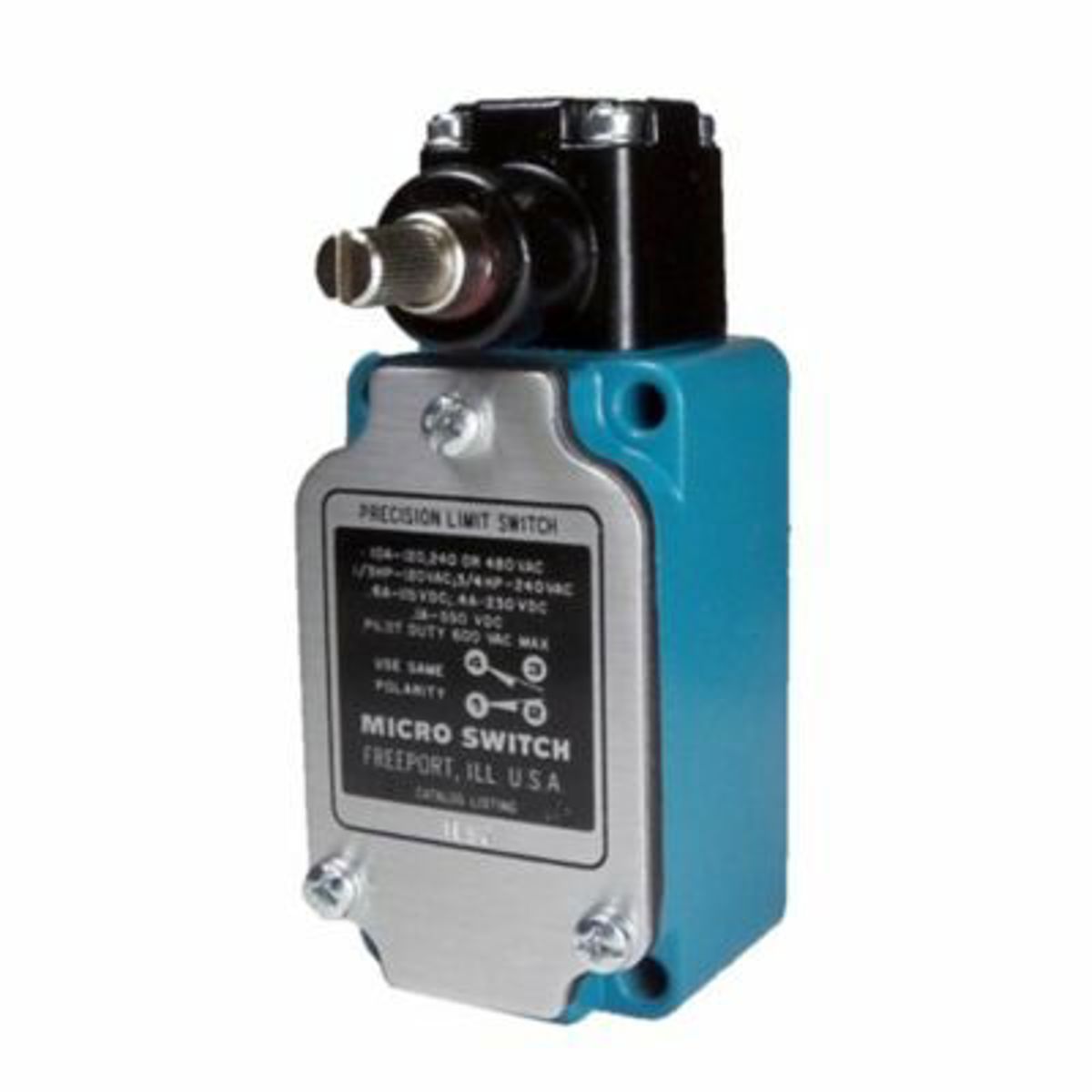

Honeywell 1LS2 LIMIT SWITCH Compact General Purpose Limit Switch

Product Description

The Honeywell 1LS2 is a compact general-purpose limit switch designed for various industrial applications. This durable switch operates on multiple voltage ratings, including one hundred twenty, two forty, and four eighty VAC, as well as one hundred fifteen, two thirty, and five fifty VDC. It can handle current ratings from zero point one to ten amps.

• Designed for machine tools, conveyors, and lift trucks.
• Includes a side rotary lever actuator.
• NEMA rated for diverse environmental conditions.

Product Highlights

The Honeywell 1LS2 offers reliable performance in demanding environments. Its compact design supports flexibility in installation while ensuring operational precision.

Product Information

Standard Information

• Brand: Honeywell
• Catalog Number: 1LS2

Technical Specifications

• Actuator: Side Rotary Lever
• Amperage Rating: 0.1 to 10 A
• Voltage Rating: 120/240/480 VAC, 115/230/550 VDC
• Contact Configuration: 1NO-1NC, SPDT
• Enclosure: NEMA 1/3/4/6/13
• Operating Temperature: -29 to 71 degrees Celsius
• Material: Die Cast Zinc
• Size: 40 mm L x 40 mm W x 70 mm H
