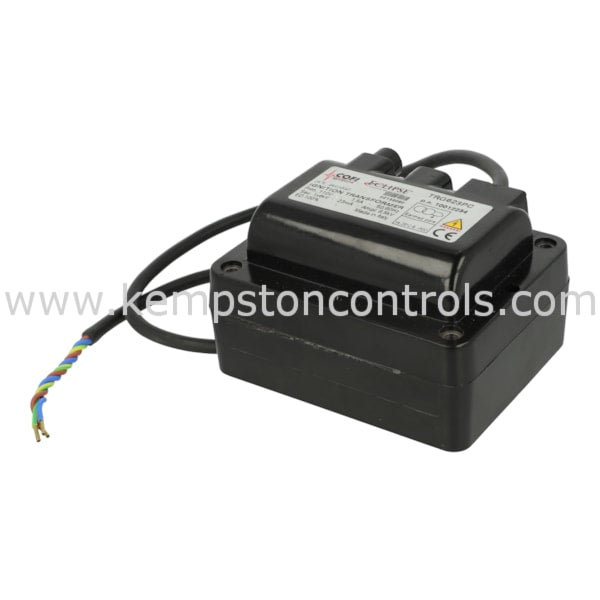

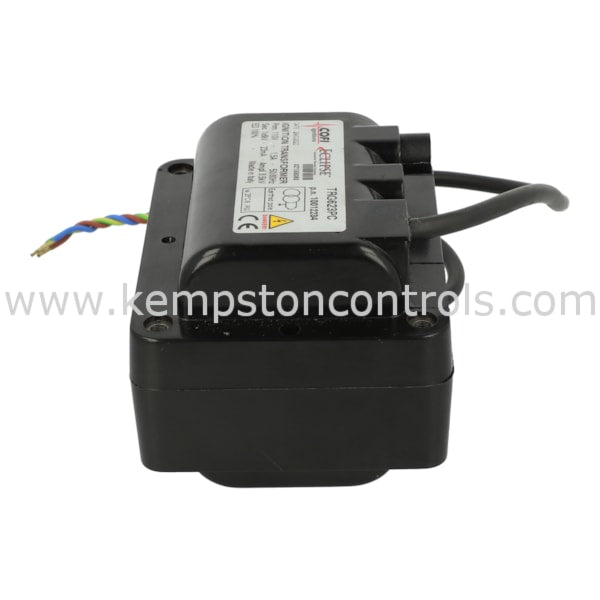

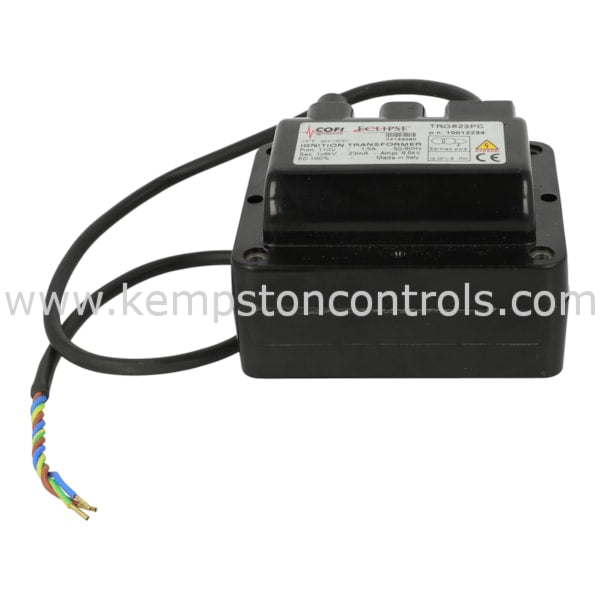

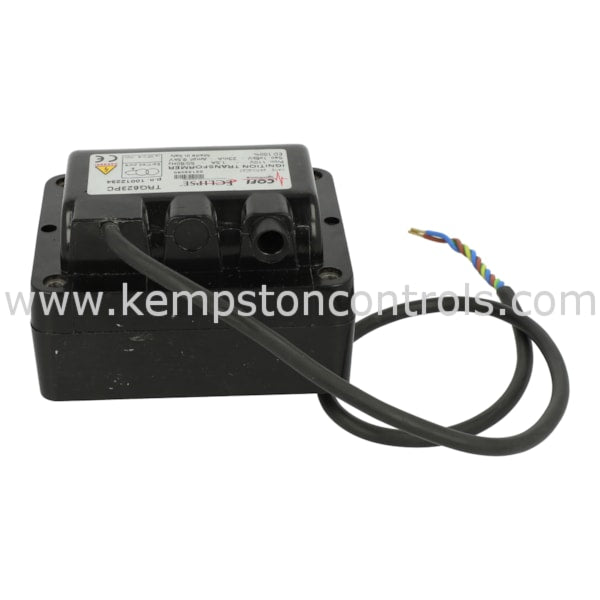

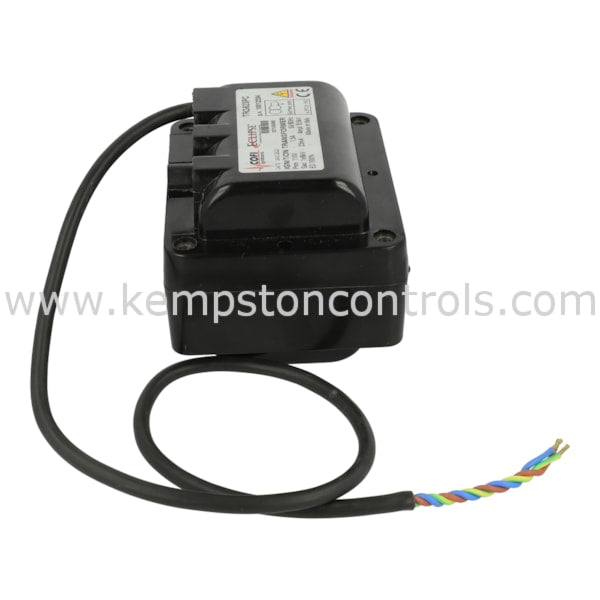

Honeywell 10012234 Ignition Transformer

Product Description

The Honeywell Eclipse 10012234 is an ignition transformer for industrial and commercial uses. This transformer operates with a primary supply voltage of 110 to 120 VAC and a frequency of fifty to sixty Hertz. It has a primary current of 1.5 A and generates a secondary voltage of 6000 VAC RMS. The design includes durable insulation, ensuring safety and longevity.

• Primary voltage of 110-120 VAC
• Compact design suitable for outdoor use
• Secondary voltage of 6000 VAC RMS

Product Highlights

This ignition transformer is built for reliability and efficiency in a variety of settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: 10012234

Technical Specifications

• Primary supply voltage: 110-120 VAC
• Frequency: 50-60 Hz
• Primary current: 1.5 A
• Power: 165 VA
• Secondary voltage RMS: 6000 VAC
• Secondary current RMS: 23 mA
• Service duty: 100% on time / 4 minutes
• Approvals: CE
• Surface material: Araldite Epoxy Resin
• Maximum ambient temperature: 90°C (194°F)
• Minimum ambient temperature: -40°C (-40°F)
