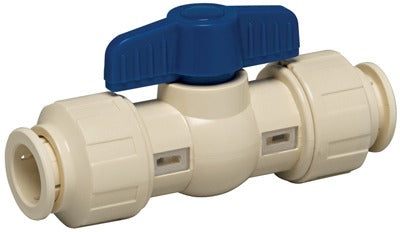

Homewerks 126-8-34-34 Push Fit Cpvc Ball Valve 3/4 in

Product Description

The Homewerks Worldwide LLC 126-8-34-34 is a 3/4-inch push fit CPVC ball valve designed for residential and light commercial plumbing systems. It installs without solvents, adhesives, or open flame, making it a fast option for service work and new construction alike. The valve delivers 150 psi working pressure at 73 degrees F and 100 psi at 180 degrees F, covering both cold and hot water applications. Quarter-turn operation gives the technician a clear open or closed position at a glance. Licensed plumbers and experienced trade installers are the primary users of this valve.

This valve is suited for hot and cold water distribution lines in residential and light commercial settings. It works with CPVC, copper, and PEX pipe, which makes it adaptable across mixed-material systems and retrofit situations where a solder-free or solvent-free shutoff is needed. Typical install scenarios include branch line shutoffs, appliance isolation, and repair work where a torch or solvent weld is not practical or not permitted.

Key Features

• Push fit connection — no solvents, primers, or torch required
• Quarter-turn ball valve operation for fast, positive shutoff
• Rated 150 psi at 73 degrees F and 100 psi at 180 degrees F
• Compatible with CPVC, copper, and PEX pipe
• Suitable for both hot and cold water service
• Meets ANSI standards and NSF 61-9 certification for potable water contact

Compatibility

Compatible with CPVC, copper, and PEX pipe in 3/4-inch size. Designed for hot and cold water plumbing systems meeting ANSI and NSF 61-9 requirements.

Installation Notes

Installation is performed by a licensed plumber or qualified trade technician. Shut off the water supply and relieve system pressure before installing or removing this valve. No solvent cement, primer, or torch is required — ensure pipe ends are cut clean, deburred, and fully seated to the depth mark before completing the push fit connection. Verify local plumbing code acceptance of push fit fittings for the intended application prior to installation.

Technical Specifications

• Connection Size: 3/4 inches
• Connection Type: Push Fit
• Valve Type: Ball Valve
• Operation: Quarter Turn
• Maximum Pressure (Cold): 150 psi at 73 degrees F
• Maximum Pressure (Hot): 100 psi at 180 degrees F
• Compatible Pipe Materials: CPVC, Copper, PEX
• Certifications: ANSI, NSF 61-9
• Weight: 1.92 pounds
• Package Quantity: 6 per package

Standard Information

• Brand: Homewerks Worldwide LLC
• Manufacturer Part Number: 126-8-34-34
