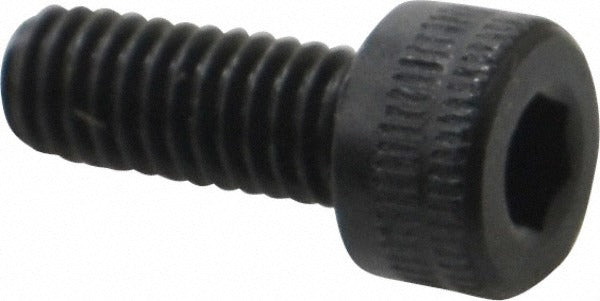

Holo-krome 76060 Hex Socket Cap Screw M4 X 0.70 10mm

Product Description

The HOLO-KROME 76060 is a metric hex socket cap screw designed for high-strength mechanical fastening in precision assembly applications. This M4 x 0.70 screw has a 10 mm length under head and is fully threaded, providing maximum thread engagement across the entire shaft. Manufactured from alloy steel to material grade 12.9, it delivers high tensile strength and is finished with a black oxide coating for corrosion resistance. Licensed machinists, maintenance technicians, and industrial assemblers install this fastener in close-tolerance applications where a standard hex wrench or Allen key drives the cap head below the surface of the workpiece.

This fastener is suited for use in machine frames, jigs, fixtures, tooling assemblies, and precision mechanical equipment where a flush or recessed head profile is required. The M4 thread size and 0.70 mm pitch make it a standard metric fastener used across a wide range of industrial and OEM manufacturing environments. The grade 12.9 alloy steel construction makes it appropriate for applications requiring superior clamp load compared to standard grade 8.8 or 10.9 fasteners. Sold individually, with a minimum order quantity of 100 pieces.

Key Features

• M4 x 0.70 metric thread with 10 mm length under head, fully threaded
• Grade 12.9 alloy steel for high tensile and proof load strength
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• Hex socket (Allen) drive type for recessed installation and high torque transfer
• Meets ANSI B1.13M, DIN 912, ISO 4762, and ISO 898-1 fastener standards
• Fully threaded shaft maximizes thread engagement in thin workpieces

Compatibility

Designed as a standard metric hex socket cap screw compatible with M4 x 0.70 tapped holes conforming to DIN 912 and ISO 4762 specifications.

Installation Notes

Installation is performed by machinists or mechanical technicians using an appropriately sized hex key or Allen driver. Ensure the receiving tapped hole meets M4 x 0.70 thread specification and that surfaces are free of debris before driving. Grade 12.9 fasteners should not be substituted with lower-grade hardware without verifying joint requirements. Follow applicable industry and equipment manufacturer torque guidelines for M4 grade 12.9 cap screws.
