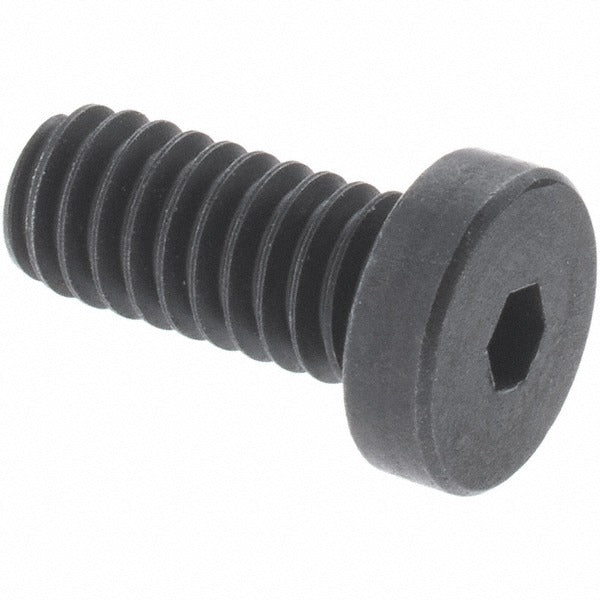

Holo-krome 69422 Low Socket Cap Screw M6x1 30mm

Product Description

The HOLO-KROME 69422 is a low socket cap screw in the M6x1 metric thread size with a 30 mm length measured under the head. Built from alloy steel at material grade 10.9, it carries a black oxide finish for corrosion resistance and reduced light reflection. The head height is 4 mm and the drive is a 5 mm hex socket. This fastener is manufactured to ANSI B1.13M with a 6G thread fit class and coarse thread spacing. It is suited for precision mechanical assemblies where a low-profile cap head is required and where standard socket cap clearances are restricted. Licensed mechanics, millwrights, and machine builders are the primary installers.

The 69422 is used in applications that demand a low-profile head to clear adjacent components or mating surfaces. Its grade 10.9 alloy steel construction provides high tensile strength for demanding structural and mechanical fastening tasks. Typical install scenarios include machine frames, fixture plates, tooling assemblies, and industrial equipment where metric fasteners are specified. The black oxide finish is appropriate for interior or lightly exposed environments where a non-reflective surface is preferred.

Key Features

• Low socket cap head profile — 4 mm head height for clearance-restricted installations
• Grade 10.9 alloy steel for high tensile load capacity
• Black oxide finish for corrosion resistance and non-reflective surface
• 5 mm hex socket drive for standard hex key or bit installation
• Coarse M6x1 thread with 6G fit class per ANSI B1.13M
• Fully threaded and partially threaded configurations noted in specification

Compatibility

Designed as an OEM-style metric fastener for machinery, fixtures, and equipment assemblies specifying M6x1 low socket cap screws to ANSI B1.13M.

Installation Notes

Installation is performed by licensed mechanics, millwrights, or qualified maintenance personnel using a 5 mm hex key or hex bit driver. Ensure mating threads are clean and free of debris before installation. Do not exceed the rated grade 10.9 mechanical limits by substituting this fastener in joints designed for a different property class. Apply thread-locking compound or specified torque procedures per the equipment manufacturer's assembly documentation.
