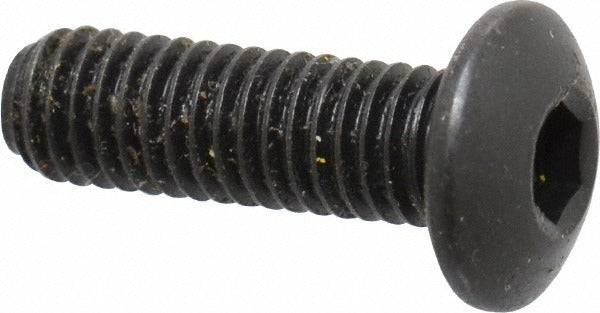

Holo-krome 65008 Button Socket Cap Screw 10-32 5/8 in

Product Description

The HOLO-KROME 65008 is a 10-32 button socket cap screw with a 5/8-inch length under head, designed for applications requiring a low-profile fastening solution with a clean, finished appearance. Manufactured from alloy steel with a black oxide coating, this screw delivers strong clamping force in a compact form factor. The 1/8-inch hex socket drive accepts standard hex keys and provides reliable torque transfer. A 3A thread fit class ensures consistent, precise engagement with mating threads. The fully threaded shank and right-hand thread direction are standard for most mechanical assemblies. Installers in mechanical, HVAC, and electrical panel work commonly use button head cap screws where clearance over fastener heads is limited.

This screw suits general mechanical assembly, equipment enclosures, sheet metal panels, jigs, and fixtures across residential and commercial trade applications. The button head profile reduces snag points and sits flush-adjacent to mating surfaces, making it a common choice for access panels, mounting brackets, and control board enclosures in HVAC and electrical systems. The black oxide finish provides mild corrosion resistance in dry to mildly humid indoor environments. This screw ships in a package quantity of one, with a minimum order quantity of 100 units.

Key Features

• 10-32 UNF thread with 3A fit class for precise thread engagement
• 5/8-inch length under head, fully threaded shank
• 1/8-inch hex socket drive for standard hex key installation
• Alloy steel construction hardened to 38 HRC for high tensile strength
• Black oxide finish for mild corrosion resistance and low-glare appearance
• Button head profile provides low-profile fastening with wide bearing surface

Compatibility

Designed as an OEM-style replacement or standard fastener for mechanical assemblies requiring a 10-32 UNF fully threaded button socket cap screw conforming to ANSI/ASME B18.3 and ASTM F835 standards.

Installation Notes

Installation requires a 1/8-inch hex key or hex bit driver. Always ensure the mating threaded hole or nut meets 10-32 UNF specifications before installation. De-energize or lock out any equipment before accessing fastened components on live electrical or mechanical assemblies. Do not exceed the torque capacity of the alloy steel fastener by using impact tools without proper torque control.
