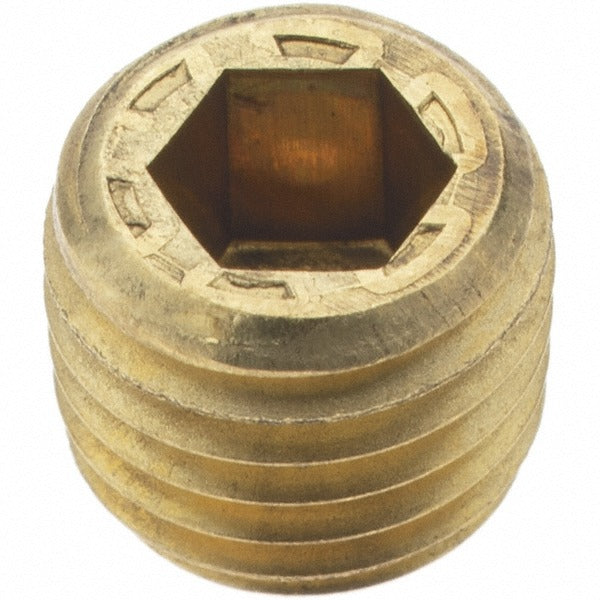

Holo-krome 11100 Brass Socket Pressure Plug 1/16-27

Product Description

The HOLO-KROME 11100 is a brass socket pressure plug designed to seal threaded ports in hydraulic, pneumatic, and fluid system applications. Machined with a 1/16-27 tapered thread and a 7/8-inch taper per foot, this plug creates a secure, leak-resistant seal when fully seated. The overall length is 1/4 inch, and installation is performed using a 5/32-inch hex key. Brass construction resists corrosion and is compatible with a wide range of system fluids. This plug is commonly installed by plumbers, hydraulic technicians, and fluid system mechanics during port sealing, system testing, or maintenance.

This pressure plug is suited for sealing unused or redundant threaded ports in fluid power systems, manifolds, valve bodies, and related equipment. The 1/16-27 thread size is a standard pipe thread designation frequently encountered in compact hydraulic and pneumatic components. The small form factor and internal hex drive make it practical in tight or recessed port locations where external-drive fittings would not fit.

Key Features

• 1/16-27 tapered thread for a secure, leak-resistant port seal
• 7/8-inch taper per foot conforms to standard pipe thread taper specifications
• 1/4-inch overall length suits compact and recessed port installations
• 5/32-inch internal hex drive allows installation with a standard hex key
• Brass construction provides corrosion resistance across a broad range of system fluids

Compatibility

Designed as an OEM-style replacement or service fitting for threaded ports using 1/16-27 pipe thread in hydraulic, pneumatic, and fluid system components.

Installation Notes

Installation is typically performed by a licensed plumber, hydraulic technician, or fluid system mechanic. Depressurize and isolate the system before removing or installing any port plug. Apply an appropriate thread sealant or PTFE tape to the tapered threads per system requirements and applicable codes. Do not overtighten; seat the plug until snug and leak-free without stressing the port boss or surrounding material.
