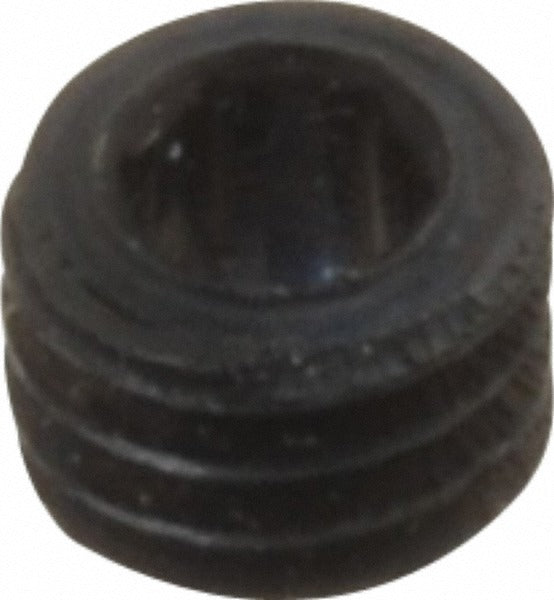

Holo-krome 07010 Socket Jam Screw 10-32 Unf Alloy Steel

Product Description

The HOLO-KROME 07010 is a socket jam screw designed for precision fastening applications requiring a low-profile, flush, or sub-flush seating position. Threaded 10-32 UNF with an overall length (OAL) of 0.125 inches, this screw is driven with a 3/32-inch hex key. Constructed from alloy steel with no coating, it delivers solid mechanical strength in compact assemblies. Maintenance technicians, machinists, and equipment installers working with light mechanical assemblies, jigs, fixtures, and precision equipment will find this fastener suited to tight-clearance installations where standard-length set screws will not fit.

The 07010 jam screw is used in mechanical and electromechanical assemblies where a threaded fastener must seat with minimal protrusion. Common applications include shaft locking, adjustment locking, and position-holding in small machinery, instrumentation, and equipment panels. Its short OAL makes it appropriate for thin materials and shallow-threaded bosses where a standard set screw would bottom out or protrude beyond the mating surface.

Key Features

• 10-32 UNF thread for fine-pitch engagement in compact assemblies
• 0.125-inch OAL provides minimal protrusion for tight-clearance applications
• 3/32-inch hex key drive for controlled installation torque
• Alloy steel construction for mechanical durability
• Uncoated finish suitable for use in dry or protected indoor environments

Compatibility

Designed as a drop-in replacement or standard-fitment socket jam screw for any assembly specifying a 10-32 UNF thread and 0.125-inch OAL with a 3/32-inch internal hex drive.

Installation Notes

Installation requires a 3/32-inch hex key or Allen driver. Ensure mating threads are clean and free of debris before installation. Do not exceed the rated drive engagement by using an oversized tool or applying excessive torque, as the small cross-section of a jam screw is susceptible to cam-out or shear. Consult applicable mechanical assembly standards for proper thread engagement depth and locking procedure.
