Holdrite SB3 Stout Bracket 10-1/4-in to 17-1/2-in

Product Description

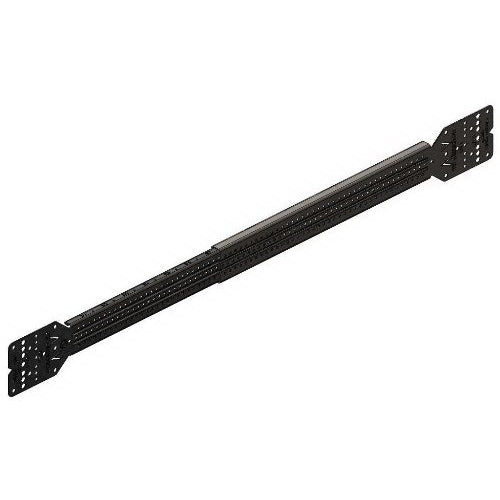

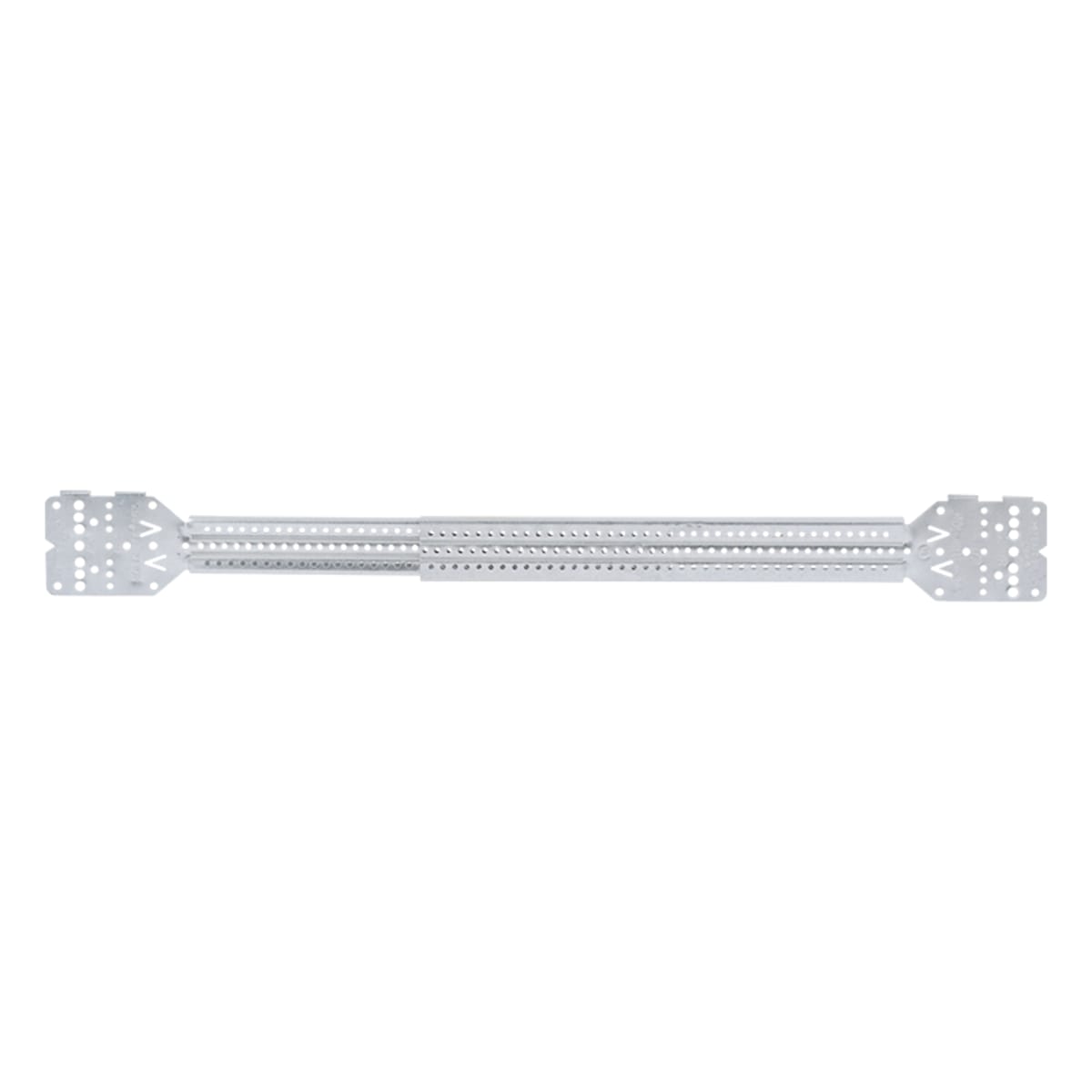

The HOLDRITE SB3 is a pipe support bracket. This telescoping stout bracket supports copper, PEX, and CPVC piping. It is ideal for use in bathrooms, showers, and water closets. Numerous clamps and fittings can be integrated onto multiple sides of the stout bracket for superior strength and versatility.

• Telescoping galvanized steel design supports CPVC, Copper and PEX tubing
• Supports Both 2-Eared and 3-Eared 90s
• Integrates with Several Holdrite Clamps and Other Industry Standard Components

Product Highlights

The Holdrite SB3 stout bracket provides multi-purpose telescoping support for various construction projects. It is ideal for stub out, vertical or horizontal installations.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: SB3
• Country of Origin: USA

Technical Specifications

• MPN: SB3
• Brand: Holdrite
• Manufacturer: Cash Acme
• Type: Wide, Telescoping
• SKU: SB3
• vendor_name: TCG-RELIANCE WORLDWIDE CORPORATION 4020
• weight: 0.48
• length: 13.123
• height: 0.5
• width: 4.5
• cube: 29.5267
• Applicable Standard: UL, CUL, UPC, IPC, IAPMO
• Application: Shower Head, Tub Spout, Vertical Mid-Span
• Brand Name: Stout Bracket
• COMMODITY CODE DESCRIPTION LEVEL 3: Pipe and Tubing Accessories
• Finish: Galvanized
• Load Rating: 863 Pound Center Point
• Material: Steel
• Material Specification: ASTM A653
• Overall Height: 0.42 Inch
• Overall Length: 10-1/4 to 17-1/2 Inch
• Overall Width: 2.1 Inch
• Product Sub-Type: Bracket
• Product Type: Fastening Hardware and Accessories
• Thickness: 24 Gauge
• Length [Features]: 10-1/4" to 17-1/2"
• Product Type [Features]: Bracket
• Dimensions: 10-1/4 in. - 17-1/2 in.
• Common Applications: Water heater, Vertical, Urinal, Toilet, Stub-out support, Sink, Shower, Overhead, Mid-span support, Medical gas support, Lavatory, Janitor’s sink, J-Box support, Horizontal, Fixture stub-out, Bathtub, T&P relief line
• Approvals & Listings: UPC / IPC / IAPMO listed, UL listing
• Model Number: Sb3
• Manufacturer Part Number: SB3
• Mounting Type: Wall Mount
• Finish Type: Polished
• Unit Count: 1 Count
• Catalog Number: SB3
• Sales UOM Qty: 1
• SUPPLIER DESCRIPTION: HOLD SB3 10-18 SPAN WIDE STOUT BRKT
• UNIT OF MEASURE: each
