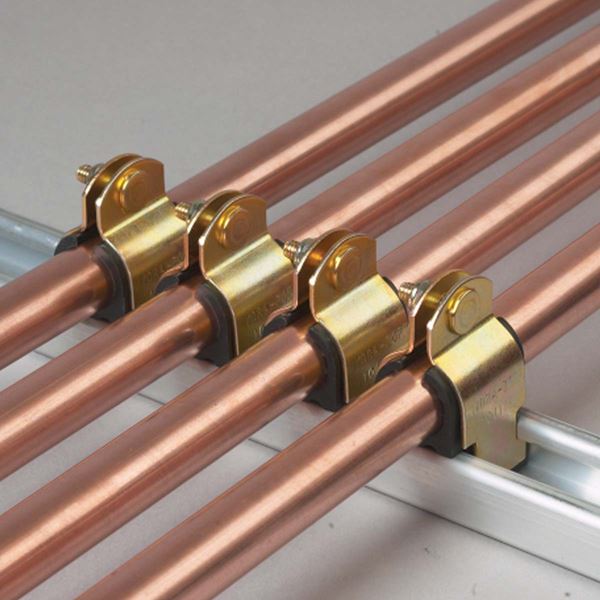

HOLDRITE HR100062 Strut-Mounted Cushion Clamp

Product Description

The HOLDRITE HR100062 is a strut-mounted cushion clamp that prevents metal-to-metal contact between pipes, clamps, and struts. The clamp is made from yellow trivalent plated mild steel, providing strong resistance to fuels, oils, gases, greases, solvents, and mineral acids. Its design allows for the addition or removal of piping without disturbing adjacent lines, accommodating various sizes of piping materials.

• Eliminates metal-to-metal contact between piping, clamps, and strut.
• Enables easy addition or removal of piping without disturbing nearby installations.
• Compatible with copper, PEX, and other piping materials.

Product Highlights

This clamp is useful for various piping installations, offering flexibility in the adjustment and installation of pipes.

Product Information

Standard Information

• Material: Mild steel

Technical Specifications

• Pipe O.D.: 5/8 inches
• Design Load 1: 400 lb
• Design Load 2: 50 lb
• Design Load 3: 50 lb
• Operating Temperature [Min]: -65 degrees Fahrenheit
• Operating Temperature [Max]: 275 degrees Fahrenheit
• Box Quantity: 25
