Holdrite 601-20 Bracket 20 in

Product Description

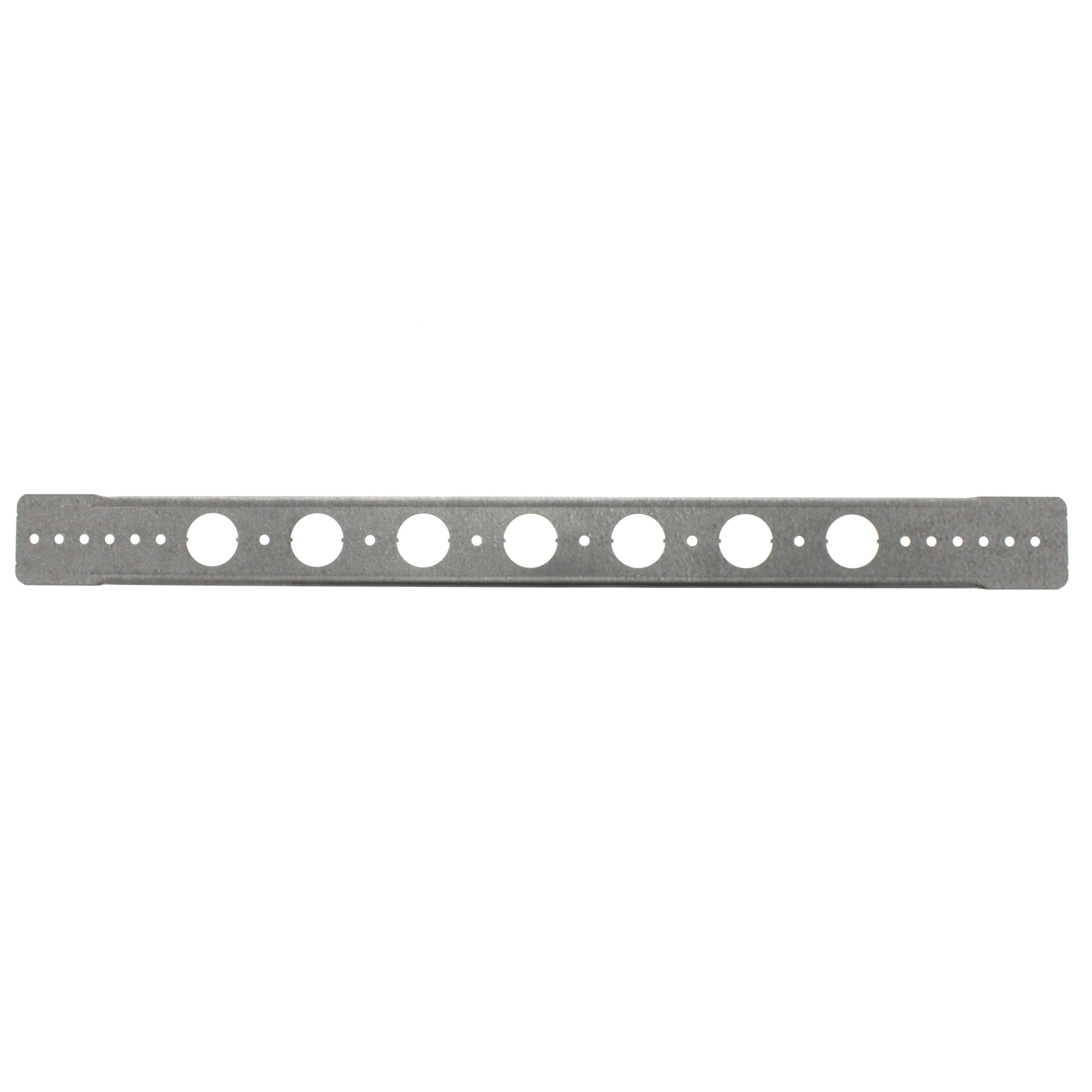

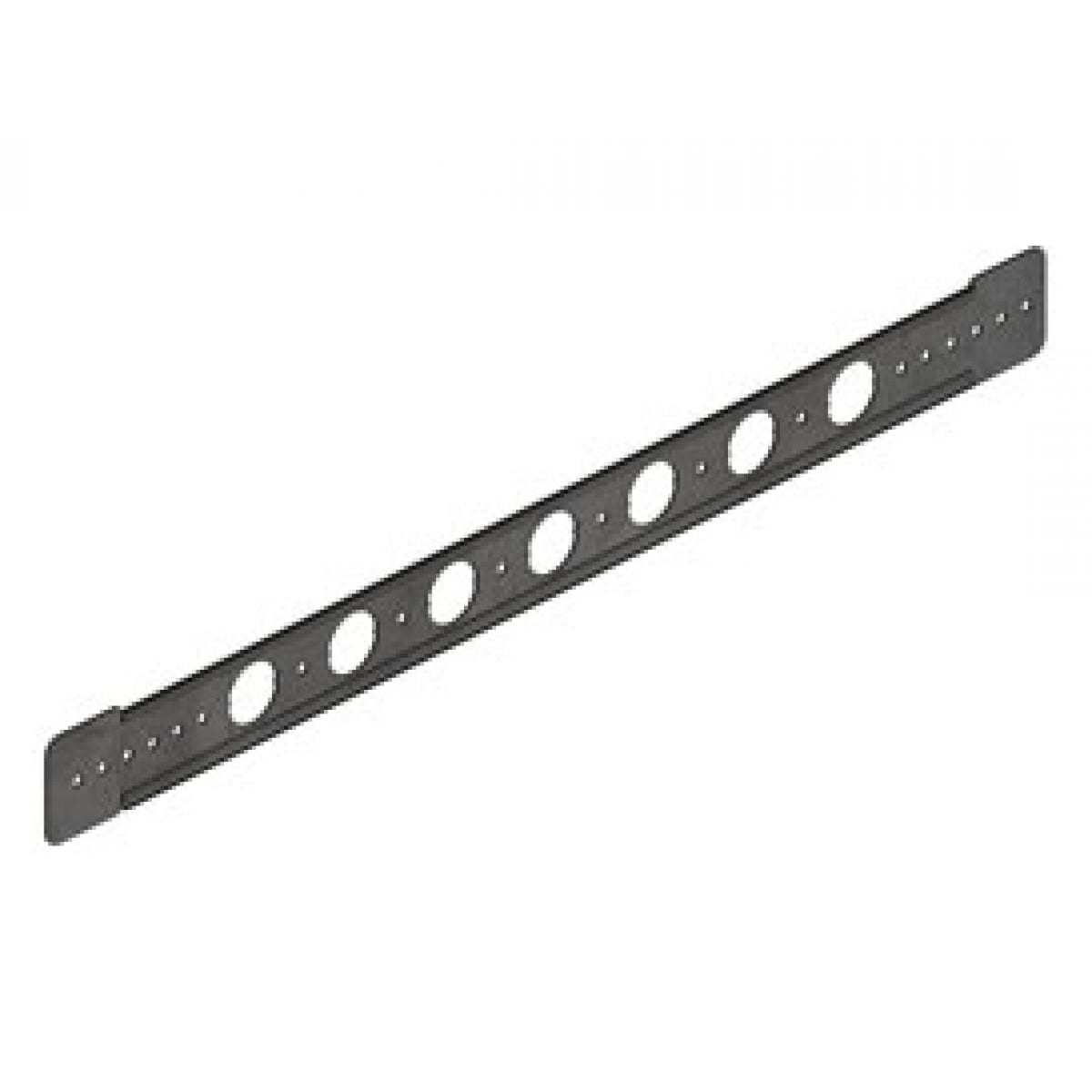

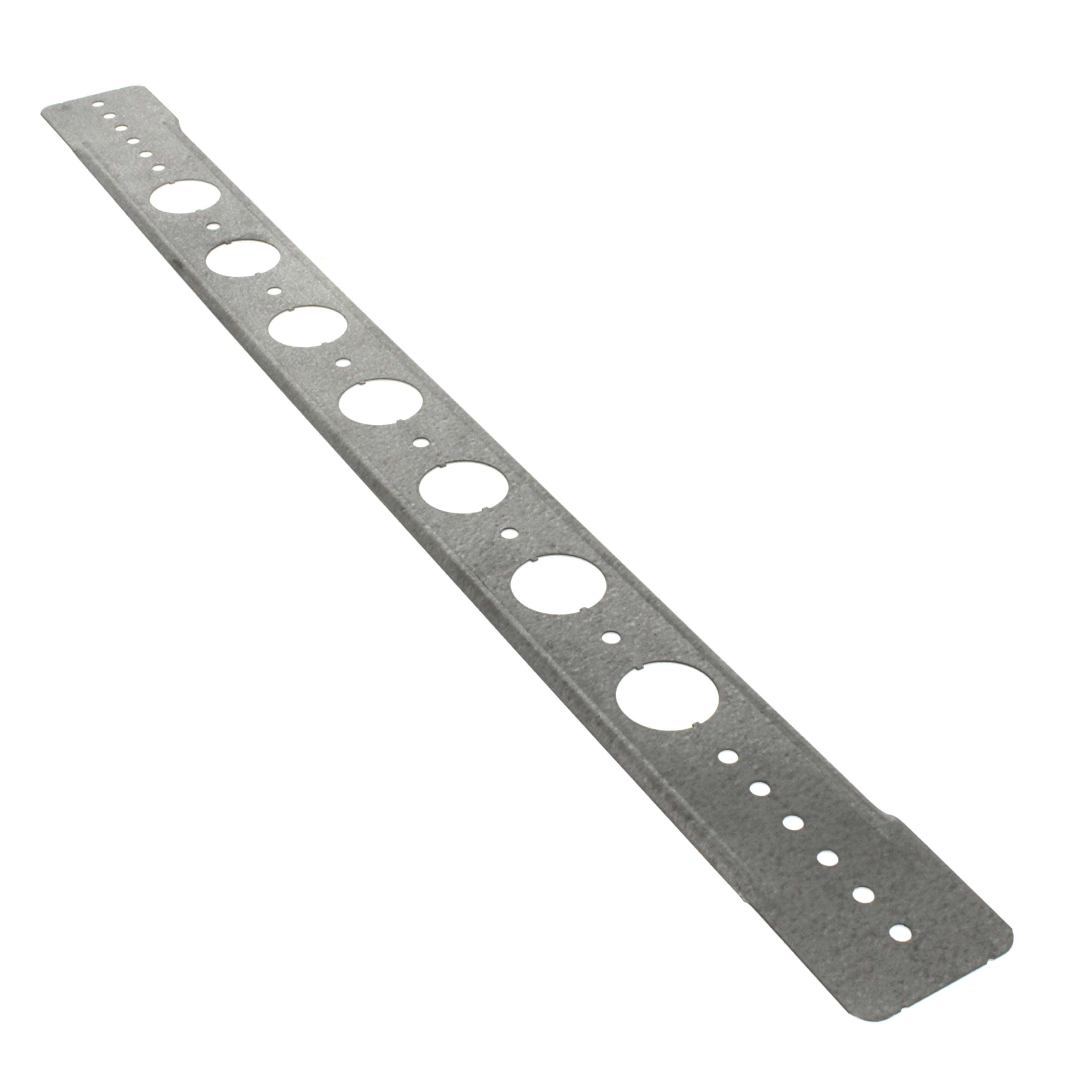

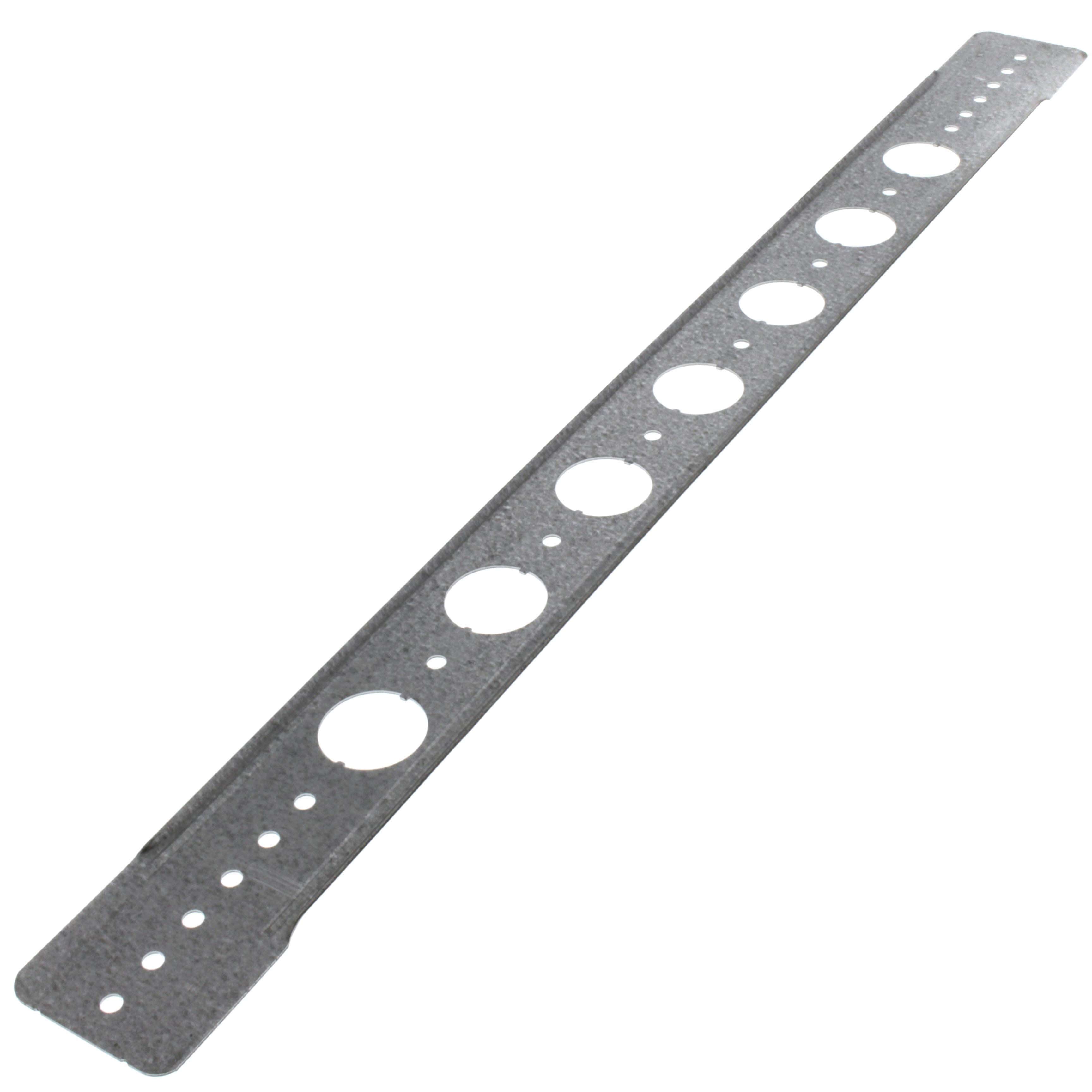

The HOLDRITE 601-20 is a 20-inch galvanized steel bracket designed to support CPVC piping. Rolled edges provide added strength. It works exclusively with glueable Holdrite #604 (1/2") or #605 (3/4") inserts. Inserts snap into brackets and is ideal for fixture stub-out supports at sinks, lavatories and toilets.

• Designed exclusively to support CPVC piping
• Rolled edges provide added strength
• Works exclusively with glueable Holdrite #604 (1/2") or #605 (3/4") inserts

Product Highlights

The HOLDRITE 601-20 galvanized steel bracket is ideal for CPVC tubing support and fixture stub-out supports.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 601-20
• Country of Origin: Domestic

Technical Specifications

• Type: Brackets
• Size [Features]: 1/2", 3/4"
• Length (Inches) [Features]: 20"
• Brand: Holdrite
• MPN: 601-20
• Category: Bracket
• Material: Cold Rolled Steel
• Pipe Size: 1/2 IN, 3/4 IN CTS
• Length: 20 IN
• Load Capacity: 25 LB
• Industry Standards: UPC/IPC/IAPMO Certified
• Finish/Color: Galvanized
• Width: 1-3/4 IN
• Hole Center: 2 IN
• Hole Diameter: 1 IN
• Additional Sizes: 3/4 in. CTS
• Load Rating (lbs.): 25 lbs.
• Application: Drinking Fountains, Lavatory, Sinks, Toilet, Water Heaters
• Coating: Galvanized
• Collection: LockRite
• Color Finish Category: Silver Tones
• Color Finish Name: Silver
• FM Approved: No
• Fits Pipe Size: 1/2 in - 3/4 in
• Gauge (metal): 20
• IAPMO Listed: Yes
• UL Listed: No
• UPC: 671119106206
• Work Load Limit: 25
• Item Name: Bracket
• Hole Size: 1 in
• Manufacturer: RWC
• Manufacturer #: 601-20
• Domestic / Import: Domestic
• Thickness: 20 ga
