Holdrite 107-18 Copper Bonded Steel Bracket Cts Tubing

Product Description

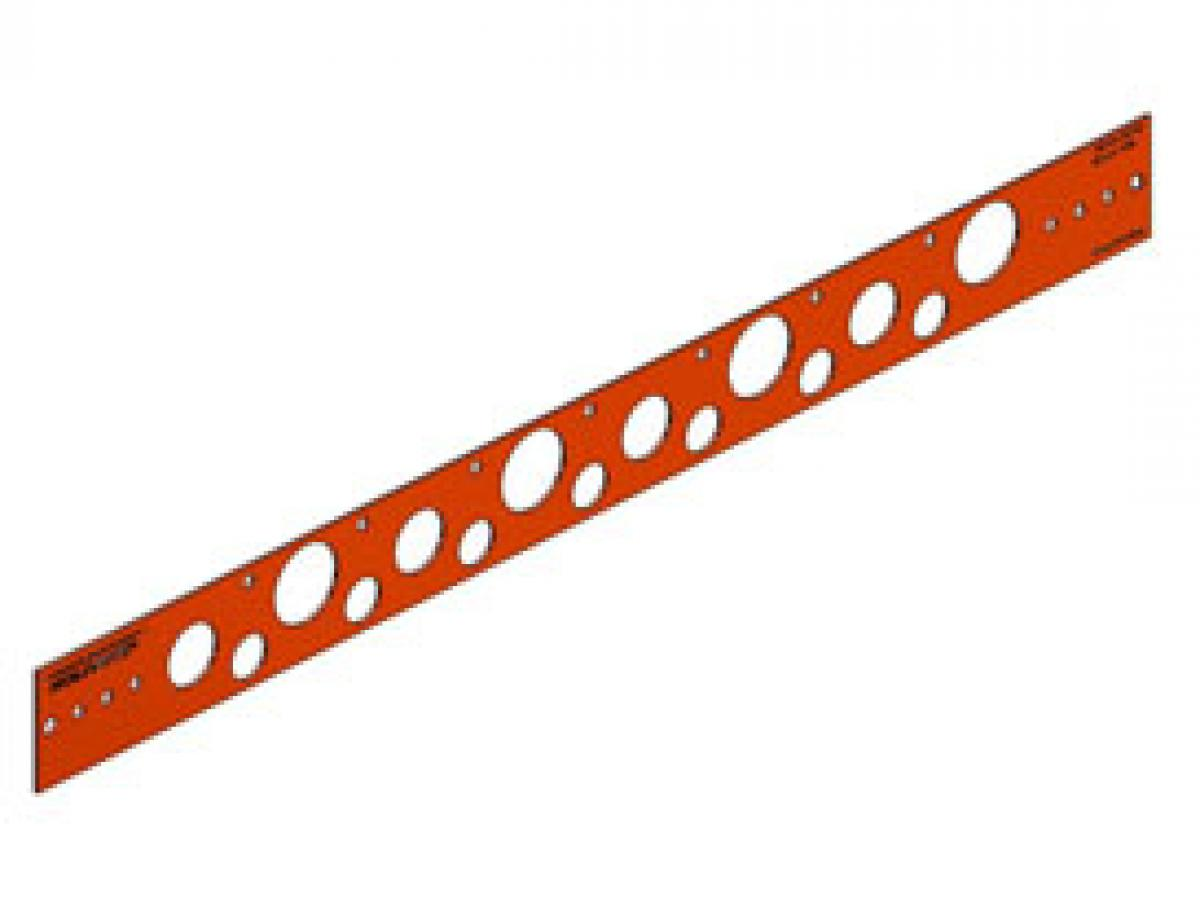

The HOLDRITE 107-18 is a copper-bonded steel bracket designed to support and position copper tubing in plumbing installations. The bracket measures 1-3/4 inches wide by 20 inches long and features pre-punched holes at two different center spacings to accommodate multiple tube sizes. Holes on 2-inch centers position 1/2-inch CTS copper tubing, while holes on 4-inch centers accommodate 3/4-inch and 1-inch CTS copper tubing. Licensed plumbers and pipe fitters install this bracket in residential and light commercial applications where copper tube runs require secure, code-compliant support.

This bracket is suited for use in residential and commercial plumbing rough-in work where copper water supply tubing must be fastened to structural framing, joists, or blocking. The single bracket handles three common tube sizes, reducing the need to stock multiple support types on the job site. Typical applications include domestic hot and cold water supply lines run through wood-frame construction.

Key Features

• Copper-bonded steel construction resists galvanic corrosion at the contact point between bracket and copper tubing
• Holes on 2-inch centers for 1/2-inch CTS copper tubing support
• Holes on 4-inch centers for 3/4-inch and 1-inch CTS copper tubing support
• Single bracket accommodates three standard copper tube sizes
• 1-3/4 inch by 20-inch profile fits standard framing layouts

Compatibility

Designed for use with 1/2-inch, 3/4-inch, and 1-inch CTS copper tubing in residential and light commercial plumbing systems.

Installation Notes

Install by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC) requirements for pipe support spacing. Shut off the water supply and depressurize the line before working on any live system. Fasten the bracket securely to structural framing using fasteners appropriate for the substrate. Do not overtighten fasteners in a way that deforms the bracket holes or compresses the tubing.

Technical Specifications

• Material: Copper-bonded steel
• Width: 1-3/4 inches
• Length: 20 inches
• Compatible Tube Sizes: 1/2 inch, 3/4 inch, 1 inch CTS
• Hole Spacing (1/2 inch tubing): 2-inch centers
• Hole Spacing (3/4 inch and 1 inch tubing): 4-inch centers

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 107-18
