Holdrite 103-26 Flat Pipe Support Bracket 26 Inch

Product Description

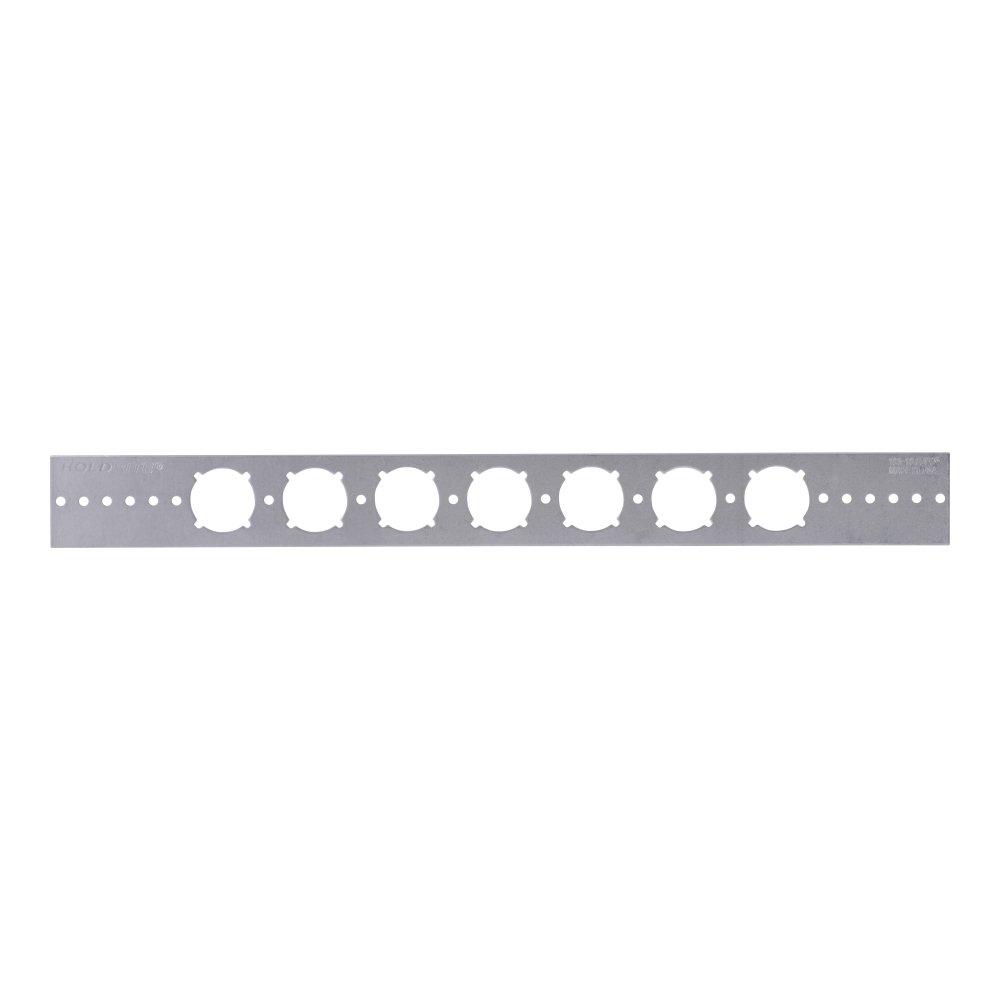

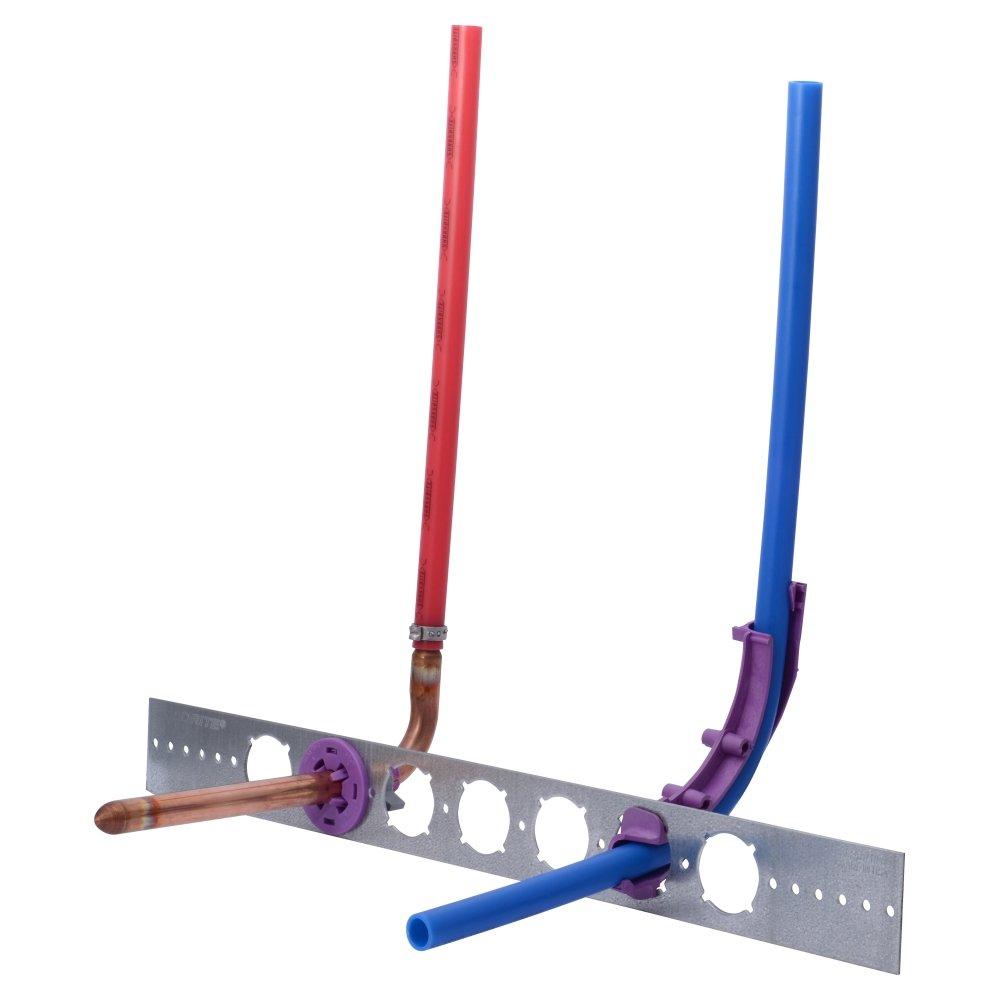

The HOLDRITE 103-26 is a flat pipe support bracket with an overall length of 26 inches. Constructed from 14-gauge galvanized steel, it features 1-3/8 inch keyed holes on 2-inch centers. This bracket supports 1/2, 3/4, or 1 inch copper or CPVC tubing and 3/8 or 1/2 inch PEX. It is ideal for sink, lavatory, and toilet plumbing solutions.

• Made of 14-gauge galvanized steel
• Features 1-3/8 inch keyed holes on 2 inch centers
• Supports various pipe sizes

Product Highlights

The HOLDRITE 103-26 is a versatile and durable solution for supporting plumbing pipes in residential and commercial applications.

Product Information

Standard Information

• Brand: HOLDRITE
• Manufacturer Part Number: 103-26
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UPC, IPC, IAPMO
• Application: Copper Tubing, Bathroom Sink, Toilet Plumbing Solution
• Brand: HOLDRITE
• Finish: Galvanized
• Hole/Slot Size: 1-3/8 Inch
• Load Rating: 25 Pound
• Material: Steel
• Number Of Holes/Slots: 10-Hole
• Overall Height: 2 Inch
• Overall Length: 26 Inch
• Product Sub-Type: Bracket
• Product Type: Fastening Hardware and Accessories
• Thickness: 14 Gauge
• Type: Flat
• MPN: 103-26
• Gauge: 14 ga
• Item Name: Bracket
• Nominal Size: 1/2 - 3/4 - 1 in CTS
• Size: 1/2 - 1 inch
• Maximum Load Capacity: 25 lb
• For Use With: For Toilet, Sink, Misc. Single Fixture Stub-Out, Lavatory, Drinking Fountain
• Item Type: Stub-Out Brackets
• Industry Standards/Certifications: UPC / IPC / IAPMO
• Coating: Galvanized
• Color Finish Category: Silver Tones
• Color Finish Name: Silver
• FM Approved: No
• Fits Pipe Size: 1-3/8 in
• IAPMO Listed: Yes
• UL Listed: No
• UPC: 671119103267
• Work Load Limit: 25
• Dimensions: 25-1/2 in L x 2 in W
• Domestic/Import: Domestic
• Hole Size: 1-3/8 in
