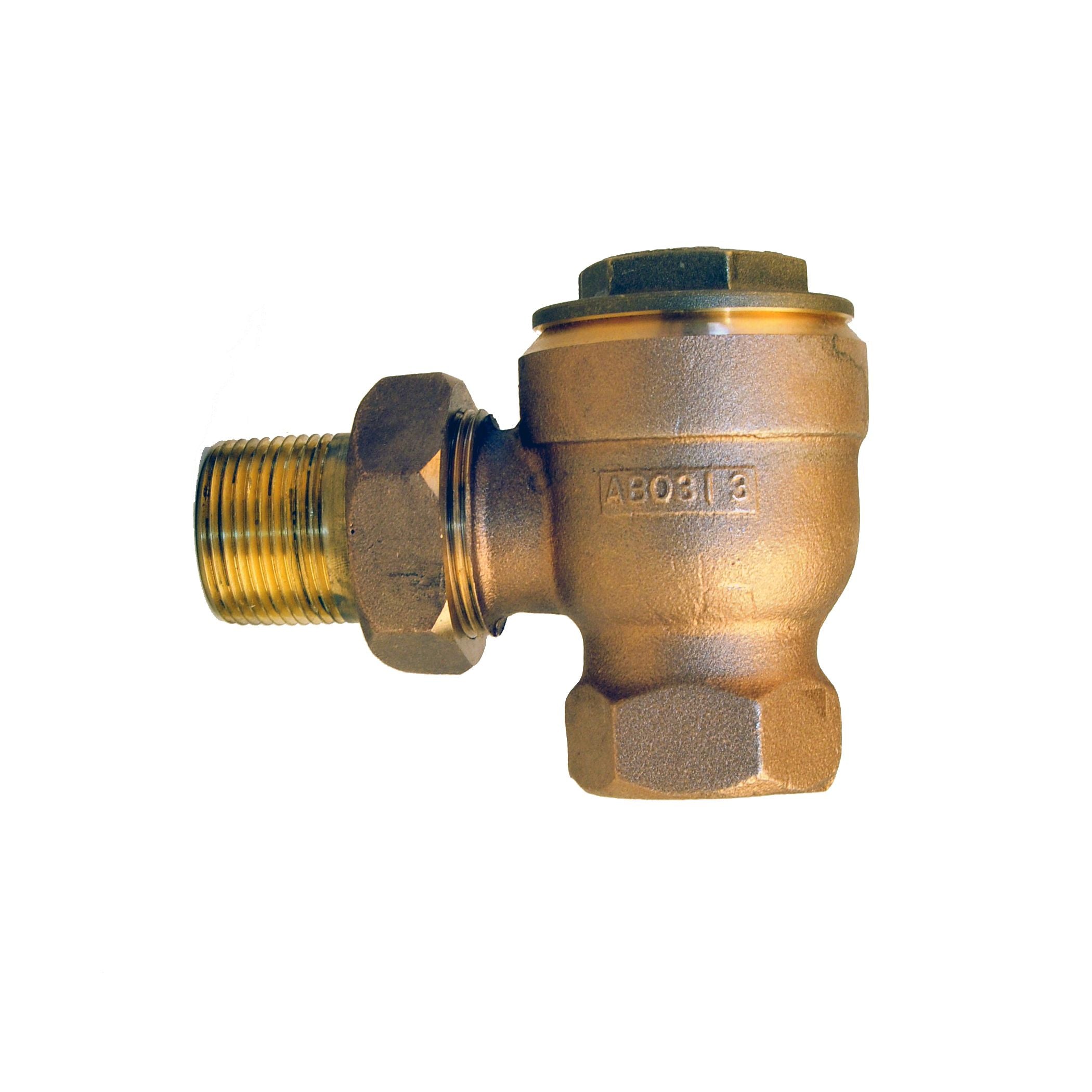

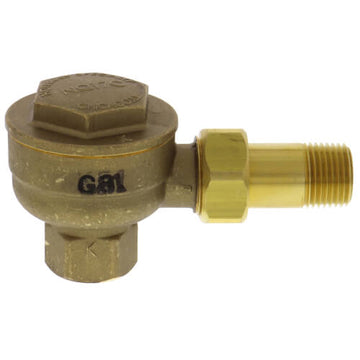

Hoffman Specialty 402005 | 9C-A-125 Steam Trap | 1 Angle

Product Description

The Hoffman Specialty 402005 9C-A-125 steam trap is a thermostatic model designed for efficient condensate drainage. This trap features a one-inch connection and is suitable for low pressure heating systems. The body is made from durable bronze and can operate at a maximum pressure of one hundred twenty-five psi. Its thermostatic element automatically opens or closes based on steam presence, ensuring optimal functionality. This model is essential for maintaining system performance and preventing water hammer.

• Thermostatic steam trap for low pressure systems
• One-inch angle connection
• Maximum pressure of one hundred twenty-five psi

Product Highlights

This steam trap ensures effective condensate drainage while preventing steam loss and maintaining heating efficiency.

Product Information

Standard Information

• MPN: 402005
• Brand: Hoffman Specialty

Technical Specifications

• Model: 9C-A-4-125
• Steam Trap Type: Thermostatic
• Body Material: Bronze
• Steam Trap Connection Size: 1 inch
• Steam Trap Mounting: Angle
• Max Pressure: 125 psi
• Weight: 2.33 lbs
