Hoffman PDS206 Solid Doors fits 2000x600mm

Product Description

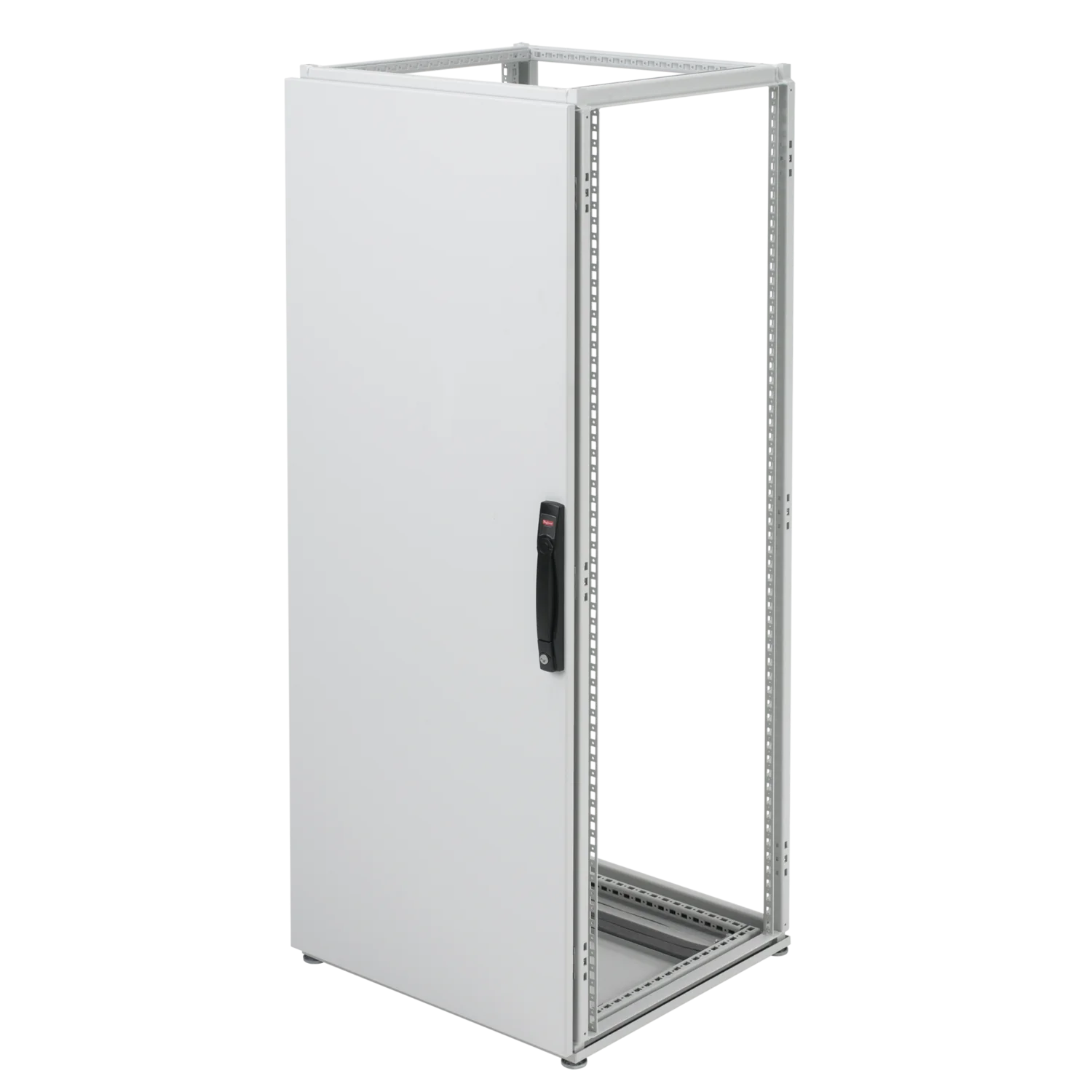

The HOFFMAN PDS206 solid doors include a removable door bar system on doors taller than 700 mm and wider than 400 mm. The hinge side is reversible. A flush bezel latch operates the 3-point latching system. Hidden hinges permit attachment to the front or back of each enclosure frame.

• EMC doors are finished with paint over plated surfaces
• Optional data pockets, door stops, grounding kits and 180-degree hinges are available
• Hinges have easy slide retained hinge pins

Product Highlights

Solid doors with a removable door bar system, reversible hinge side, and a flush bezel latch operating a 3-point latching system.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: PDS206
• Country of Origin: Mexico

Technical Specifications

• Article Number: 94950
• Material: Steel
• Color: Light Gray
• Color Code: RAL 7035
• Thickness: 1.52 mm
• Dimensions: 76.34 x 23.31in
• Door Type: Steel
• UPC: 783510949501
• Bulletin Number: P20
• IP/NEMA Rating: IP55
• Height: 76.340 in
• Width: 23.310 in
• Applications: Controls and Drives, Power Distribution
• Gauge: 16 AWG
• Size: fits 2000x600mm
• Type: Doors and Door Accessories
• Brand: nVent HOFFMAN
• Sub Brand: ProLine
• 12-Digit UPC: 783510949501
• Finish: Powder Coated
• MDM Pkg GTiN: 00783510949501
• Product UPC: 78351094950
• Used With: 2000 mm H x 600 mm W Frame
• Length: 79 Inch
• GTIN: 00783510949501
• UNSPSC: 39121334
• Country of Origin: Mexico
• Depth: 18 mm
• Door Handle: Flush Bezel
• Door Latching: 3-Point
• Series: P20
• Suitable For Use With: ProLine 2000 mm H x 600 mm W Frames
• BABA Compliant: No
• Door Finish: RAL 7035 Textured Light Gray Polyester Powder Painted
• Installation: Hidden Hinged, 130 Degree Swing
• Mounting Location: Front/Rear
• Door Size: 23.31 Inch Width x 76.34 Inch Height x 0.69 Inch Thickness
• Door Material: 16 Gauge Steel
• Frame/Cabinet Size: 600 Millimeter Width x 2000 Millimeter Height
